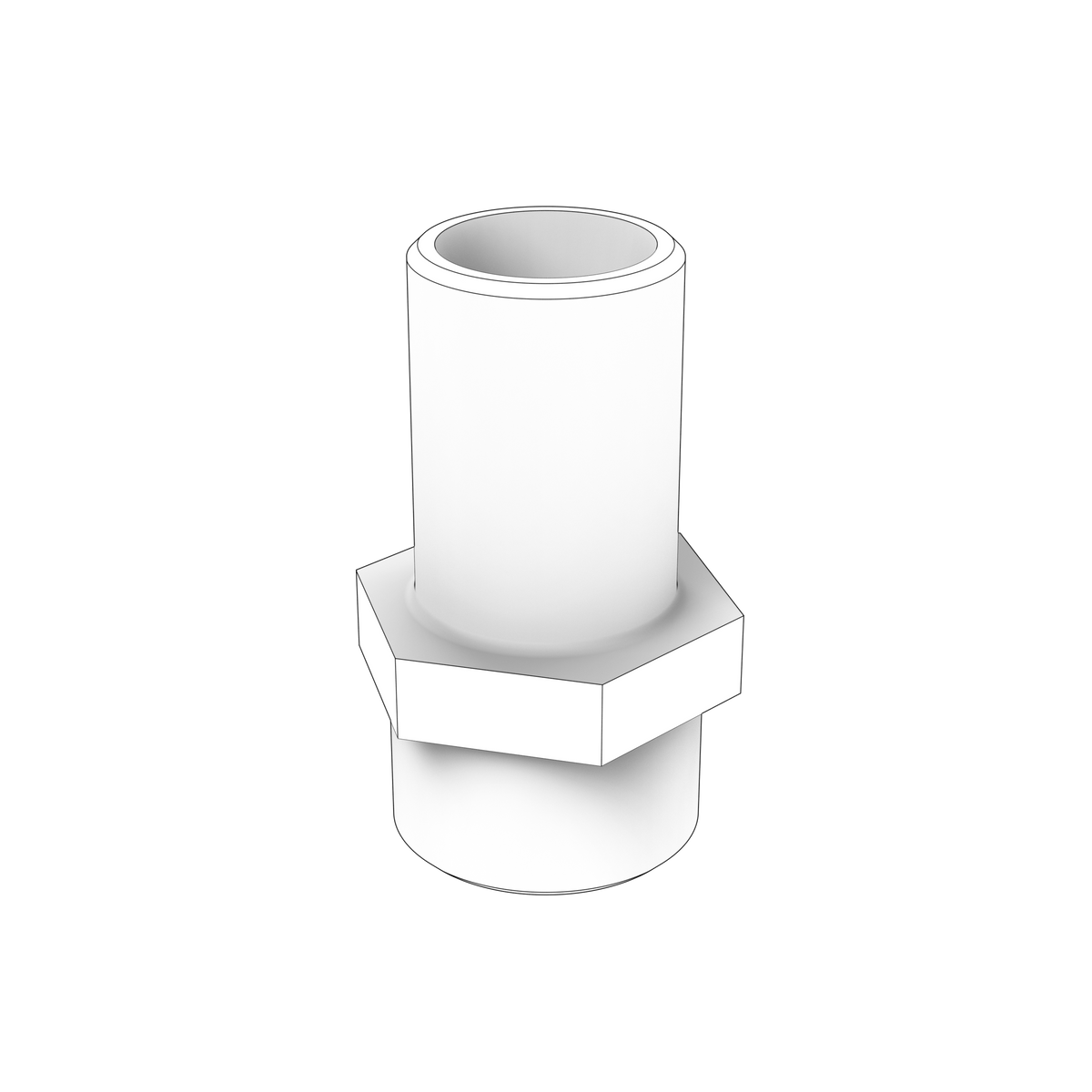

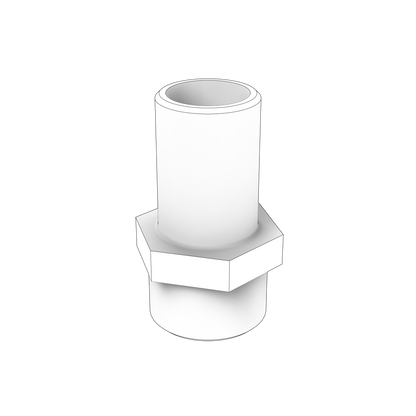

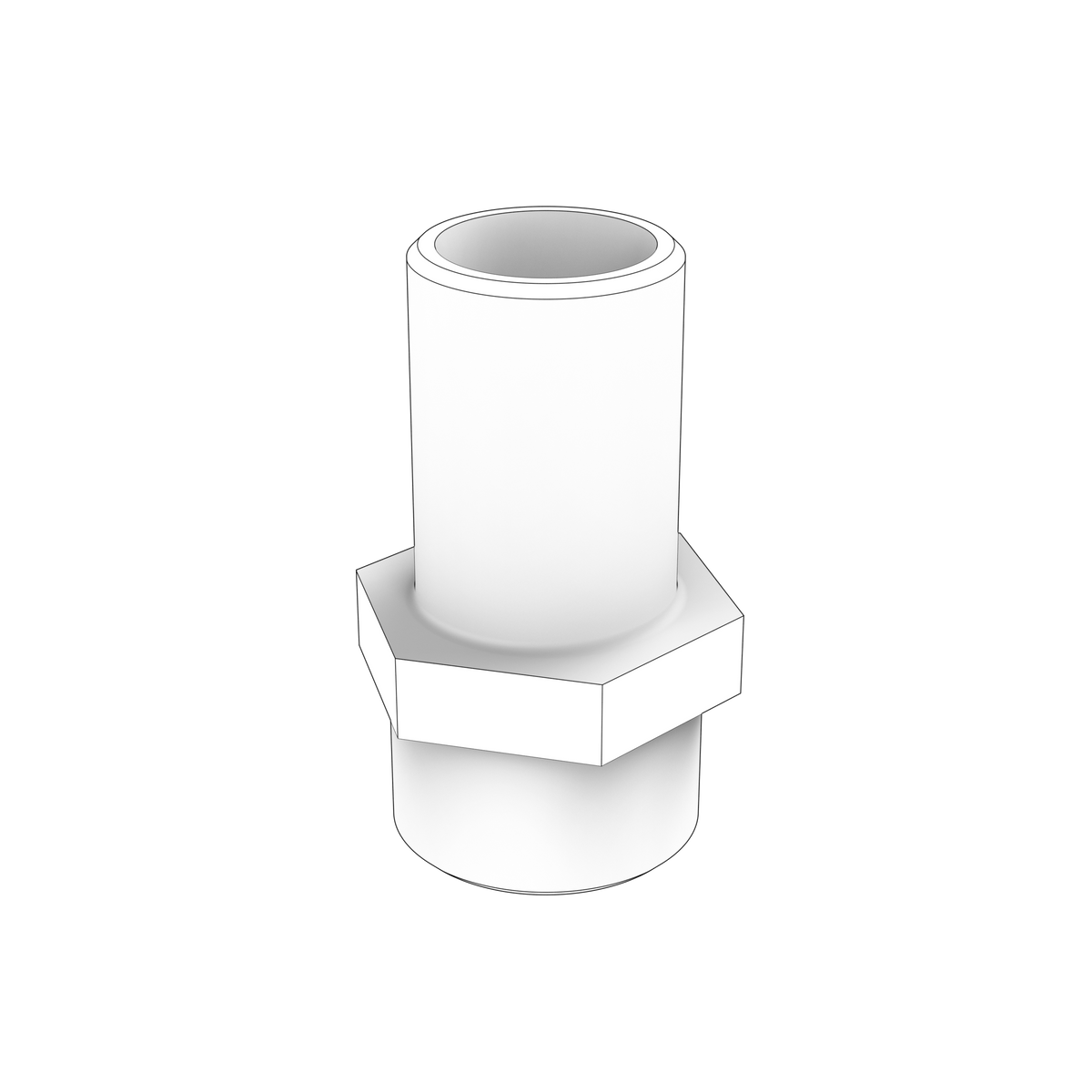

22478928 Check Valve | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta check valve from the Fuel System group, weighing 0.057 kg and listed for 25 D series engine applications. The valve permits flow in one direction only, so a leaking valve allows fuel to drain back and causes hard starting.

🚤 Compatibility

• Engine Family: D
• HP Range: 300-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 0.057 kg
• 25 D series engine applications
• Fuel System group

🔌 Function

Allows fuel to pass in one direction only, holding the line full so the system stays primed when the engine is stopped.

⚠️ Common Signs of Failure

• Long cranking to start after the engine has stood, then normal restarts while hot
• Loss of prime, with the lines found empty at the filter
• Air bubbles visible in the fuel line
• Rough or lumpy running for the first few seconds until the air is purged
• Fuel weeping around the valve body or its connections

🛠️ Service Notes

• Check the filter seals and line unions for an air leak before condemning the valve, since either gives the same symptoms
• Note the flow direction on removal and prime the system after fitting

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
