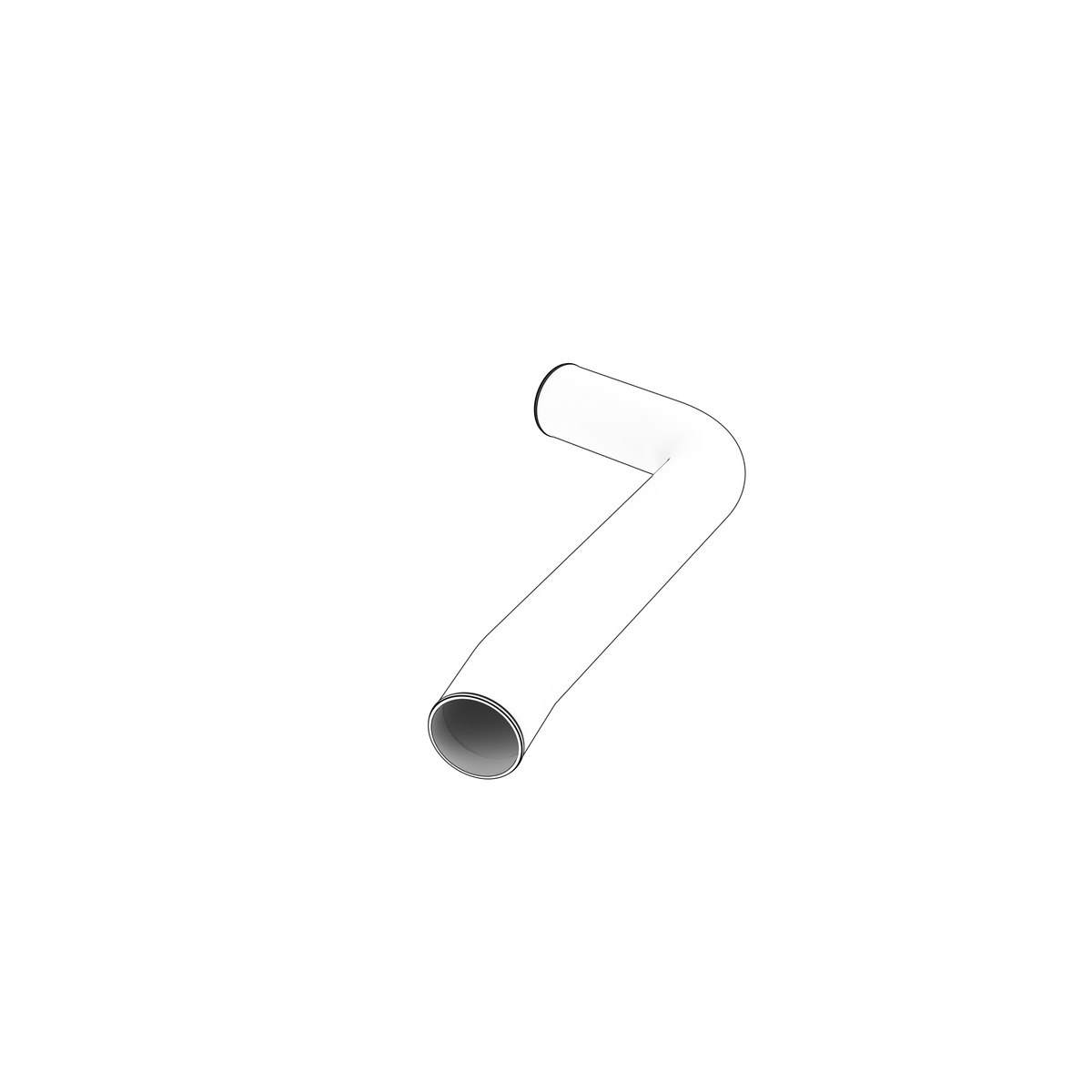

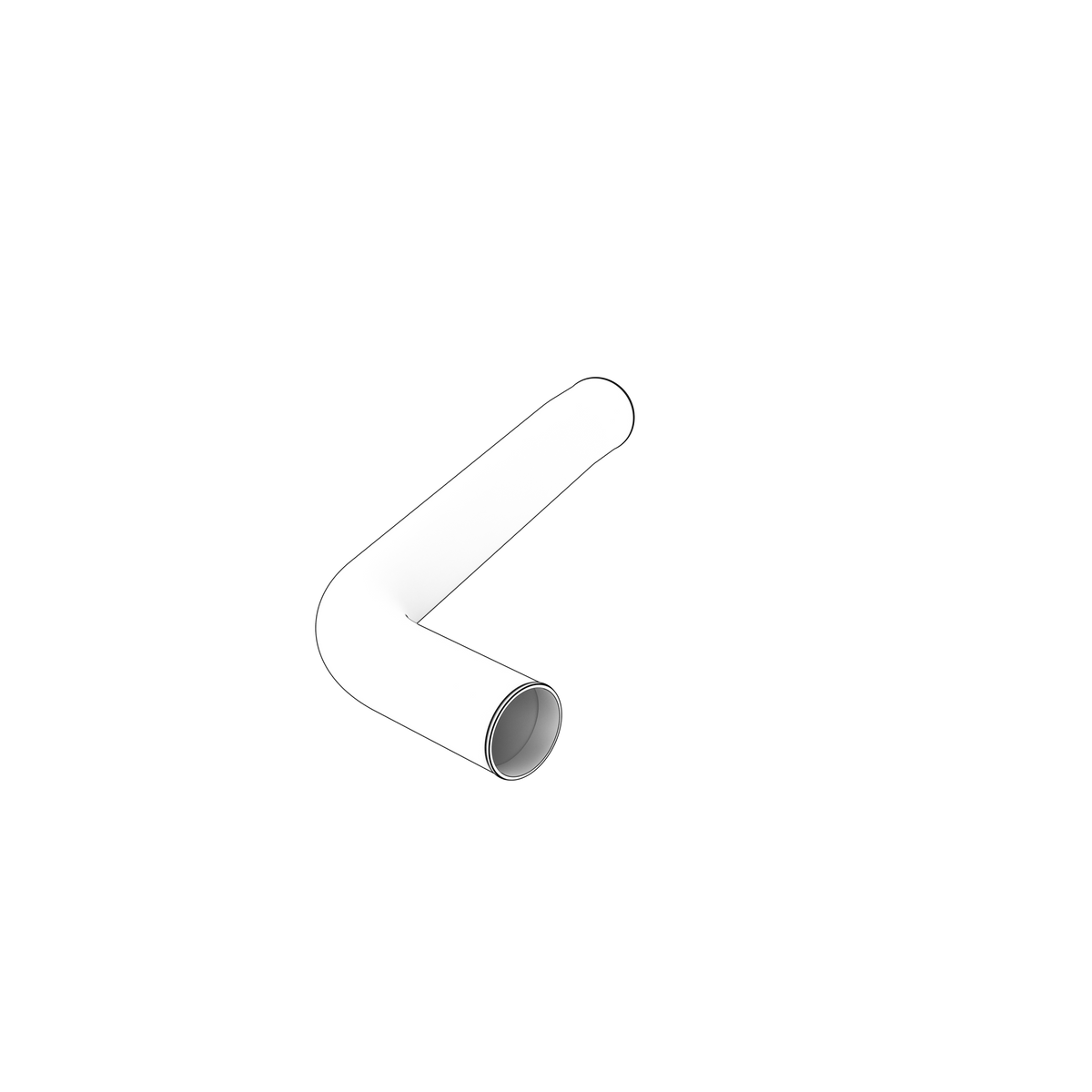

22494914 Charge Air Pipe | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta charge air pipe from the Cooling System group, weighing 1.769 kg and listed for 19 TAD series engine applications. It supersedes part number 22027470 and carries compressed intake air between the turbocharger and charge air cooler.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1650VE-B/51VE
• Volvo Penta TAD1643VE-B
• Volvo Penta TAD1640-42GE-B
• Volvo Penta TAD1640GE
• Volvo Penta TAD1640VE-B
• Volvo Penta TAD1641VE-B
• Volvo Penta TAD1642VE-B
• Volvo Penta TAD1641GE
• Volvo Penta TAD1642GE
• Volvo Penta TAD1641VE
• Volvo Penta TAD1642VE
• Volvo Penta TAD1643VE
• Volvo Penta TAD1650GE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1650VE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TAD1640-42VE-C

• Engine Family: TAD

⚙️ Key Features

• 1.769 kg
• 19 TAD series engine applications
• Supersedes 22027470
• Runs between turbocharger and charge air cooler

🔌 Function

Carries the hot compressed air leaving the turbocharger across to the charge air cooler, holding the boost pressure in over that run.

⚠️ Common Signs of Failure

• Power down and black smoke under load as boost escapes
• A hiss or whistle from the pipe run when the engine is worked
• Charge pressure fault codes or a boost reading below normal
• Oil pooling in the pipe or tracking from a joint
• The pipe cracked, chafed or corroded, or a joint face distorted

🛠️ Service Notes

• Renew the seals and clamps at both ends and check the mating faces are clean and true
• Oil inside the pipe points at the turbocharger rather than the pipe, so establish where it came from before refitting

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22494914 → Supersedes 22027470

OEM / Related Numbers

• 22027470 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
