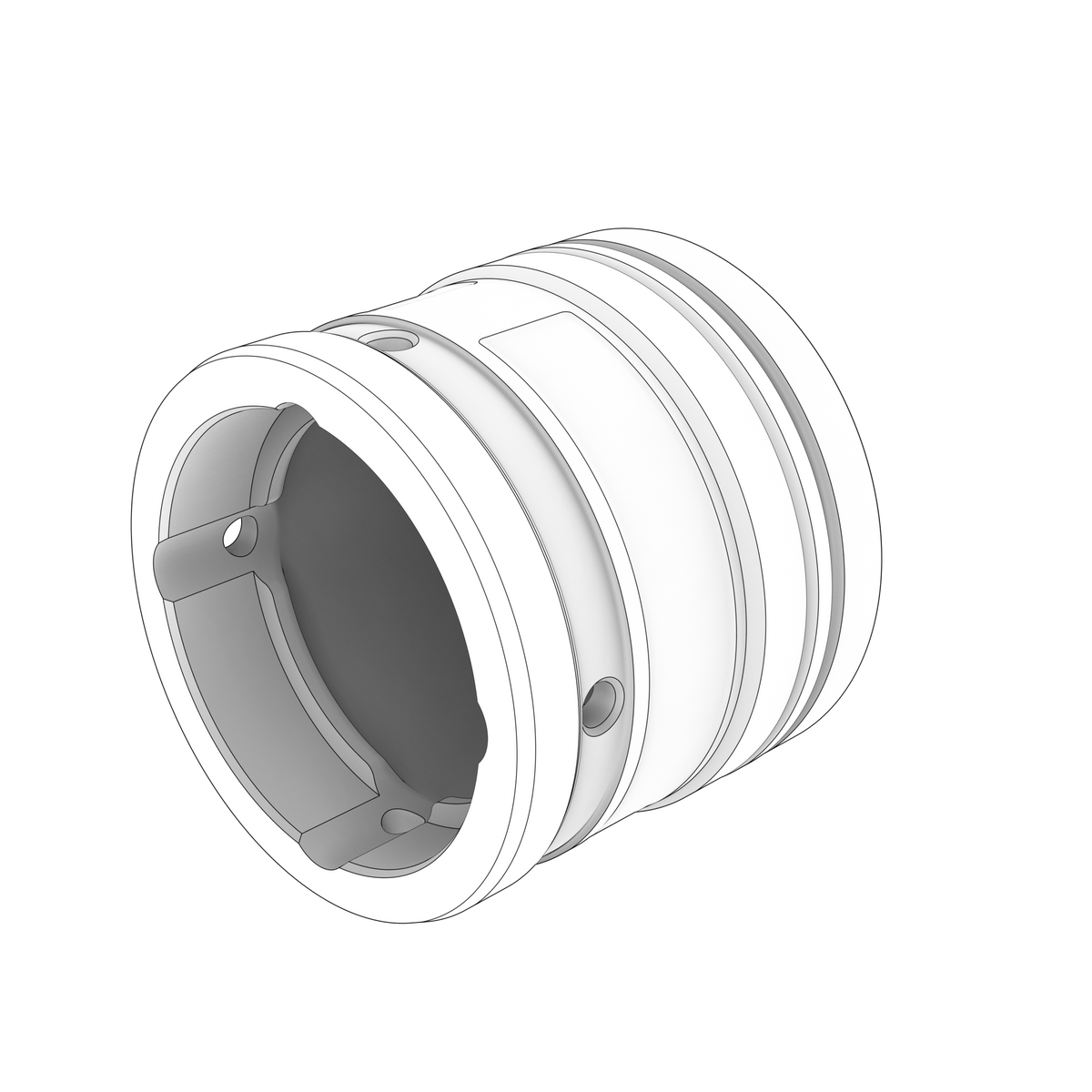

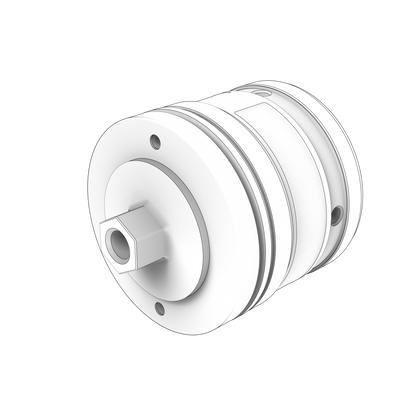

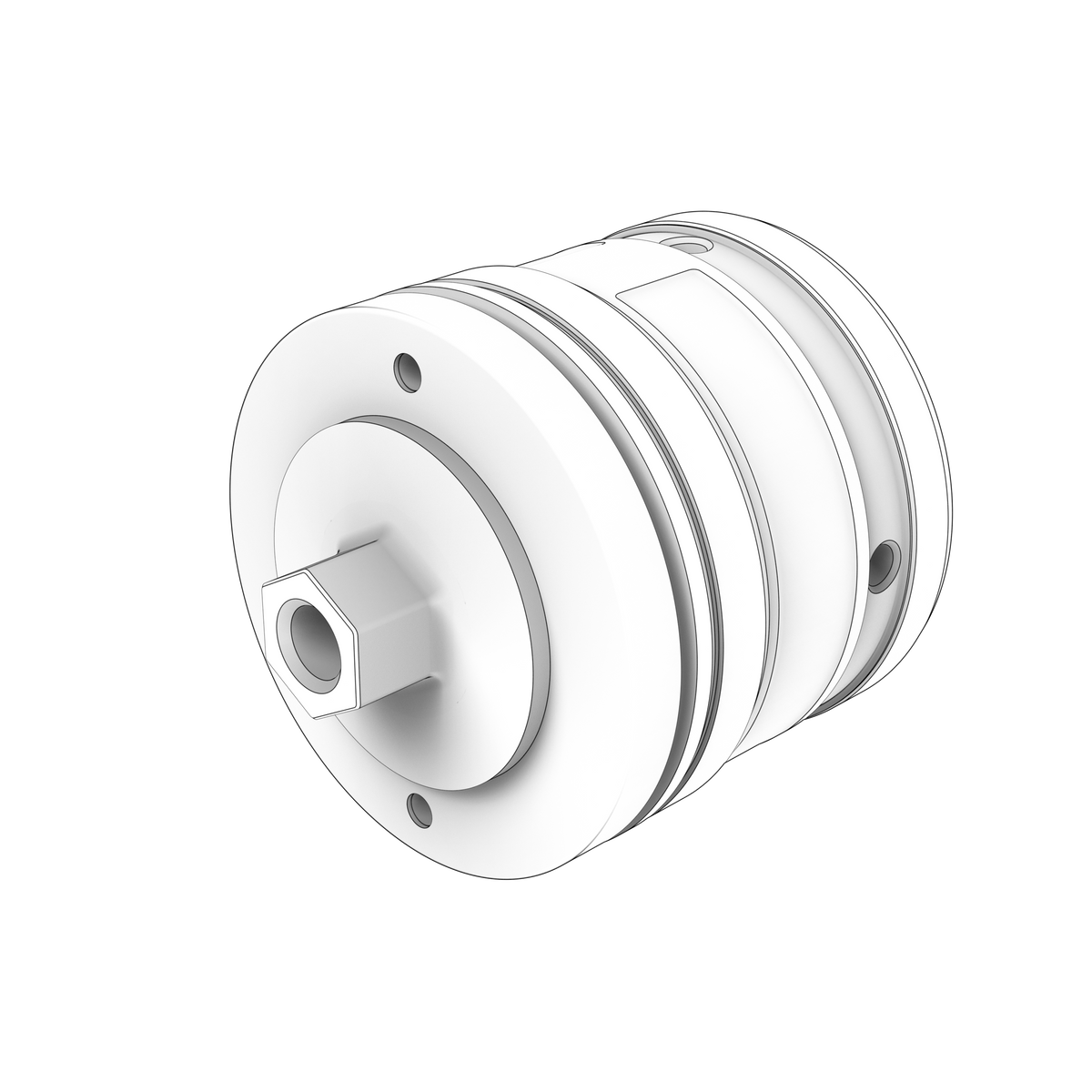

22517012 Bearing Carrier | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta bearing carrier from the Marine Propulsion group, weighing 0.841 kg and listed for 130 V and FWD series applications. The carrier holds the bearing in its correct position and alignment within the drive, so its bore condition governs bearing life.

🚤 Compatibility

• Engine Family: V, FWD
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• 0.841 kg
• 130 V and FWD series applications
• Marine Propulsion group

🔌 Function

Holds a bearing at the correct position and alignment inside the drive, carrying the load from the shaft into the housing.

⚠️ Common Signs of Failure

• Whine, growl or rumble from the drive that changes with speed
• Play or roughness felt at the shaft
• Bore worn, scored or picked up, so the bearing turns in its housing
• Metallic glitter or debris found in the drive oil
• Water in the oil where a seal in the carrier has failed

🛠️ Service Notes

• Renew the bearing, seals and O-rings at the same time as the carrier
• Check the shaft journal and the mating housing bore before assembly, since a new carrier on a worn shaft will not cure the noise

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-300-E-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-C-N, V6-200-CE-N, V6-240-C-M, V6-240-CE-M, V6-280-C-M, V6-280-CE-M, V6-280-CE-J, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-C-N, V6-240-CE-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-J, V6-280-CE-N, V6-200-C-M, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC, FWD-G, FWD-G TCC, FWD-G1, FWD-G1 TCC
