2254-1-7 Aftermarket Sendure Oil Cooler | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement High-Pressure Oil Cooler - Replaces Part Number: 2254-1-7

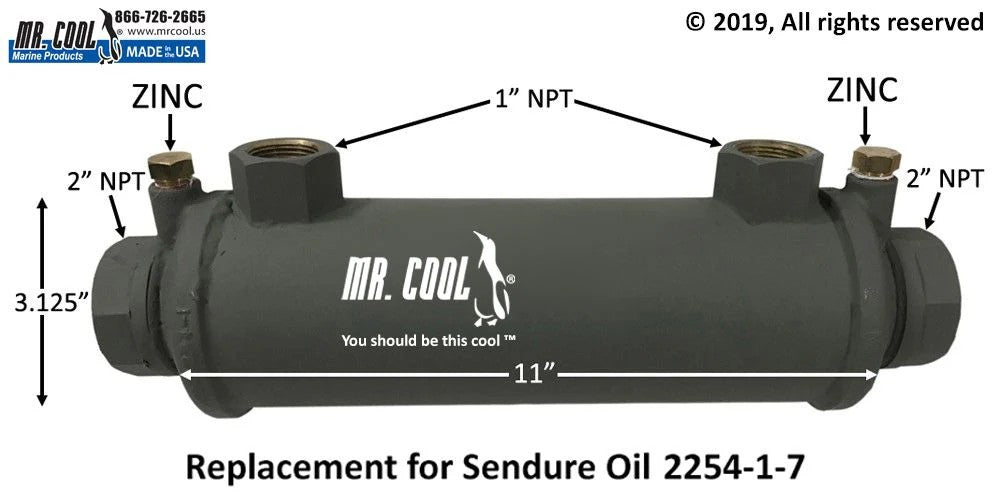

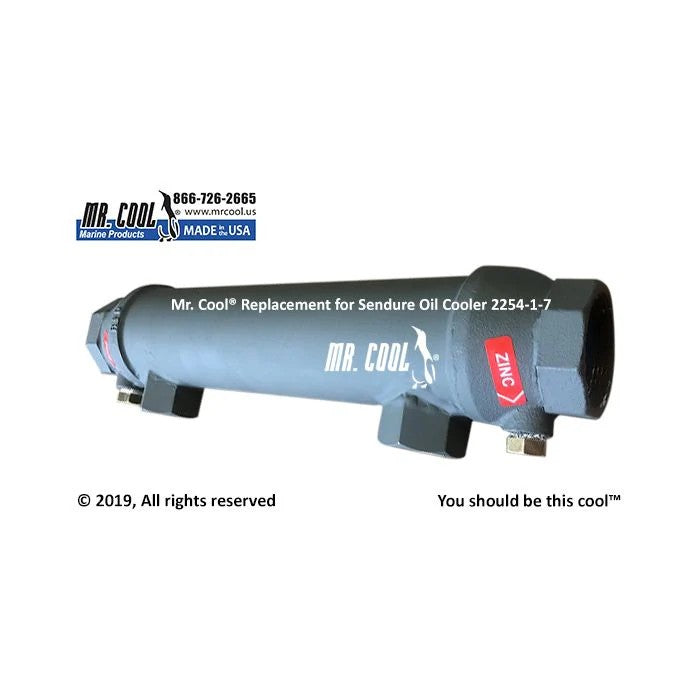

New high-pressure copper-nickel replacement for Sendure 2254-1-7. The cooler uses an approximately 3-inch shell with a 12-inch bundle and is intended for hydraulic or lubricating-oil circuits requiring a robust marine cooler.

⚙️ Key Features

• Direct replacement for Sendure 2254-1-7

• Approximately 3-inch diameter × 12-inch tube bundle

• Approximately 16.875-inch overall length

• Approximately 1-inch NPT oil and 2-inch NPT water connections

• Approximately 375psi oil-side rating with sacrificial-zinc protection

🧰 Kit / Assembly Contents

• 1 × Complete high-pressure oil cooler - P/N 2254-1-7

• 1 × Integrated copper-nickel tube bundle

• Sacrificial-zinc and drain provisions - fitted according to cooler configuration

• Pipe fittings and mounting brackets are renewed separately

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 2254-1-7 (Sendure OEM cooler reference)

OEM / Related Numbers:

• 2254-1-7CN

Aftermarket / Verified Equivalents:

• Sendure: 2254-1-7

• Lenco custom copper-nickel replacement matched to 2254-1-7

• Seakamp high-pressure replacement matched by dimensions and ports

🚤 Compatibility

Commonly used on:

• Marine hydraulic, engine-oil or transmission-oil systems originally fitted with Sendure 2254-1-7

Typically suits:

• Engine / Equipment models:

• Installations with one-inch NPT oil ports and two-inch NPT seawater ports

• Applications requiring the verified 3-inch × 12-inch Sendure configuration

• Output / Engine Rating: System rating is installation-dependent

• Engine / System Type: High-pressure marine oil circuit

• Year Range: Installation-dependent

• Serial / Model Identification: Confirm fluid type, pressure requirement, port threads and mounting length.

🔌 Function

The cooler transfers heat from lubricating oil into the raw-water circuit. Controlling oil temperature preserves viscosity, bearing protection and stable oil pressure during sustained load.

Common signs of failure:

• Lubricating-oil temperature rising above normal

• Low oil pressure after the engine reaches operating temperature

• Oil film in the raw-water discharge or coolant circuit

• Water-contaminated or milky lubricating oil

• External leakage, corrosion or failed pressure test

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
