22560747 Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta starboard-side three-inch-high exhaust riser installation kit for later V6 and V8 petrol engines.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP
• Year Range: Approximately 2012 onward

Full model list at the end of this description.

⚙️ Key Features

• Starboard-side high-rise configuration
• Approximately three inches taller than standard
• Riser 22104455 included
• Protects against water reversion
• Matched to port kit 22560743
• Engine type: Volvo Penta later-generation V6 / V8 petrol marine engine

📋 Kit Contents

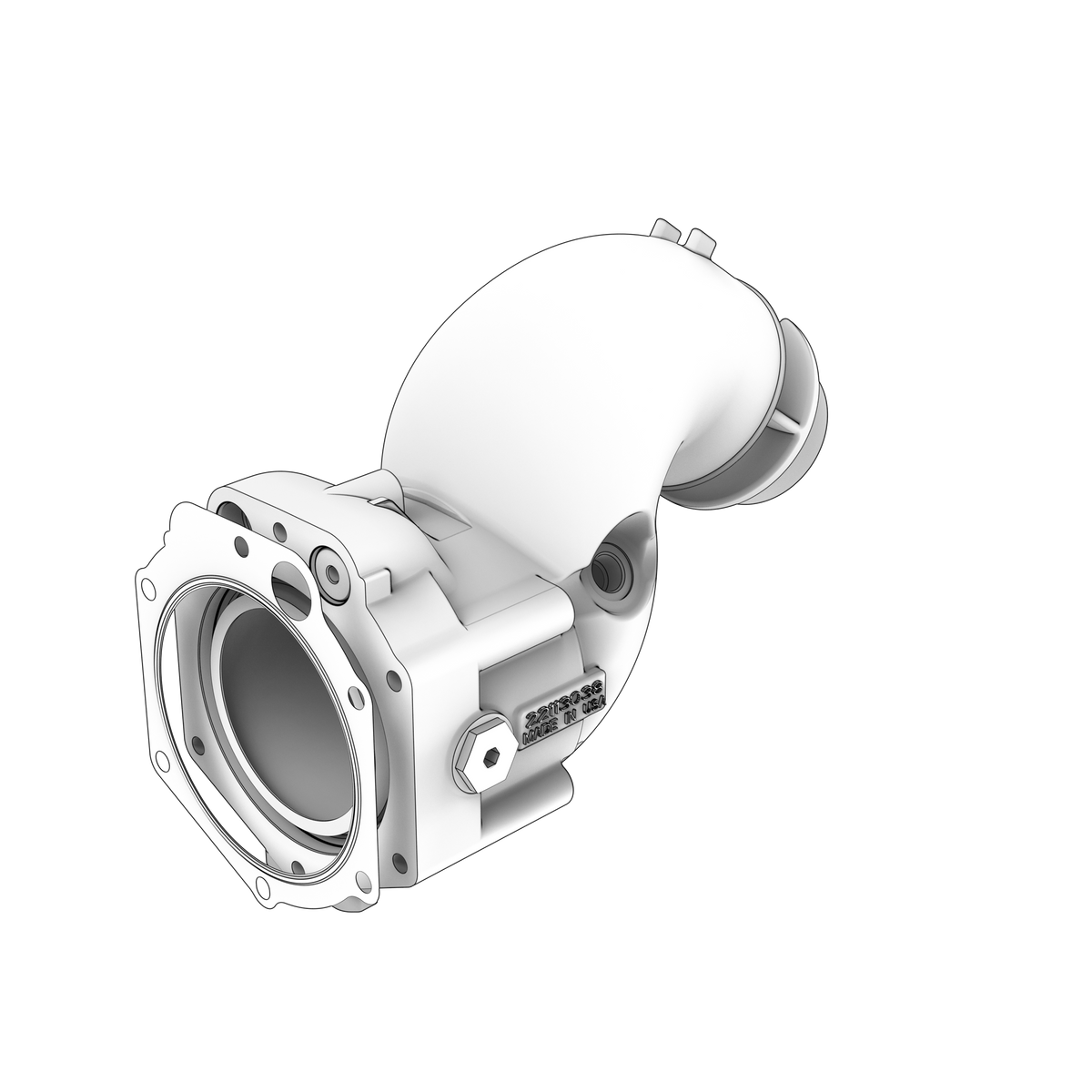

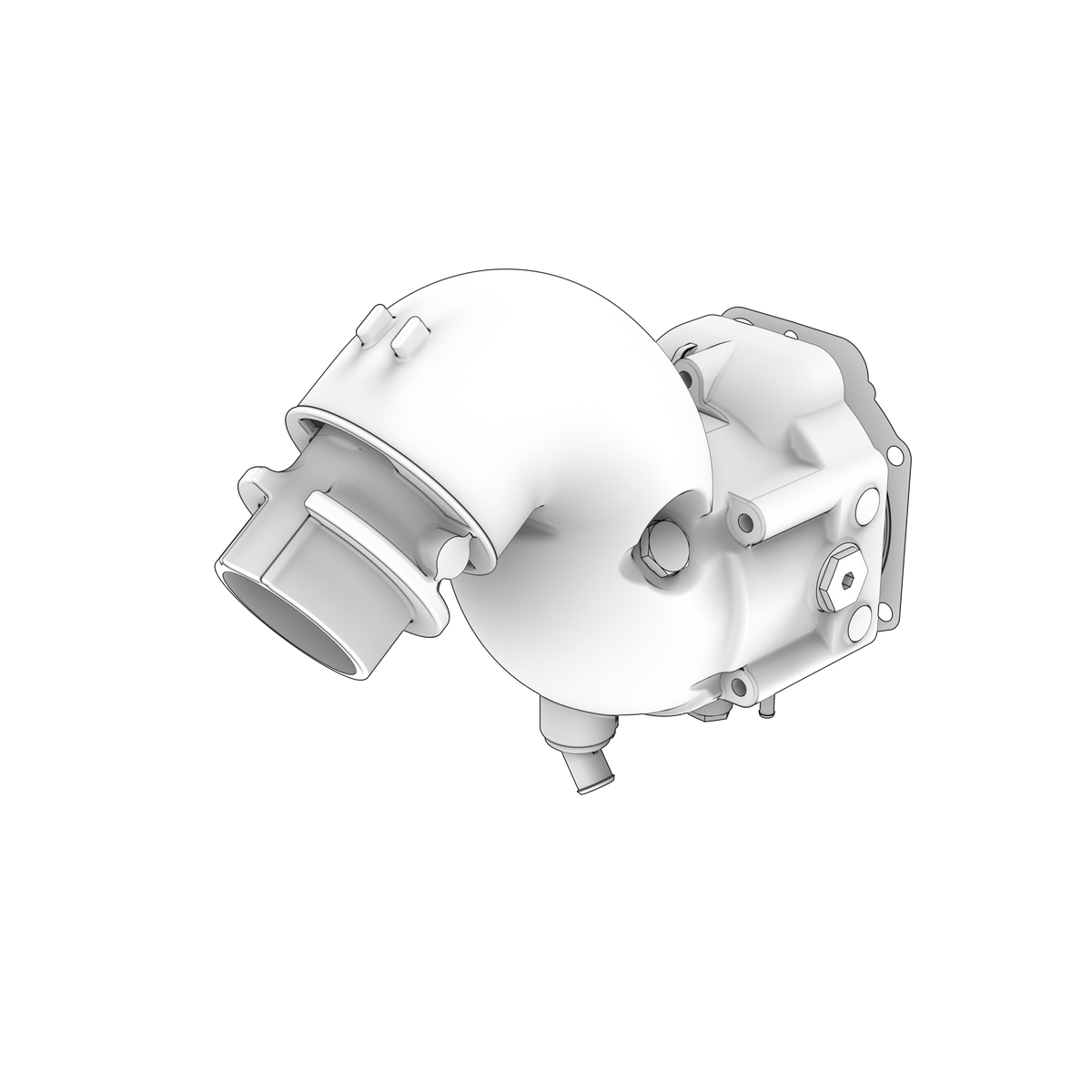

• 1 x starboard three-inch-high exhaust riser / elbow - Volvo Penta 22104455
• 3 x connectors - Volvo Penta 21399010
• 3 x O-rings - Volvo Penta 21249687
• 1 x plug - Volvo Penta 960632
• 1 x gasket - Volvo Penta 977751
• 1 x brass fitting - Volvo Penta 23136992, replacing 22375193
• 1 x fitting - Volvo Penta 23166907 or 22352676 according to revision
• 1 x bracket - Volvo Penta 22412619
• 1 x flange screw - Volvo Penta 984725
• 1 x exhaust-riser gasket - Volvo Penta 22029570
• 2 x O-rings - Volvo Penta 22238765

🔌 Function

The taller starboard riser raises the exhaust-water mixing point and routes exhaust safely to the wet-exhaust hose.

⚠️ Common Signs of Failure

• Additional riser height is required
• Riser is corroded or cracked
• Water reversion has occurred
• Internal water passages are restricted
• Starboard high-rise assembly requires replacement

🛠️ Service Notes

• Check the kit contents against the parts list for your engine before you start, and confirm it is the kit specified for your engine's serial number — kit contents change between engine versions
• Lay the contents out and identify every item against the assembly as it comes apart, so nothing is left over at the end
• Use all the new parts supplied and discard the old ones, even where an old item still looks serviceable; the kit is packaged as a complete replacement for what it covers
• While access is open, clean and inspect the mating parts that are not in the kit — new seals, gaskets or wearing parts fitted to a worn housing, shaft or face will not last
• Tighten, set and adjust to the figures given in the workshop manual for your engine, and renew any single-use fasteners or locking devices the kit provides

🔄 Supersession & Cross Reference

OEM Supersession Chain

• Related high-riser reference 22113038 appears in earlier service listings

OEM / Related Numbers

• 22560743 related reference
• 22104455 related reference
• 22113038 related reference
• 21399010 related reference
• 21249687 related reference
• 960632 related reference
• 977751 related reference
• 23136992 related reference
• 23166907 related reference
• 22412619 related reference
• 984725 related reference
• 22029570 related reference
• 22238765 related reference

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
