22567513 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

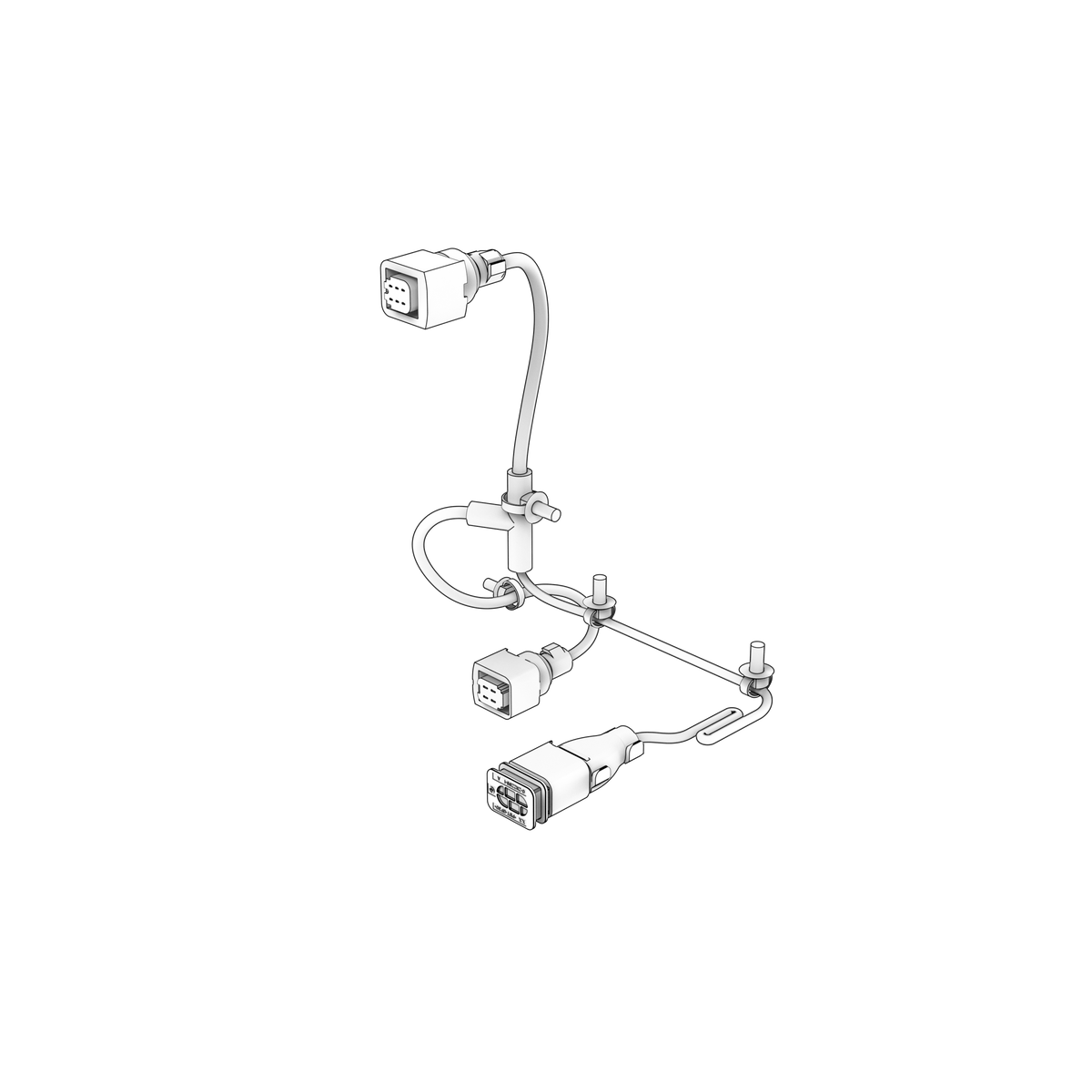

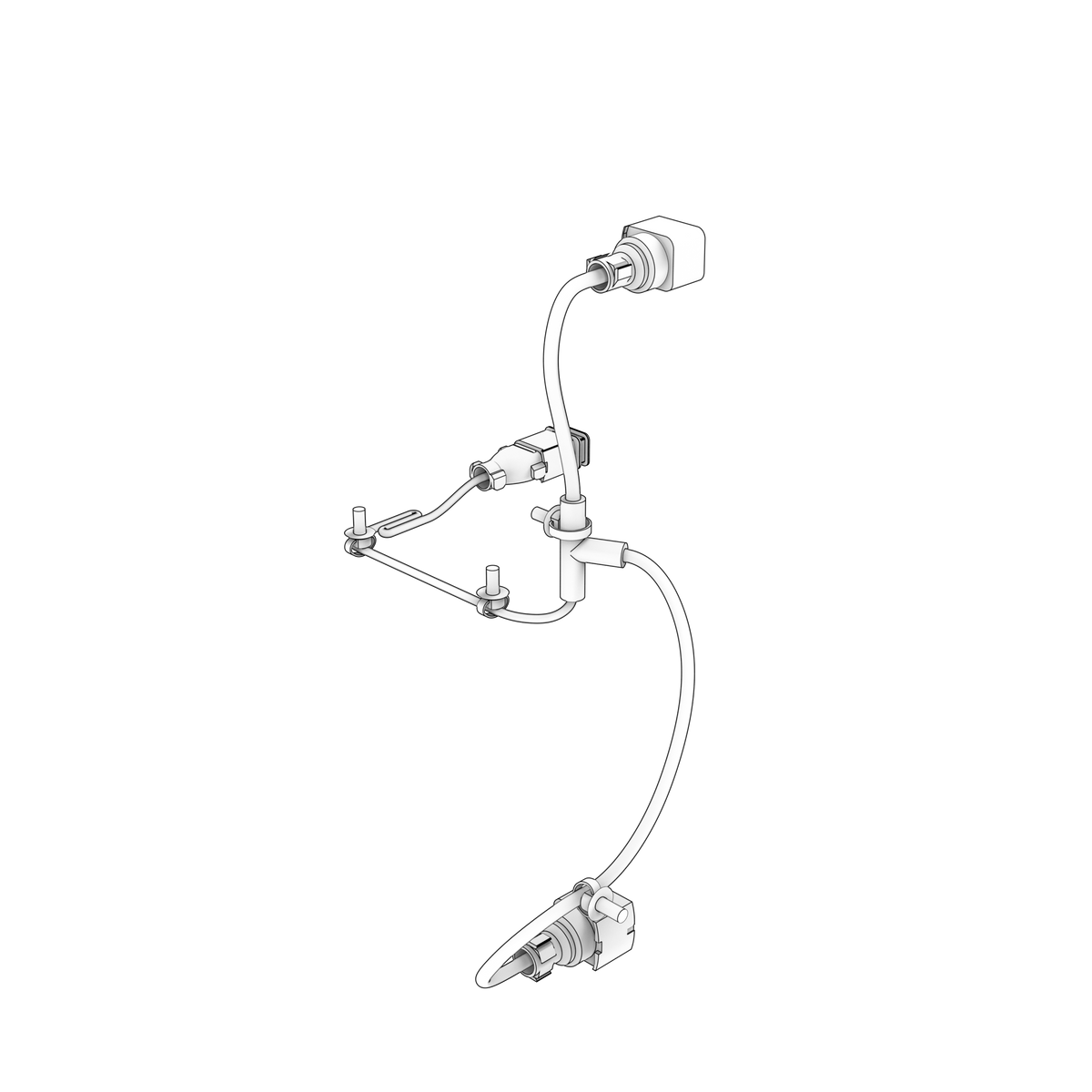

Genuine Volvo Penta pigtail wiring harness for the rail and coolant level circuits, weighing 0.138 kg and listed for eight D series engine applications. The pigtail is a short adaptor lead, so the circuit it serves is what identifies it.

🚤 Compatibility

Typically suits:

• Volvo Penta D8A5-A MH
• Volvo Penta D8A6-A MH
• Volvo Penta D8A5-A MG
• Volvo Penta D8A6-A MG
• Volvo Penta D8A1-A MP
• Volvo Penta D8A2-A MP
• Volvo Penta D8A3-A MP
• Volvo Penta D8A4-A MP

• Engine Family: D

⚙️ Key Features

• Pigtail for the rail and coolant level circuits
• Cables and Fuses group
• 0.138 kg
• Eight D series engine applications

🔌 Function

A short adaptor lead connecting the rail and coolant level circuits into the engine harness.

⚠️ Common Signs of Failure

• Intermittent or missing rail or coolant level signal
• Fault codes for those circuits appearing and clearing on their own
• Connector pins corroded, green or pushed back in the housing
• Insulation chafed, cracked or heat-damaged
• The lead pulled at a crimp or its strain relief broken

🛠️ Service Notes

• Check the mating connector and its seal as well as the pigtail - corrosion is usually on both halves
• Route and support the lead clear of hot surfaces and chafe points when refitting

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
