22576994 Control Lever | Genuine Volvo Penta Part

🔧 Product Description

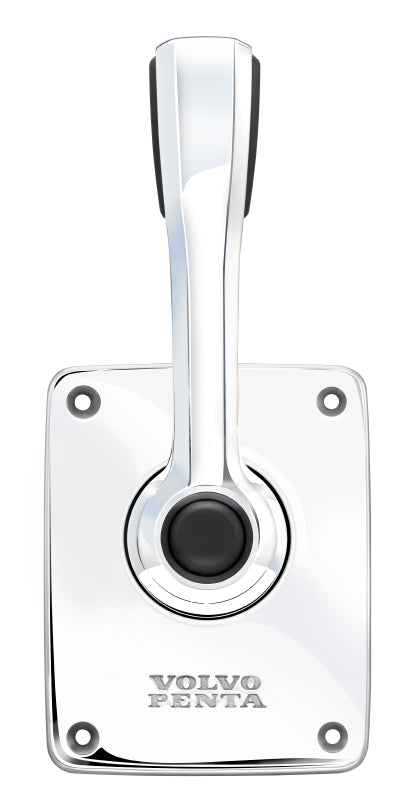

Genuine Volvo Penta stainless steel lever for the sailboat control, weighing 0.776 kg and listed for 12 D1 and D2 applications. It is the lever listed for upgrading a control that has the large 107 x 166 mm cover plate, where it is fitted with either the stainless steel plate 22167713 or the black plastic plate 853713. An installation with the small 100 x 121 mm plate is upgraded instead with 22688044, which is supplied as the lever and small cover together. It supersedes part number 22165757.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-40
• Volvo Penta D2-40B
• Volvo Penta D2-40F
• Volvo Penta D1-30
• Volvo Penta D1-30B
• Volvo Penta D1-30F
• Volvo Penta D1-13
• Volvo Penta D1-13B
• Volvo Penta D1-13F
• Volvo Penta D1-20
• Volvo Penta D1-20B
• Volvo Penta D1-20F

• Engine Family: D
• HP Range: 13-40 HP

⚙️ Key Features

• Stainless steel lever for the sailboat control
• For upgrading a control with the large 107 x 166 mm cover plate
• 0.776 kg
• 12 D1 and D2 applications
• Supersedes 22165757, catalogued earlier as a control lever
• The small 100 x 121 mm plate upgrade is 22688044, lever and cover together
• Lever only, stainless steel
• Listed in the upgrade route for the large 107 x 166 mm cover plate
• Designed to minimise the risk of rope entanglement
• Tough and robust, made for the harsh marine environment
• High quality stainless steel
• Splash protected installation
• Reliable and proven mechanism with adjustable friction brake
• Mechanism can be mounted horizontally or vertically
• Neutral safety switch available as an option
• Fits: Volvo Penta mechanical sailboat control upgrades from the large 107 x 166 mm cover plate

🔌 Function

Gives the helmsman the mechanical input to the sailboat control, moving through its arc to command gear and throttle.

⚠️ Common Signs of Failure

• Lever loose or with play at the pivot
• Stiff or notchy movement through the arc
• Friction or detent feel lost, so the lever creeps under vibration
• Pitting or staining on the stainless surface
• Clamp or set screw slipping on the shaft under load

🛠️ Service Notes

• Measure the existing cover plate before ordering - the large plate is 107 x 166 mm and the small one 100 x 121 mm, and they take different upgrade parts
• If the existing control mechanism is in good condition it does not have to be replaced, but keeping it means minor modifications to fit the new stainless steel cover plate, which the installation instructions detail
• Check the control cables and their end fittings while the unit is apart, since a stiff lever is often the cable rather than the control
• The large stainless steel cover plate 22167713 is a separate order
• Minor modifications to a retained control mechanism may be needed to fit the new stainless steel cover plate, as detailed in the supplied installation instructions

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22576994 → Supersedes 22165757

OEM / Related Numbers

• 22165757 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
