22584711 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

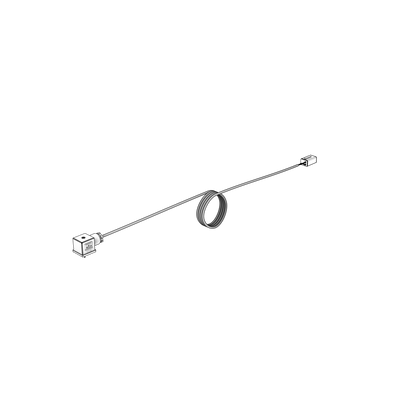

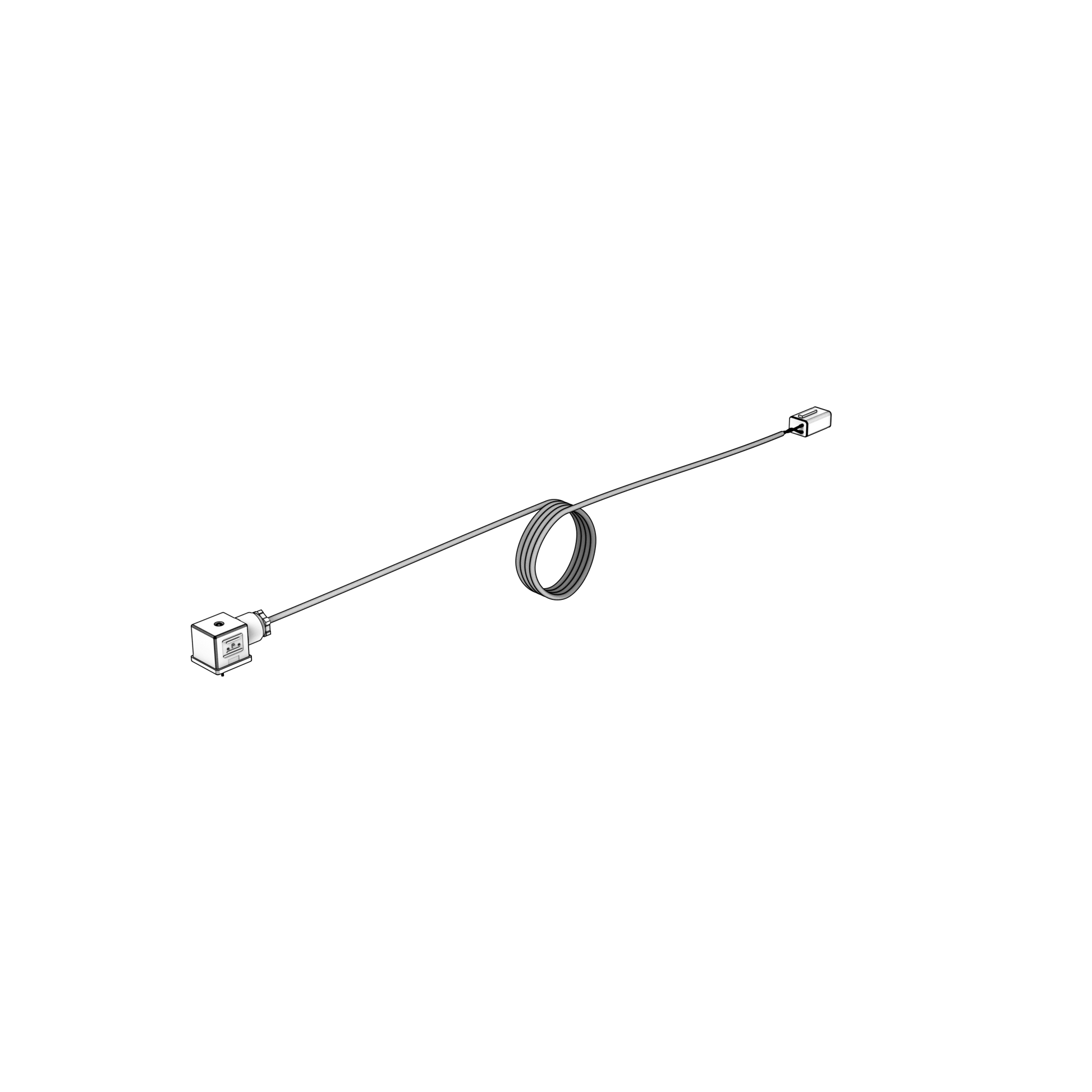

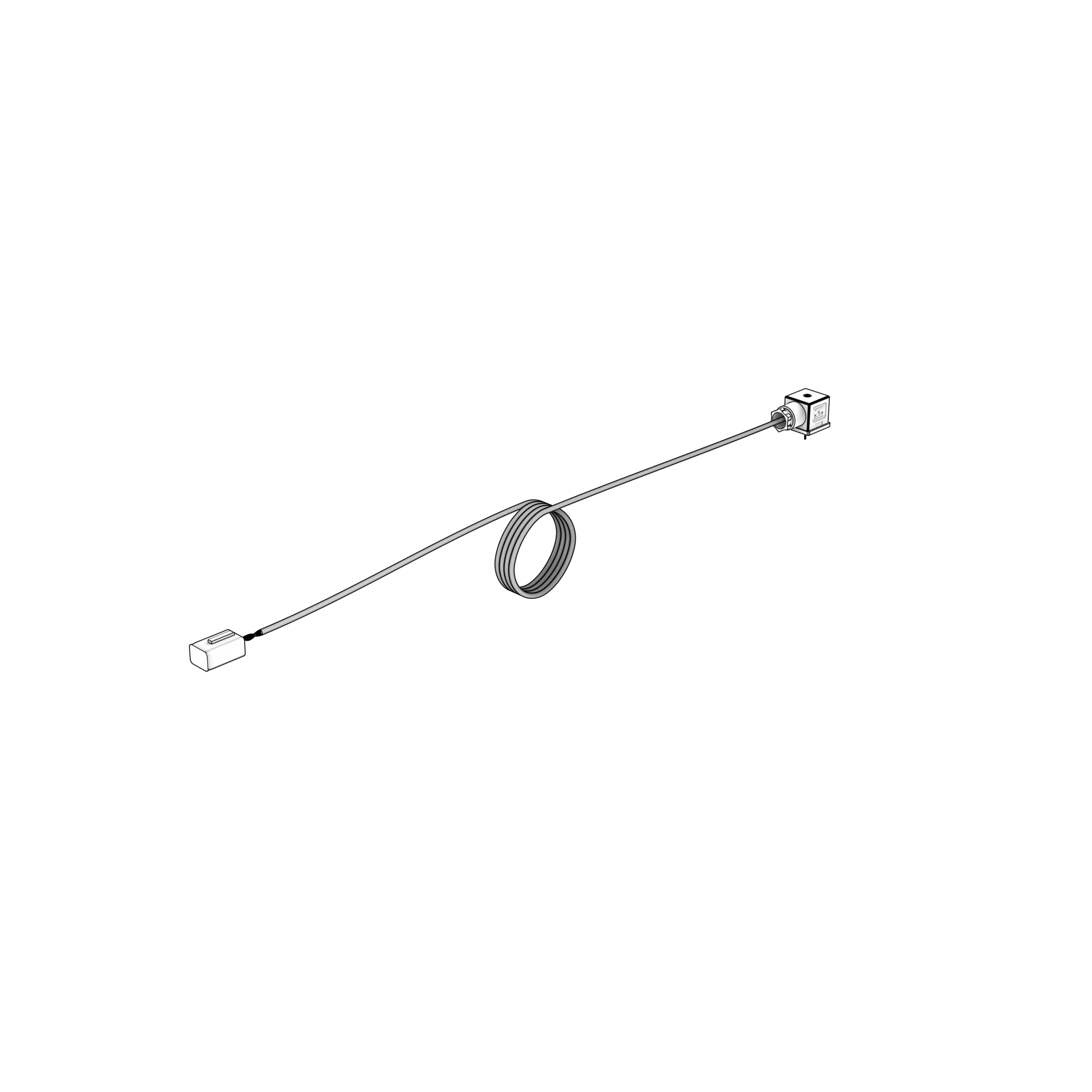

Genuine Volvo Penta extension cable for the reverse gear oil pressure circuit, 1400 mm long and weighing 0.107 kg, listed for 22 D series applications. The 1400 mm length and the specific circuit together identify it.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Extension cable, 1400 mm long
• Reverse gear oil pressure circuit
• 0.107 kg
• 22 D series applications
• L=1400mm (Volvo assembly listing)

🔌 Function

Extends the reverse gear oil pressure circuit between the sender and the instrument or control system it feeds.

⚠️ Common Signs of Failure

• Gauge or alarm reading intermittently or not at all
• Reading that changes when the loom is moved
• Connector pins green or corroded
• Insulation chafed where the cable passes a bracket or edge
• Connector locking tab broken, so it backs off in service

🛠️ Service Notes

• Measure the run before ordering - the 1400 mm length is what identifies this cable
• Support the cable clear of hot and moving parts and push the connectors home until they latch

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta D16C-A MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
