22716771 Sensor Kit | Genuine Volvo Penta Part

🔧 Product Description

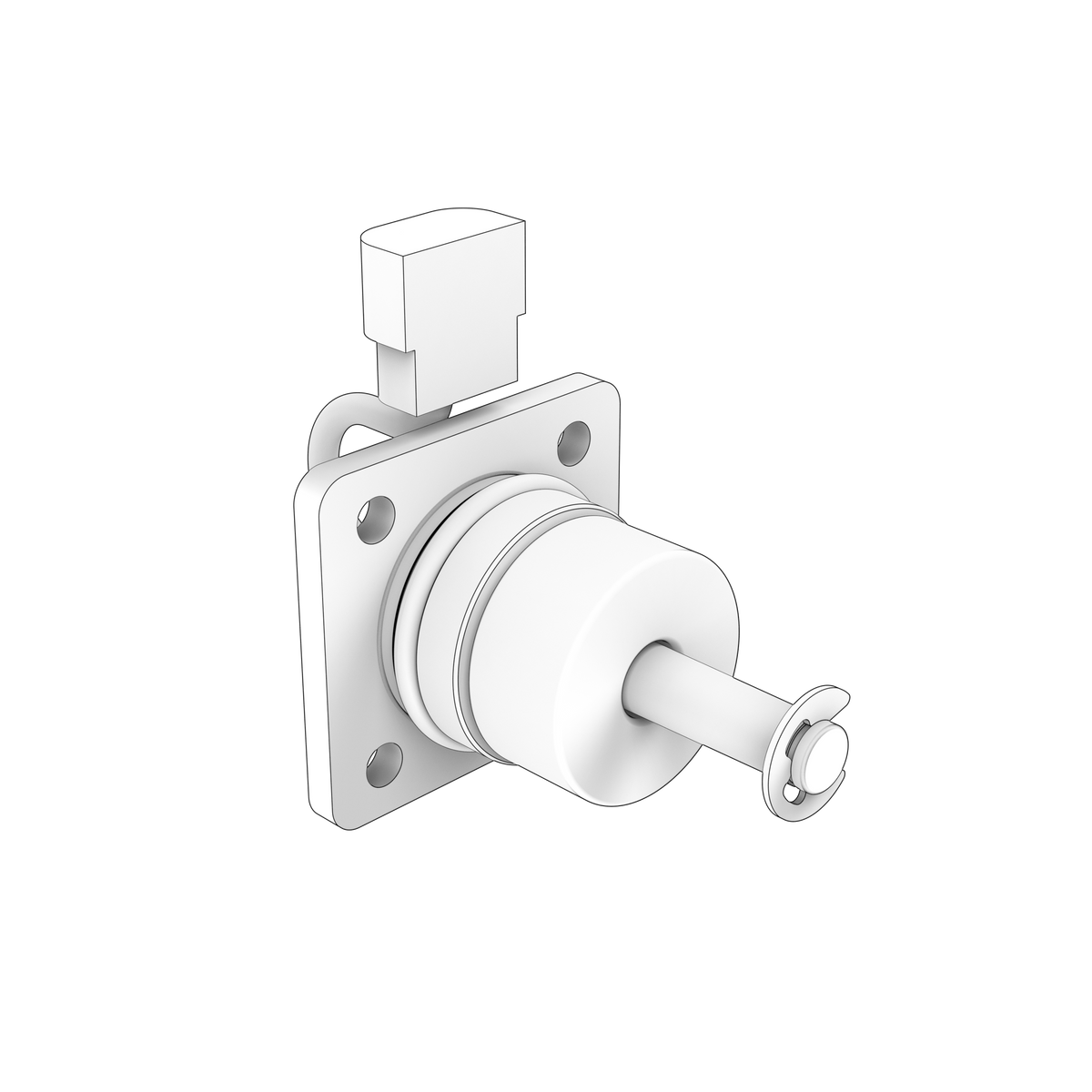

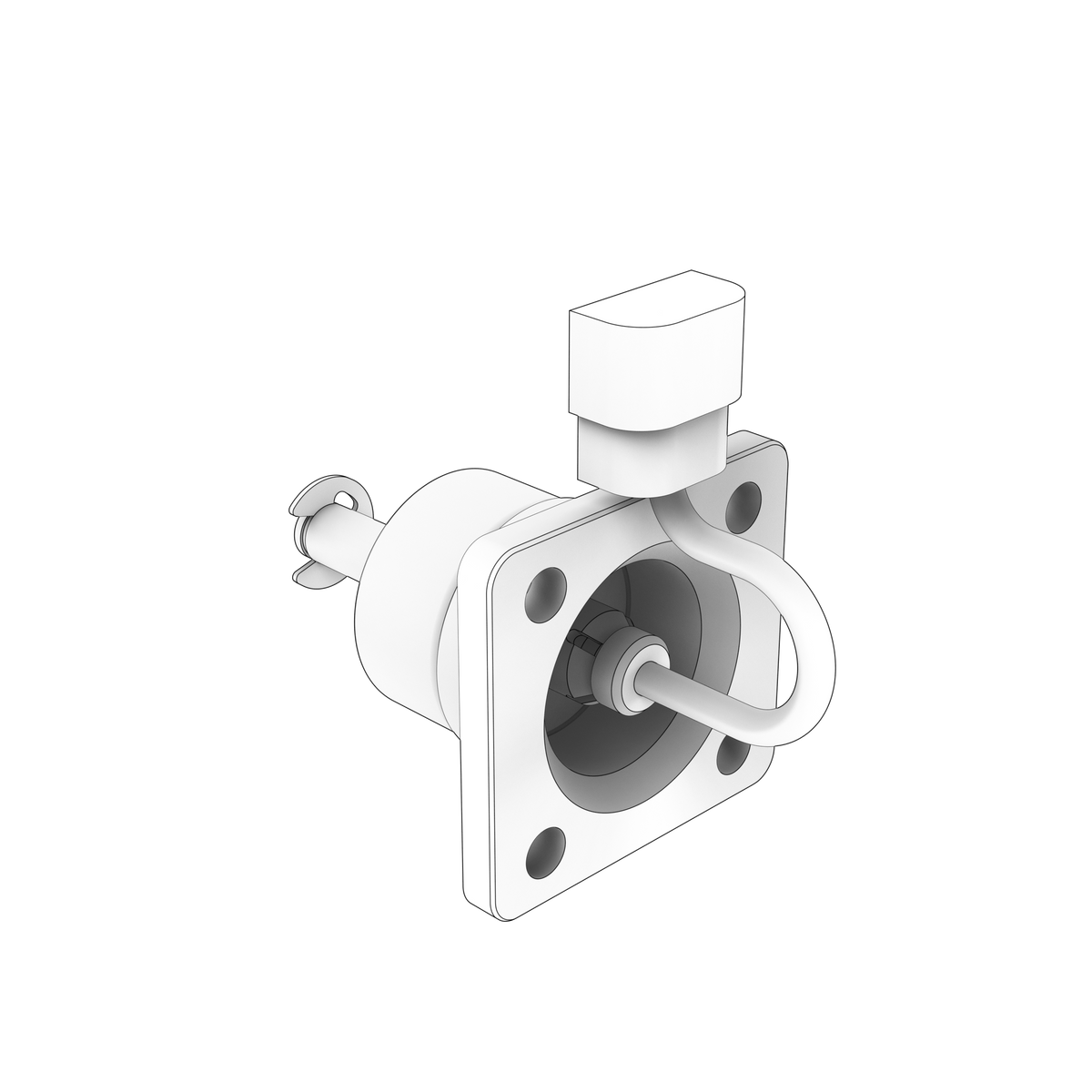

A genuine Volvo Penta coolant-level sensor package installed in the expansion tank of selected TWD16 generating-set engines. The sensor monitors coolant level and supplies the engine-management system with the signal used for low-coolant warning and protective action.

🚤 Compatibility

Typically suits:

• Volvo Penta TWD1643GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWG1663GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683GE-B
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1744GE

• Engine Family: TWD, TWG

⚙️ Key Features

• Genuine Volvo Penta expansion-tank sensor kit
• Correct Volvo Penta part number 22716771
• Monitors coolant level in the engine expansion tank
• Used in one- and two-circuit TWD16 cooling-system arrangements where specified
• Full electrical and mechanical diagnostics apply
• Engine type: Volvo Penta TWD16 / TWD17 generating-set diesel

📋 Kit Contents

• 1 × expansion-tank coolant-level sensor assembly - 22716771
• 1 × sensor sealing component - serviced with kit 22716771
• 1 × sensor electrical connection section - integrated with kit 22716771
• Related expansion-tank O-ring 22347446 and mounting screw 984724 are serviced separately

🔌 Function

The sensor detects whether coolant is present at the calibrated level in the expansion tank and sends the corresponding signal to the engine control and alarm system.

⚠️ Common Signs of Failure

• False low-coolant warning with the tank correctly filled
• No warning when the coolant level is below specification
• Intermittent alarm caused by damaged wiring or poor terminal contact
• Open-circuit or short-circuit coolant-level fault
• Coolant leakage around the sensor seal or expansion-tank mounting point

🛠️ Service Notes

• This is a coolant-level sensor for the expansion tank, not a temperature sensor — confirm which function the warning is reporting before ordering
• Fitment is limited to TWD16/TWD17/TWG generating-set engines, and only in one- or two-circuit cooling arrangements — check which circuit layout the set uses before assuming this part applies
• The part has already been through two supersessions (22347431 → 22664489 → 22716771) — on an older set, check the alarm panel wiring matches the current sensor before fitting

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22716771 → Supersedes 22664489 → Supersedes 22347431

OEM / Related Numbers

• 22664489 earlier number superseded by this part
• 22347431 earlier number superseded by this part
• 22302318 related expansion tank
• 23430700 related later expansion tank
• 1674083 related pressure cap
• 23321023 related later pressure cap
• 3828863 related rubber collar
• 984724 related flange screw
• 22347446 related O-ring
• 3547449 related float
• 22347455 related lock ring
• 22347448 related level sight glass

Other-Brand OEM Numbers

• VOE22716771

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
