22728820 Mounting Plate Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta mounting-plate and fastener package for the IS900 interceptor system. The plate forms the correctly machined hull interface for the interceptor servo and blade assembly.

🚤 Compatibility

• Engine Family: D, VMM
• HP Range: 110-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta IS900 mounting-plate kit
• Correct Volvo Penta part number 22728820
• Includes the mounting plate and 10 specified Volvo Penta screws
• Provides the correct hull-interface geometry for the interceptor
• Plate length and fastener count must match the interceptor version
• Engine type: Volvo Penta marine propulsion installation with interceptor trim system

📋 Kit Contents

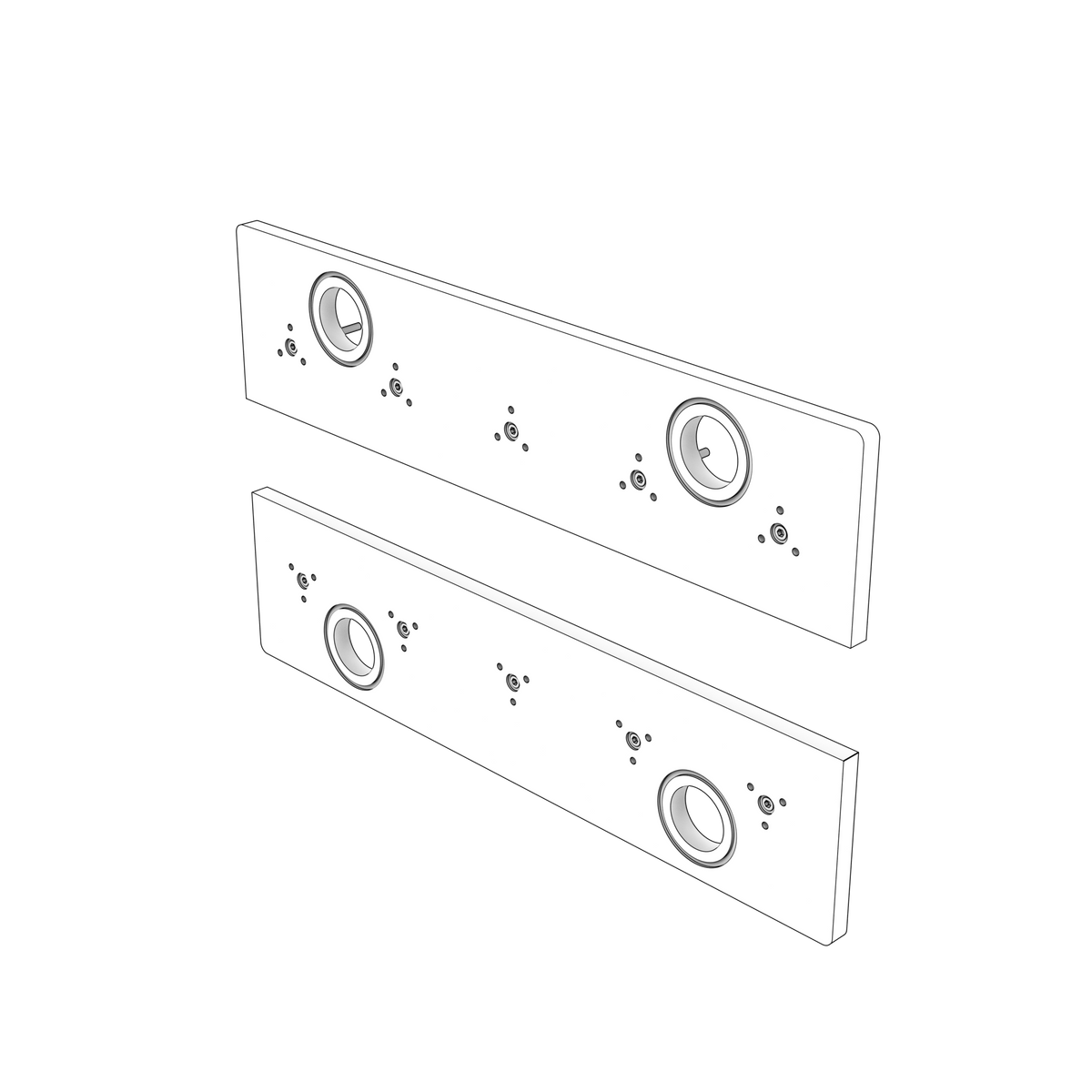

• 1 × IS900 interceptor mounting plate - serviced under kit 22728820
• 10 × hexagon socket screw - 996642
• Drill template 21970434 is a related installation tool and is serviced separately
• Support 21970436 and wrench 21888526 are related installation tools and are serviced separately

🔌 Function

The plate provides the rigid, sealed mounting surface that aligns the interceptor blade and servo mechanism with the hull bottom.

⚠️ Common Signs of Failure

• Water leakage around the mounting plate
• Corrosion, cracking or distortion of the plate
• Interceptor blade binds because the plate is misaligned
• Mounting screws loosen or threads are damaged
• Incorrect plate length or fastener count is fitted

🛠️ Service Notes

• Check the kit contents against the parts you remove before you start, and use the fasteners supplied with the kit rather than substituting whatever is to hand
• Clean the mating faces and check them for burrs, distortion, old sealant and corrosion; a plate that will not sit flat pulls whatever it carries out of line
• Assemble loose first, check the alignment of the component it supports, then tighten evenly and diagonally to the figures in the workshop manual for your engine
• Where the plate carries a gasket, seal or shim, renew it and keep the original order and orientation
• Recheck the fasteners after the first running period — mounting hardware is the first thing to move once the assembly has been through heat and vibration

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22728820 → Supersedes 21889195

OEM / Related Numbers

• 21889195 earlier number superseded by this part
• 996642 mounting screw
• 21970434 related drill template
• 21970436 related support
• 21888526 related wrench
• 21948237 related servo-unit kit
• 21888972 related drive plate
• 21888969 related drive-shaft kit
• 22088469 related O-ring
• 21890405 related flange nut
• 21890471 related six-point socket screw
• 21955937 related six-point socket screw

Other-Brand OEM Numbers

• VOE22728820

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-K MP, D13B-J MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2M MP, D9A2L MH
• Volvo Penta VMM-A
