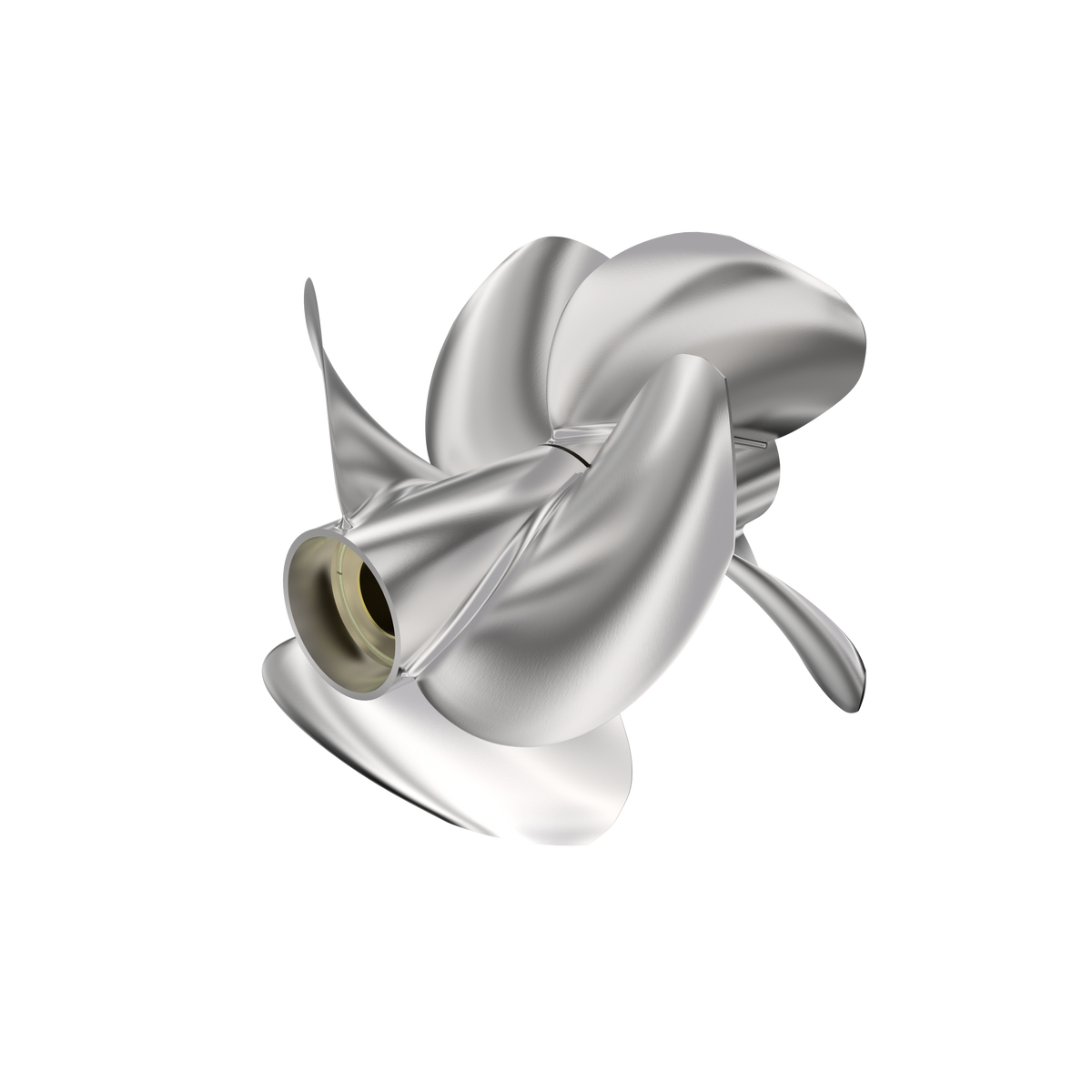

22754008 Propeller Kit | Genuine Volvo Penta Part

🔧 Product Description

Type H is the stainless steel Duoprop range for the Aquamatic DPH and DPI drives, designed to capture the tremendous torque from the new generation D4 and D6 engines. The patented blade geometry gives optimal interaction between the front and rear propellers for outstanding efficiency and smooth, comfortable operation, and the large blade area provides maximum grip and manoeuvrability. A shock-absorbing rubber bushing and galvanic isolation make it a matched fit for the DPI and DPH drive. This number supplies the complete H8 pair, front propeller 23623058 and rear propeller 23623068. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPH-E
• Volvo Penta DPI-A
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-320A-G
• Volvo Penta D4-300A-G

• Engine Family: D, DPH, DPI
• HP Range: 150-440 HP

⚙️ Key Features

• Matched Type H8 set for DPH and DPI drives
• Stainless steel, with a shock-absorbing rubber bushing and galvanic isolation
• Front propeller 23623058 and rear propeller 23623068
• 12 applications across the D4 and D6 ranges and the DPH-E and DPI-A drives
• Published weight identical to the H7 set 22754007 - order by size code
• Patented blade geometry, outstanding efficiency and comfort.
• Excellent durability, minimal marine growth.
• Made of high strength stainless steel alloy.
• Galvanic isolation protects the drive from corrosion caused by the propellers.
• Three-blade front propeller and four-blade rear propeller.
• Material: stainless steel
• Fits: DPH and DPI
• Type: H8
• Set contains: front 23623058, rear 23623068

📋 Kit Contents

• 1 × Type H8 three-blade front propeller - 23623058
• 1 × Type H8 four-blade rear propeller - 23623068
• Propeller cone, nuts, lock bolt and installation tools are serviced separately
• Related H-series propeller cone kit - 23000185

🔌 Function

The H8 front and rear propellers turn in opposite directions, converting drive torque into thrust while cancelling each other's steering torque.

⚠️ Common Signs of Failure

• Vibration through the hull that grows with boat speed
• Blade edges chipped, curled or bent after contact with the ground or debris
• Engine running up against its rev limit with little thrust, which points to a bushing having slipped
• Loss of top speed, or the engine no longer reaching its rated speed
• Rope or fishing line wound in at a hub, with a damaged seal behind it

🛠️ Service Notes

• Replacing type G propellers with type H also means changing the propeller cone - cone kit 23000185
• Never mix type G and type H, or two different sizes, on a drive - and in a twin installation both drives must match
• Check the propellers are the pair you think they are before fitting, since the H7 and H8 parts cannot be told apart by weight
• Upgrading from Type G to Type H on DPH drives keeps the same sizing - a G6 propeller corresponds to an H6 propeller.
• The propeller cone must be replaced to fit Type H propellers: propeller cone kit 23000185.
• Do not mix Type G and Type H propellers. Always use propellers of the same type and size on the drive, or on both drives in twin installations.
• Installation hardware, type H: propeller cone kit 23000185 including lock bolt M12, lock bolt M12 991609, front propeller nut 23952642 and line cutter 23777877.
• The line cutter 23777877 for Type H propellers is 95 mm / 3.7 in, 316 stainless steel, and is included as standard on DPI drives.

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 23623058 front propeller
• 23623068 rear propeller
• 23000185 related H-series propeller-cone kit
• 991609 related cone lock bolt
• 23952642 related front propeller nut
• 23777877 related line cutter
• 23161623 related propeller tool

Other-Brand OEM Numbers

• VOE22754008

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
