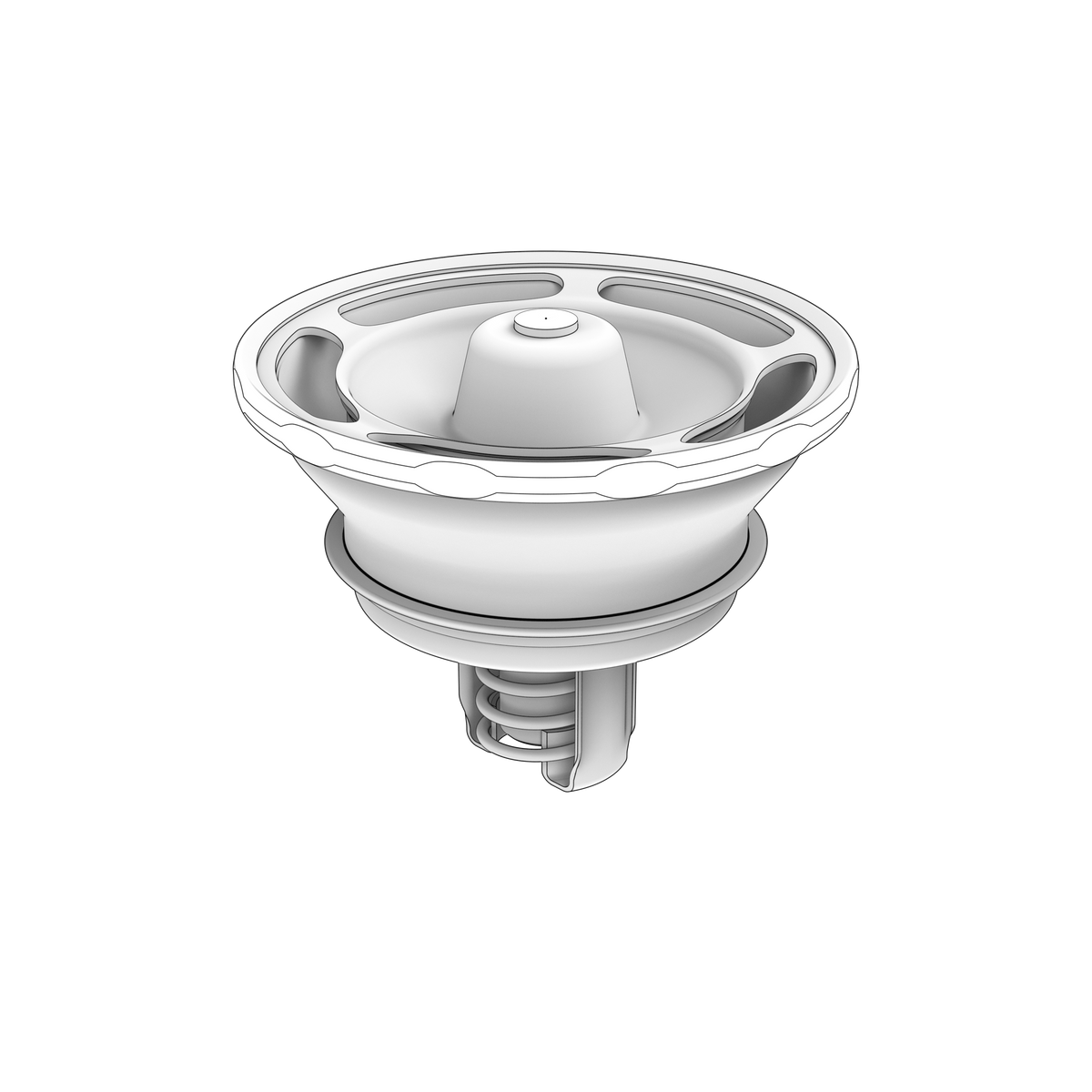

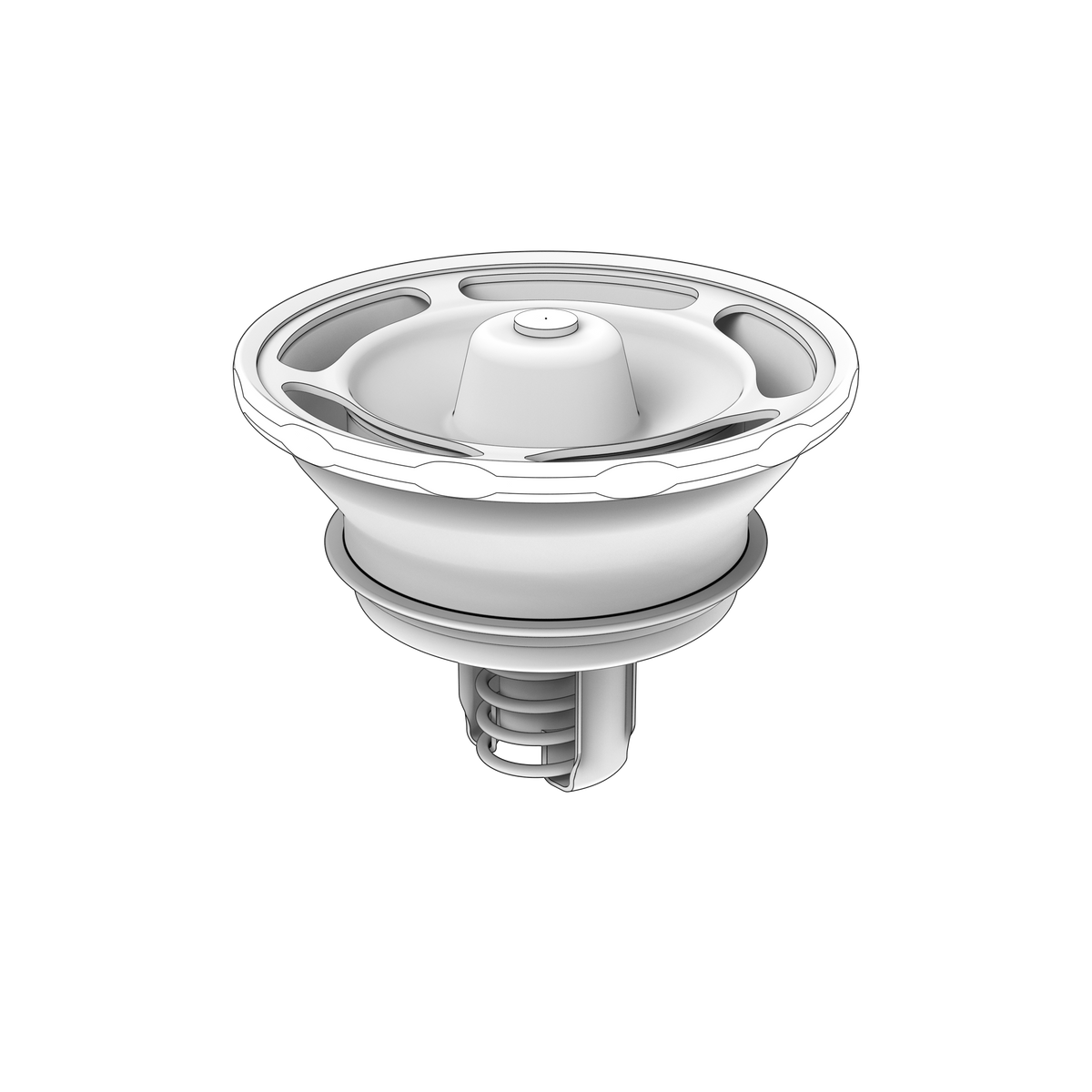

22820752 Thermostat | Genuine Volvo Penta Part
22820752 Thermostat | Genuine Volvo Penta Part
Couldn't load pickup availability
In stock — Australian warehouse
Typically reaches our store in 3–5 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description
Genuine Volvo Penta thermostat rated at 86 degrees, weighing 0.404 kg and listed for five D series engine applications. The opening temperature is the critical specification - fitting a different rating changes the engine's running temperature. It supersedes part number 21412643.
🚤 Compatibility
Typically suits:
- Volvo Penta D16C-A MG
- Volvo Penta D16C-A MH
- Volvo Penta D16C-B MH
- Volvo Penta D16C-C MH
- Volvo Penta D16C-D MH
- Engine Family: D
⚙️ Key Features
- Thermostat rated at 86 degrees
- 0.404 kg
- Supersedes part number 21412643
- Listed for five D series engine applications
- Within 14 grams of thermostat 22820756, so the rating and not the weight identifies it
🔌 Function
Blocks flow to the heat exchanger until the coolant reaches its rated temperature, then opens progressively so the engine warms quickly and then holds a steady running temperature.
⚠️ Common Signs of Failure
- Engine slow to warm up, or running below normal temperature on a cold day
- Overheating soon after start-up with the upper hose staying cold, showing a stuck-shut unit
- Temperature swinging up and down instead of settling
- Corroded or scaled valve and seat, so the unit no longer closes fully
- Wax capsule leaking or the return spring collapsed on strip-down
🛠️ Service Notes
- Fit a thermostat of the correct rating only, since a different opening temperature changes how the whole engine runs
- Renew the housing gasket or sealing ring and check the housing face for erosion at the same time
- Test the old unit in hot water before condemning it if the symptom is intermittent
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 22820752 → Supersedes 21412643 → Supersedes 21237216 → Supersedes 20560252 → Supersedes 20441484
OEM / Related Numbers
- 21412643 earlier number superseded by this part
- 21237216 earlier number superseded by this part
- 20560252 earlier number superseded by this part
- 20441484 earlier number superseded by this part
Other-Brand OEM Numbers
- Gates: TH62486
Aftermarket / Verified Equivalents
- Calorstat by Vernet: THS18201.86
- Calorstat by Vernet: THCT18201.86
- DT Spare Parts: 2.15641
- Febi Bilstein: 44162
- NRF: 725394
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
