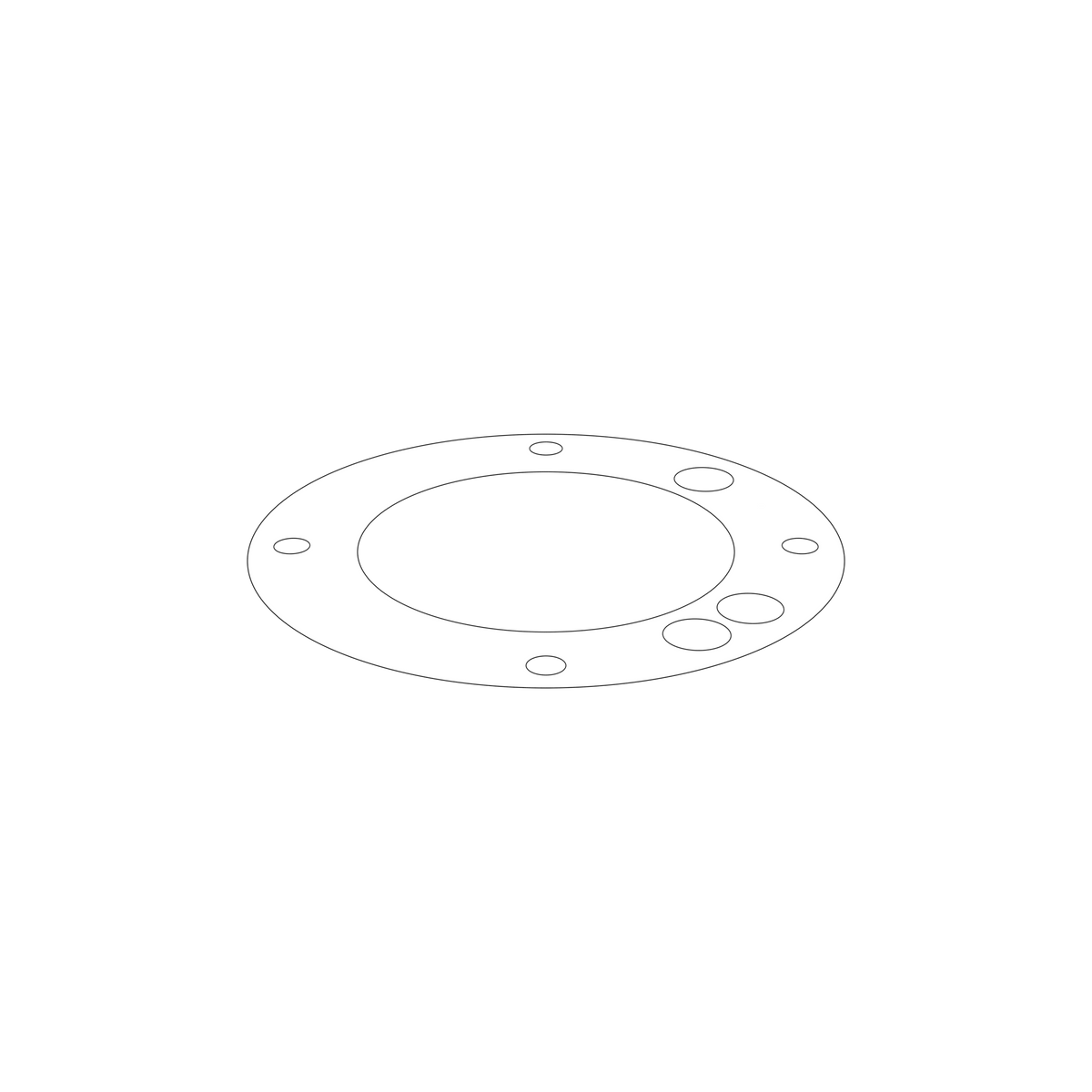

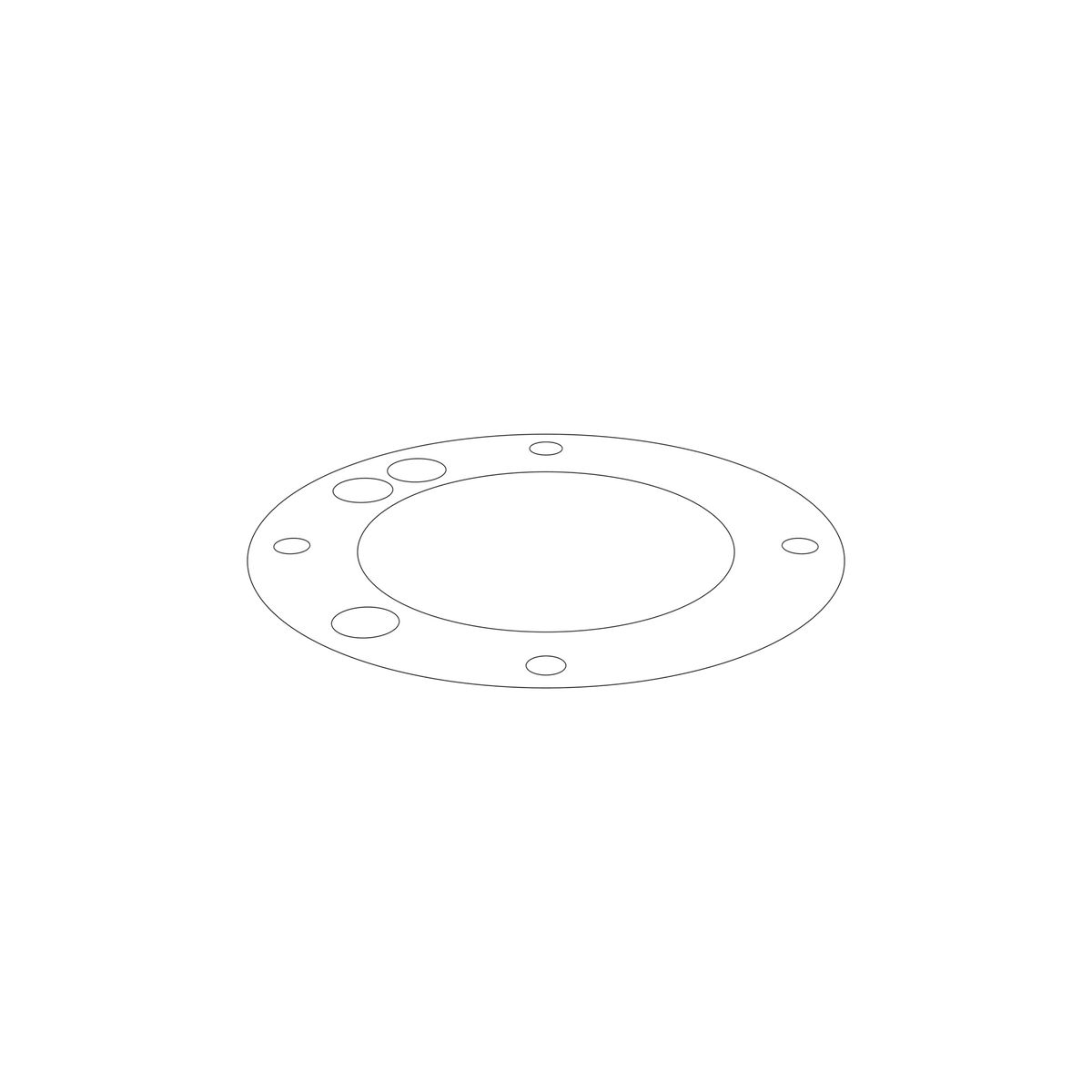

22838380 Shim | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta shim 0.08 mm thick, listed for seven applications across D series engines and IPS pod drives. The thickness is the entire basis for selection - 0.13 mm and 0.25 mm shims cover the same applications and set a different clearance. It supersedes part number 3861052.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300D-G
• Volvo Penta D6-340D-G
• Volvo Penta D6-380D-G
• Volvo Penta D6-440D-G
• Volvo Penta D6-480D-G
• Volvo Penta IPS10-A
• Volvo Penta IPS10-B

• Engine Family: D, IPS
• HP Range: 300-480 HP

⚙️ Key Features

• Shim, 0.08 mm thick
• Supersedes part number 3861052
• Listed for seven applications across D series engines and IPS pod drives
• The thinnest of the three shims offered for these applications, alongside the 0.13 mm 22838381 and the 0.25 mm 22838382
• TH=0.08mm (Volvo assembly listing)

🔌 Function

Takes up a measured amount of the gap in an assembly, so the clearance or preload of the parts it sits between can be set to specification.

⚠️ Common Signs of Failure

• Noise or knock from the assembly, showing the clearance has drifted
• Play or end float that has grown between one service and the next
• Shim found bruised, dished or picked up on its faces
• Shim broken or distorted, so the stack no longer measures what it should
• Fretting marks and debris between the shim and the parts on either side

🛠️ Service Notes

• Measure the assembly and calculate the stack rather than reusing the shim that came out, since the thickness is the whole point of the part
• The 0.13 mm and 0.25 mm shims fit the same applications, so order by thickness, not by appearance

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22838380 → Supersedes 3861052

OEM / Related Numbers

• 3861052 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
