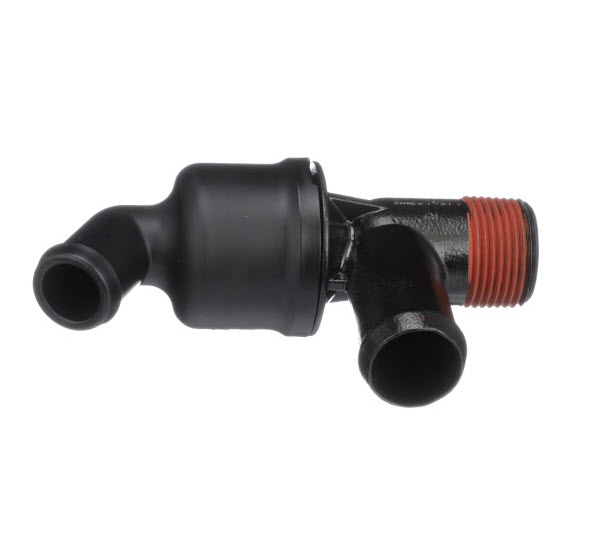

22863786A1 Mercury MerCruiser T Fitting Exhaust Drain Valve | Genuine Quicksilver OEM Part

22863786A1 Mercury MerCruiser T Fitting Exhaust Drain Valve | Genuine Quicksilver OEM Part

$79.00 AUD
$79.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

Genuine Quicksilver T Fitting Exhaust Drain Valve - Part Number: 22-863786A1

Genuine Quicksilver/Mercury MerCruiser exhaust manifold drain T fitting assembly used in the raw-water drain system on selected MerCruiser MPI V6 and V8 petrol engines. This fitting is fitted into the exhaust manifold / elbow drain circuit and provides a serviceable drain point for removing cooling water from the exhaust system during flushing, winterisation, storage or routine maintenance.

⚙️ Key Features

  • Genuine Quicksilver/Mercury OEM fitting assembly
  • Exhaust manifold drain T fitting with drain valve function
  • Designed for selected MerCruiser MPI V6 and V8 petrol engines
  • Commonly used on 4.3L, 5.0L, 5.7L / 350 MAG and 6.2L MPI exhaust drain systems
  • Helps drain raw water from the exhaust manifold circuit for maintenance and freeze protection
  • Direct replacement for the original MerCruiser exhaust drain fitting where 22-863786A1 is specified

🚤 Compatibility

Commonly used on

  • Mercury MerCruiser MPI V6 and V8 petrol exhaust manifold drain systems
  • MerCruiser standard cooling and selected closed-cooling exhaust manifold drain assemblies
  • MerCruiser dry-joint exhaust manifold drain systems where 22-863786A1 is specified

Typically suits

  • Engine models:
  • MerCruiser 4.3L MPI Alpha / Bravo, serial range 0M300000 - 0M614999
  • MerCruiser 4.3L MPI Alpha / Bravo, serial range 0W310000 - 0W649999
  • MerCruiser 4.3L MPI Alpha / Bravo, serial range 0W650000 - 0W658582
  • MerCruiser 4.3L MPI Alpha / Bravo, serial 0W658583
  • MerCruiser 4.3L MPI Alpha / Bravo, serial range 0W658584 - 1A030367
  • MerCruiser 4.3L MPI Alpha / Bravo, serial range 1A030368 - 1A030369
  • MerCruiser 4.3L MPI Alpha / Bravo, serial range 1A030370 - 1A063239
  • MerCruiser 4.3L MPI Alpha / Bravo, serial range 1A063240 and up
  • MerCruiser 4.3L MPI Alpha / Bravo EC, serial range 1A637496 and up
  • MerCruiser 5.0L MPI Alpha / Bravo, serial range 0M300000 - 0M599999
  • MerCruiser 5.0L MPI Alpha / Bravo, serial range 0M600000 - 0W059999
  • MerCruiser 5.0L MPI Alpha / Bravo, serial range 0W060000 - 0W309999
  • MerCruiser 5.0L MPI Alpha / Bravo, serial range 0W310000 - 0W649999
  • MerCruiser 5.0L MPI Alpha / Bravo, serial range 0W650000 - 1A299999
  • MerCruiser 5.0L MPI Alpha / Bravo, serial range 1A300000 - 1A611927
  • MerCruiser 5.0L MPI Alpha / Bravo, serial range 1A611928 - 1A623184
  • MerCruiser 5.0L MPI Alpha / Bravo, serial range 1A623185 and up
  • MerCruiser 5.0L MPI Alpha / Bravo EC, serial range 1A300000 - 1A611927
  • MerCruiser 5.0L MPI Alpha / Bravo EC, serial range 1A611928 - 1A623184
  • MerCruiser 5.0L MPI Alpha / Bravo EC, serial range 1A623185 and up
  • MerCruiser 350 MAG MPI Alpha / Bravo, serial range 0M300000 - 0M599999
  • MerCruiser 350 MAG MPI Alpha / Bravo, serial range 0M600000 - 0W059999
  • MerCruiser 350 MAG MPI Alpha / Bravo, serial range 0W060000 - 0W309999
  • MerCruiser 350 MAG MPI Alpha / Bravo, serial range 0W310000 - 0W649999
  • MerCruiser 350 MAG MPI Alpha / Bravo, serial range 0W650000 - 1A299999
  • MerCruiser 350 MAG MPI Alpha / Bravo, serial range 1A300000 - 1A611927
  • MerCruiser 350 MAG MPI Alpha / Bravo, serial range 1A611928 - 1A623184
  • MerCruiser 350 MAG MPI Alpha / Bravo, serial range 1A623185 and up
  • MerCruiser 350 MAG MPI Alpha / Bravo EC, serial range 1A300000 - 1A611927
  • MerCruiser 350 MAG MPI Alpha / Bravo EC, serial range 1A611928 - 1A623184
  • MerCruiser 350 MAG MPI Alpha / Bravo EC, serial range 1A623185 and up
  • MerCruiser 350 MAG MPI Horizon Alpha / Bravo, serial range 0M300000 - 0M599999
  • MerCruiser 350 MAG MPI Horizon Alpha / Bravo, serial range 0M600000 - 0W059999
  • MerCruiser 350 MAG MPI Horizon Alpha / Bravo, serial range 0W060000 - 0W309999
  • MerCruiser 350 MAG MPI Horizon Alpha / Bravo, serial range 0W310000 - 0W649999
  • MerCruiser 350 MAG MPI Horizon Alpha / Bravo, serial range 0W650000 - 1A299999
  • MerCruiser 350 MAG MPI Horizon Alpha / Bravo EC, serial range 1A300000 - 1A611927
  • MerCruiser 350 MAG MPI Horizon Alpha / Bravo EC, serial range 1A611928 - 1A623184
  • MerCruiser 350 MAG MPI Horizon Alpha / Bravo EC, serial range 1A623185 and up
  • MerCruiser 350 MAG MPI MIE, serial range 0M310000 - 0M316999
  • MerCruiser 350 MAG MPI MIE, serial range 0M317000 - 0M398371
  • MerCruiser 350 MAG MPI MIE, serial range 0M398372 - 0W389999
  • MerCruiser 350 MAG MPI MIE, serial range 0W390000 - 0W689999
  • MerCruiser 350 MAG MPI MIE, serial range 0W690000 - 1A089999
  • MerCruiser 350 MAG MPI Horizon MIE, serial range 0M310000 - 0M316999
  • MerCruiser 350 MAG MPI Horizon MIE, serial range 0M317000 - 0M398371
  • MerCruiser 350 MAG MPI Horizon MIE, serial range 0M398372 - 0W389999
  • MerCruiser 350 MAG MPI Horizon MIE, serial range 0W390000 - 0W689999
  • MerCruiser 350 MAG MPI Horizon MIE, serial range 0W690000 - 1A089999
  • MerCruiser 350 MAG MPI Ski, serial range 0M300000 - 0M316999
  • MerCruiser 350 MAG MPI Ski, serial range 0M317000 - 0W689999
  • MerCruiser 5.7L MPI MIE, serial range 1A090000 - 1A092168
  • MerCruiser 5.7L MPI MIE, serial range 1A092169 and up
  • MerCruiser 5.7L MPI Horizon MIE, serial range 1A090000 - 1A092168
  • MerCruiser 5.7L MPI Horizon MIE, serial range 1A092169 and up
  • MerCruiser 5.7L MPI TowSport with Gen III, serial range 1G400000 - 1G499999
  • MerCruiser 6.2L MPI Ski, serial range 0M317000 - 0W689999
  • MerCruiser MX 6.2L MPI Bravo, serial range 0M300000 - 0M599999
  • MerCruiser MX 6.2L MPI Bravo, serial range 0M600000 - 0W059999
  • MerCruiser MX 6.2L MPI Bravo, serial range 0W060000 - 0W309999
  • MerCruiser MX 6.2L MPI Bravo, serial range 0W310000 - 0W649999
  • MerCruiser MX 6.2L MPI Bravo, serial range 0W650000 - 1A299999
  • MerCruiser MX 6.2L MPI Horizon Bravo, serial range 0M300000 - 0M599999
  • MerCruiser MX 6.2L MPI Horizon Bravo, serial range 0M600000 - 0W059999
  • MerCruiser MX 6.2L MPI Horizon Bravo, serial range 0W060000 - 0W309999
  • MerCruiser MX 6.2L MPI Horizon Bravo, serial range 0W310000 - 0W649999
  • MerCruiser MX 6.2L MPI Horizon Bravo, serial range 0W650000 - 1A299999
  • MerCruiser MX 6.2L MPI MIE, serial range 0W690000 - 1A089999
  • MerCruiser MX 6.2L MPI Horizon MIE where fitted with the matching exhaust manifold drain assembly
  • MerCruiser Black Scorpion 350 MAG MPI where fitted with the matching exhaust manifold drain assembly
  • MerCruiser Black Scorpion MX 6.2L MPI where fitted with the matching exhaust manifold drain assembly
  • MerCruiser Scorpion 350 EC where fitted with the matching exhaust manifold drain assembly
  • MerCruiser Scorpion 377 HO EC where fitted with the matching exhaust manifold drain assembly
  • MerCruiser 350 MPI Alpha reman, serial range 1G400000 - 1G499999
  • MerCruiser 383 MAG Stroker reman, serial range 1G400000 - 1G499999
  • MerCruiser 383 MAG Stroker Bravo reman, serial range 1G400000 - 1G499999
  • HP Range: Approximately 190HP - 377HP, depending on engine package
  • Engine Type: MerCruiser petrol MPI V6 / V8 stern drive, inboard and tow-sport exhaust manifold drain system
  • Year Range: Approximately 2001 onwards, depending on engine model, serial number and cooling configuration

🔌 Function

The exhaust drain T fitting provides a drain point in the MerCruiser exhaust manifold water circuit. It allows cooling water to be drained from the manifold and elbow area during service, storage, flushing or freeze-protection procedures. A correctly functioning drain fitting helps prevent trapped water, corrosion, cracking from freezing and poor drainage during maintenance.

⚠️ Common Signs of Failure

  • Water leaking from the exhaust manifold drain fitting
  • Cracked, brittle or heat-damaged fitting body
  • Drain valve blocked with salt, sand or corrosion
  • Exhaust manifold not draining correctly during service
  • Difficulty winterising or flushing the exhaust water circuit
  • Visible damage or missing drain fitting components

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • No available supersession chain

OEM / Related Numbers

  • 22-863786A1
  • 863786A1
  • 22863786A1
  • 22-05158 related drain T fitting reference
  • 25-864701 related O-ring used in matching exhaust manifold drain assemblies

Aftermarket / Verified Equivalents

  • REC: REC22-863786A1
  • EMP: 22-05158

📦 Condition

  • Genuine Quicksilver part
  • Brand new
  • Supplied in original or equivalent packaging
