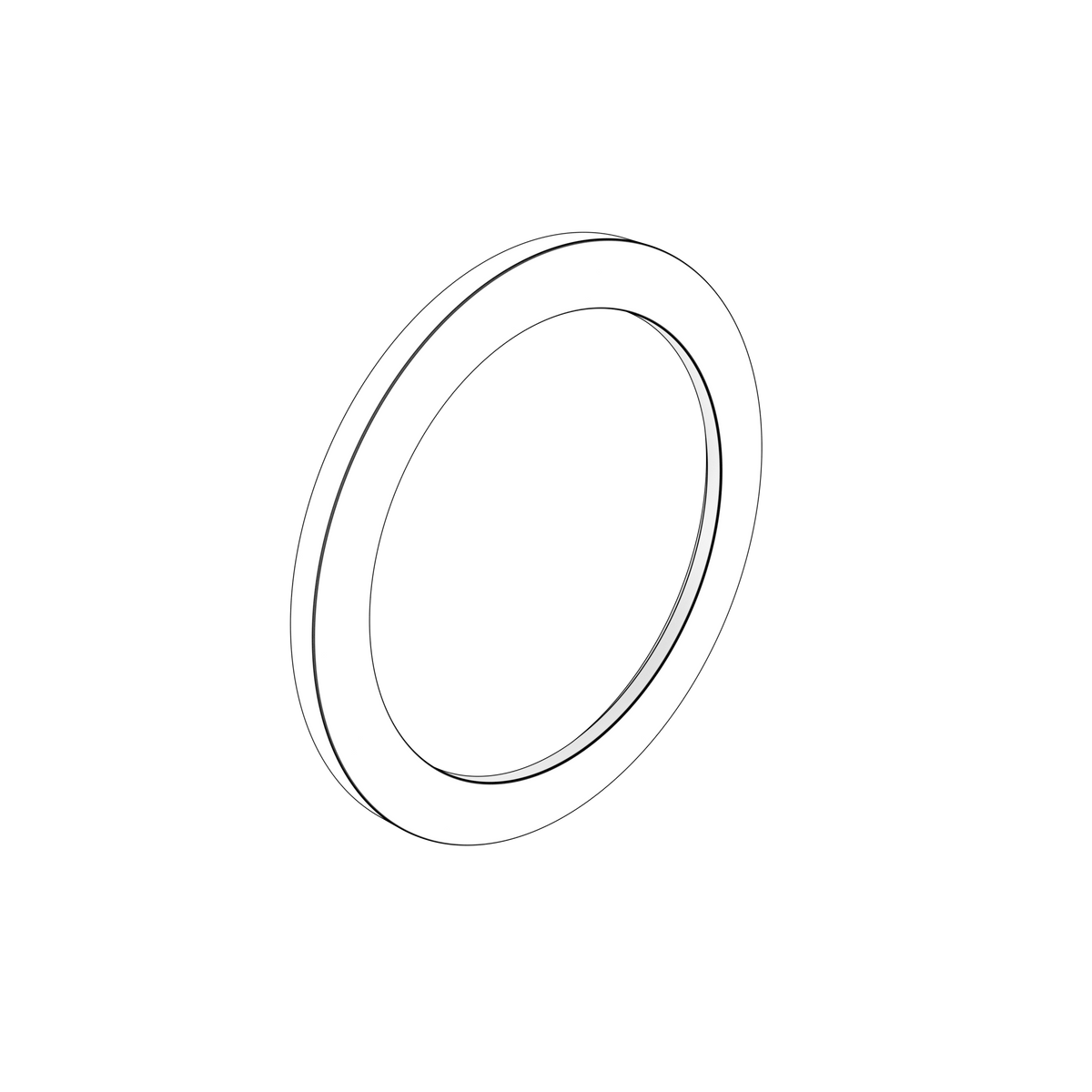

22890460 Adjusting Washer | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta adjusting washer 3.50 mm thick, from the Marine Propulsion group, listed for 35 applications across IPS pod drives and D series engines. Thickness is the entire basis for selection - 2.80 mm and 3.10 mm washers cover the same applications and set a different clearance.

🚤 Compatibility

• Engine Family: IPS, D

Full model list at the end of this description.

⚙️ Key Features

• 3.50 mm thick
• 0.039 kg
• Listed for 35 applications across IPS pod drives and D series engines
• Thickness is the whole basis of selection - 2.80 mm and 3.10 mm washers cover the same applications and set a different clearance

🔌 Function

Sets the running clearance or preload in the assembly by taking up a measured amount of end float, the thickness chosen to bring the stack into specification.

⚠️ Common Signs of Failure

• Whine or growl from the drive that changes with load
• End float felt when the shaft is rocked by hand
• Washer face found polished, stepped or blued on strip-down
• Bearing tracks marked or pitted where the clearance has been wrong

🛠️ Service Notes

• Measure the stack and select the thickness rather than fitting like-for-like - a worn washer changes the figure you are measuring against
• The washers are supplied in a range: 2.80 mm and 3.10 mm cover the same applications where a different clearance is needed

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B4-A MP, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta IPS15-C, IPS15-B, IPS15-A
• Volvo Penta IPS2-C, IPS2-A, IPS2-B
• Volvo Penta IPS20-D, IPS20-E
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS30-E, IPS30-D
