22906755 Alternator | Genuine Volvo Penta Part

🔧 Product Description

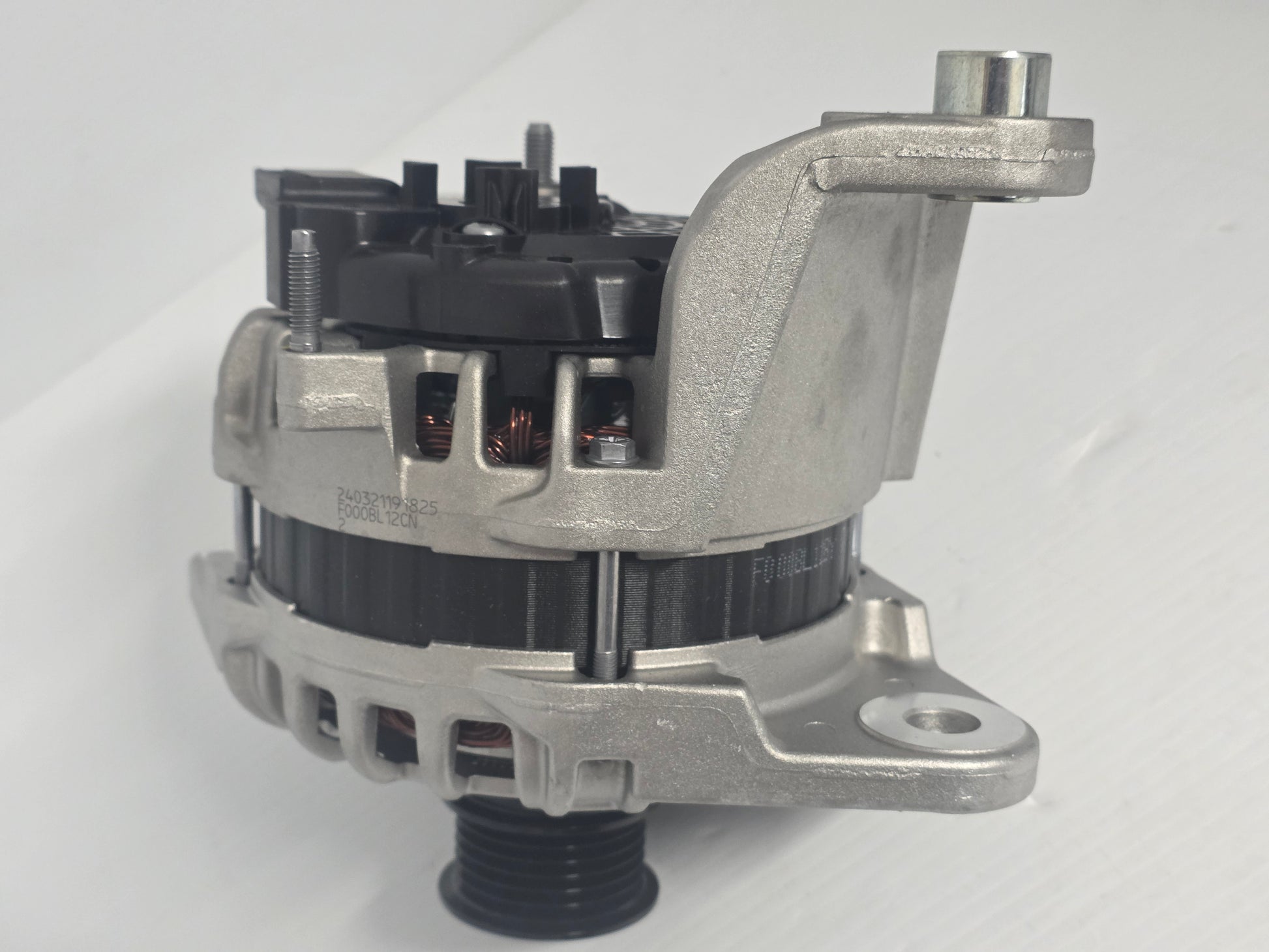

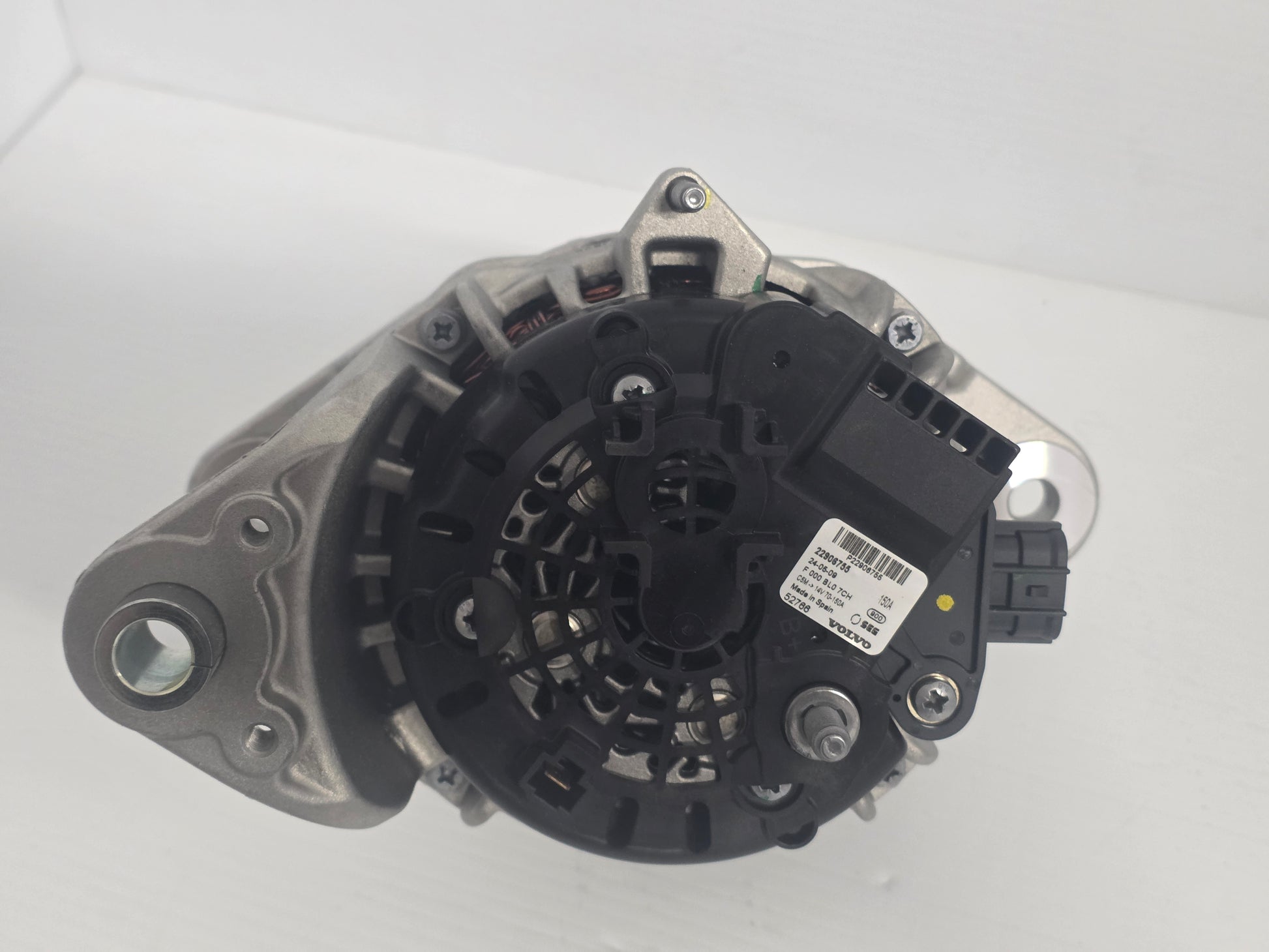

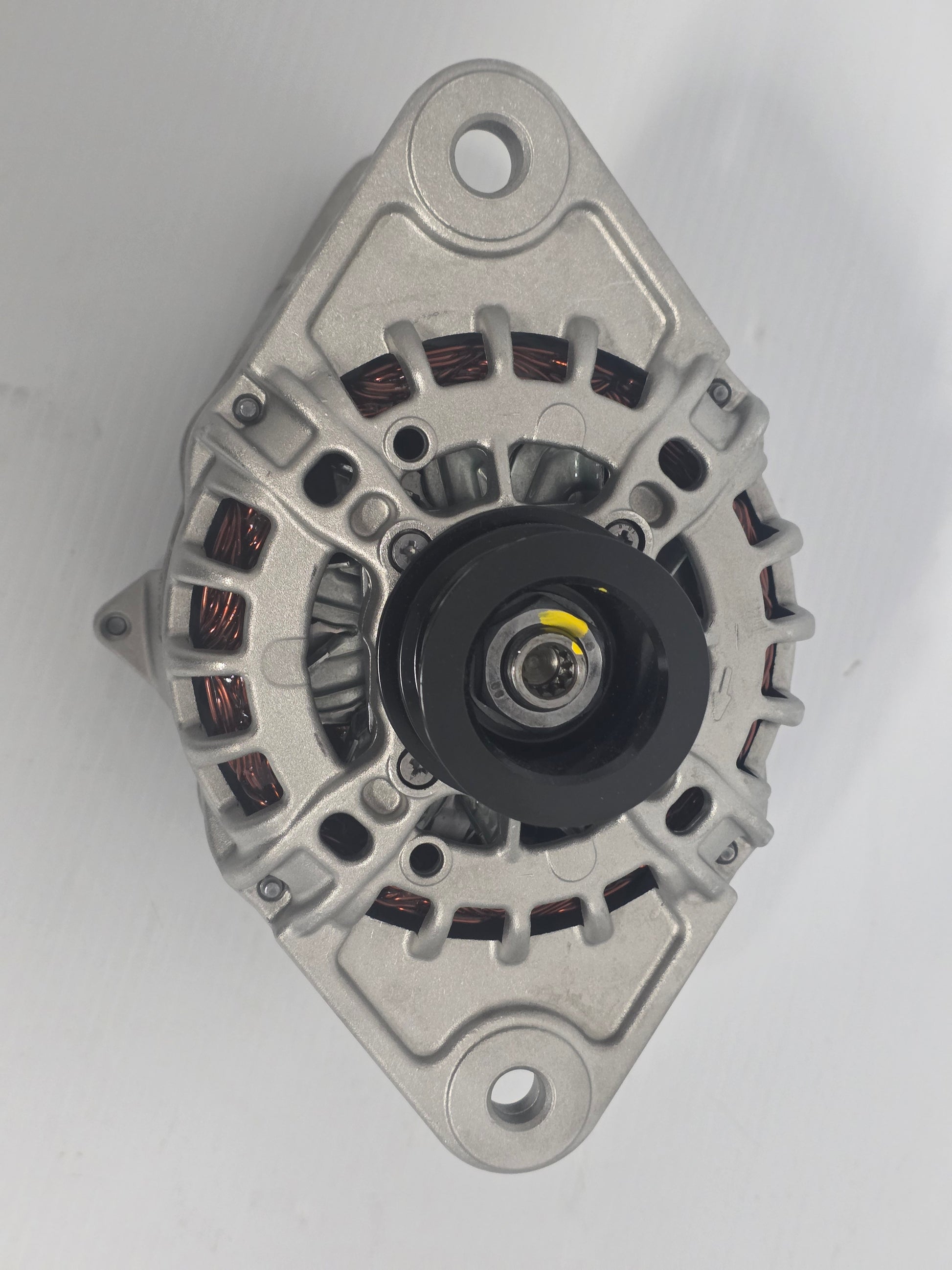

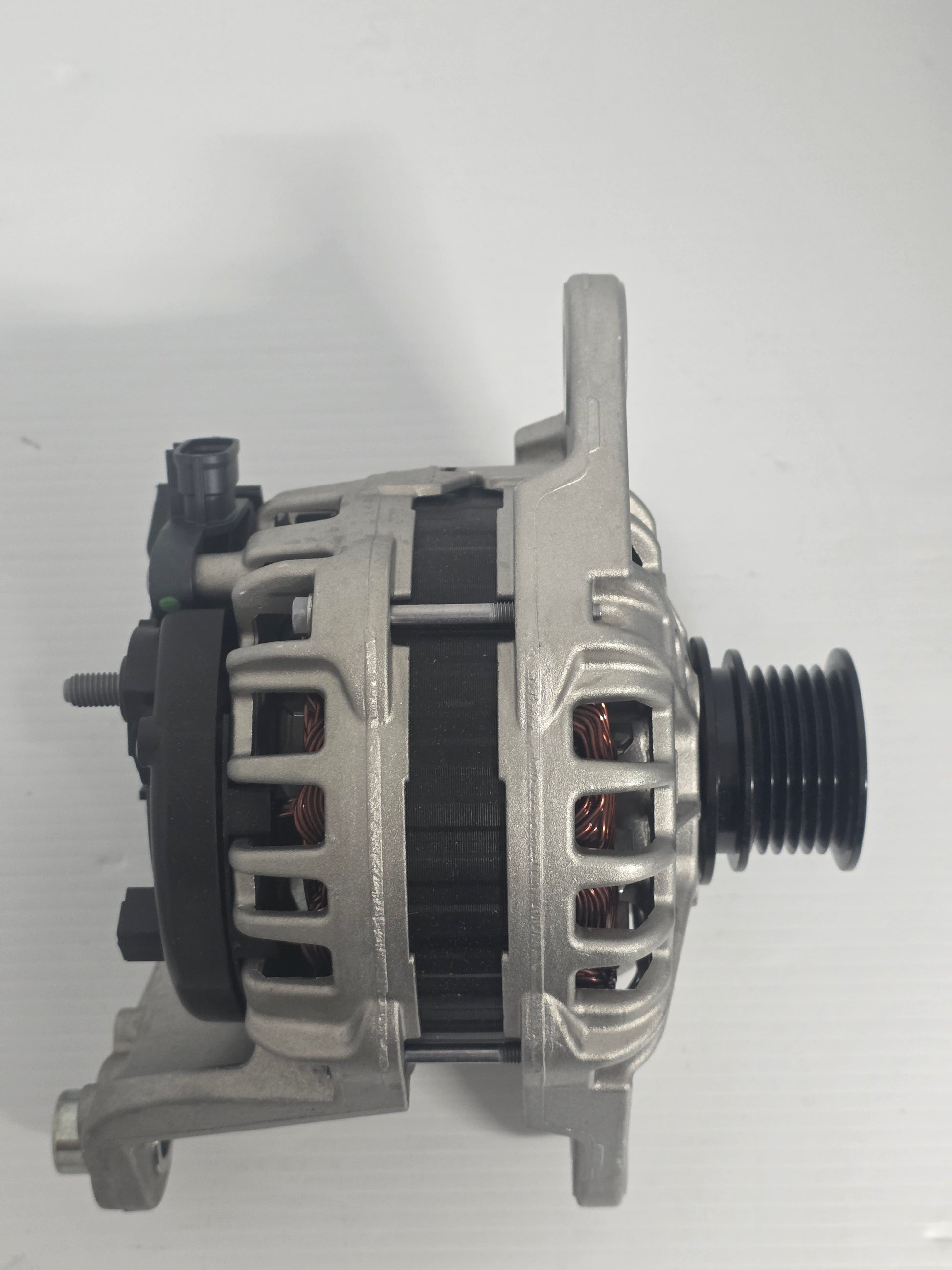

Genuine Volvo Penta 14 V alternator weighing 6.416 kg, listed for 30 D series engine applications. The 14 V rating distinguishes it from the 28 V unit covering the same engines - only 270 grams apart, so check the voltage.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 14 V alternator
• 6.416 kg
• Listed for 30 D series engine applications
• The 28 V alternator 22906753 covers the same 30 engines at 6.686 kg - only 270 grams apart, so check the voltage

🔌 Function

Belt driven from the engine, it generates the charging current for the batteries and supplies the boat's electrical load while the engine runs.

⚠️ Common Signs of Failure

• Batteries not holding charge, or the warning lamp staying on
• No rise in battery voltage with the engine running
• Growl, whine or squeal from the alternator area
• Burnt smell or scorched windings found on strip-down
• Rough bearings, or worn brushes and slip rings

🛠️ Service Notes

• Confirm the system voltage before ordering - weight will not separate this from the 28 V 22906753
• Check the belt, tension, cables and grounds before condemning the unit
• Never disconnect the battery with the engine running - it can destroy the regulator

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• Bosch: 1 986 A00 194
• Bosch / SEG: F000BL07CG
• Bosch / SEG: F000BL07CH

Aftermarket / Verified Equivalents

• AS-PL: A01335(SEG)
• Olsson Parts: 116078
• FridayParts: FPCY2507208

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
