22928976 Control | Genuine Volvo Penta Part

🔧 Product Description

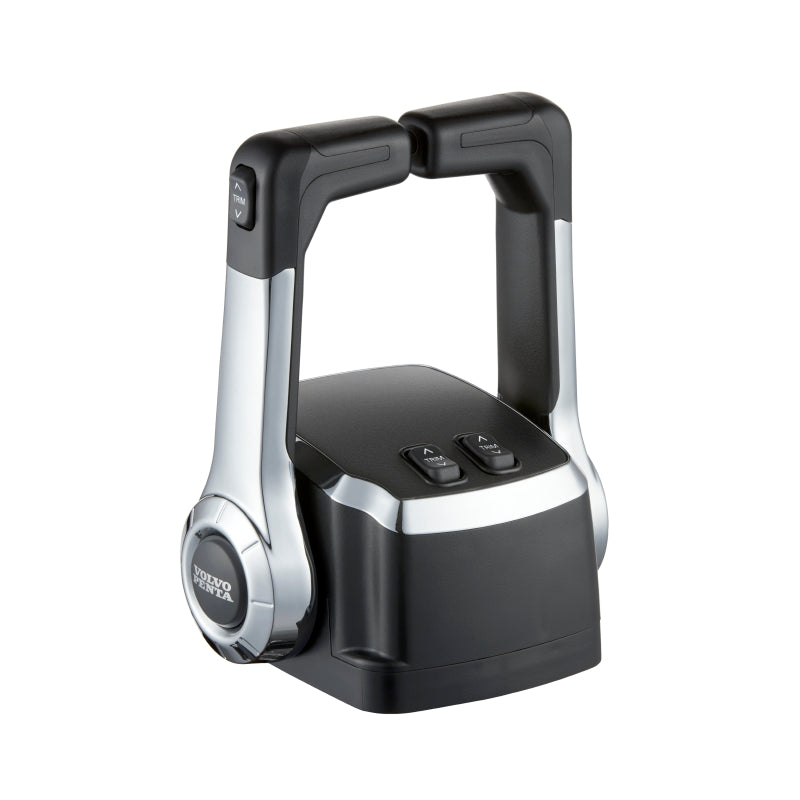

Genuine Volvo Penta Xact powerboat control for a twin top mount installation, with trim switches and a 6 m extension harness for the trim connection, weighing 5.216 kg. The twin configuration is what makes it nearly double the weight of the single top mount 22928974, at 2.994 kg. As well as the neutral safety switch, neutral warm-up release, trim and tilt buttons and adjustable friction brake carried across the Xact range, the twin top mount adds a master trim and tilt switch that trims both drives together. It supersedes 3849409.

⚙️ Key Features

• Xact powerboat control, top mount, twin installation, with trim switches
• Includes a 6 m extension harness for the trim connection
• Master trim and tilt switch trims both drives together
• Neutral safety switch and neutral warm-up release
• 5.216 kg, against 2.994 kg for the single top mount 22928974
• Supersedes 3849409
• Neutral warm up - release button for warming the engine in neutral position
• Neutral safety switch - electrical neutral position switch, prevents the engine being started in gear
• Trim and tilt button - tactile switch for simple operation of the drive's trim and tilt
• Master trim and tilt - tactile switch to trim both drives (twin drives only)
• Friction adjustment - adjustable friction brake for fine tuning
• Control mechanism pre-mounted
• Fits: mechanically operated engines in a twin installation with a top-mount helm

🔌 Function

Controls throttle and shift for a twin-engine installation from one top-mounted helm unit, with a trim switch for each engine in the handles.

⚠️ Common Signs of Failure

• One lever behaving differently from the other in detent feel or travel
• Engines not synchronising, with one lagging the other at matched lever positions
• A trim switch that works on one engine but not the other
• Sticky or notchy lever movement through the range
• Corroded pins or a chafed harness found behind the helm

🛠️ Service Notes

• Check the helm has twin engines before ordering - the single top mount is 22928974
• Where one lever misbehaves, swap the harness connections at the engine end to prove whether the fault is in the head or the loom
• Xact control cables are listed separately by length and are not supplied with the control
• All the Xact controls have pre-mounted control mechanisms
• The four Xact controls differ in mounting, engine count and whether the 6 m trim extension harness is included - check all three before ordering

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22928976 → Supersedes 3849409 → Supersedes 3888312 → Supersedes 3885626 → Supersedes 3856903 → Supersedes 3855626

OEM / Related Numbers

• 3849409 earlier number superseded by this part
• 3888312 earlier number superseded by this part
• 3885626 earlier number superseded by this part
• 3856903 earlier number superseded by this part
• 3855626 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
