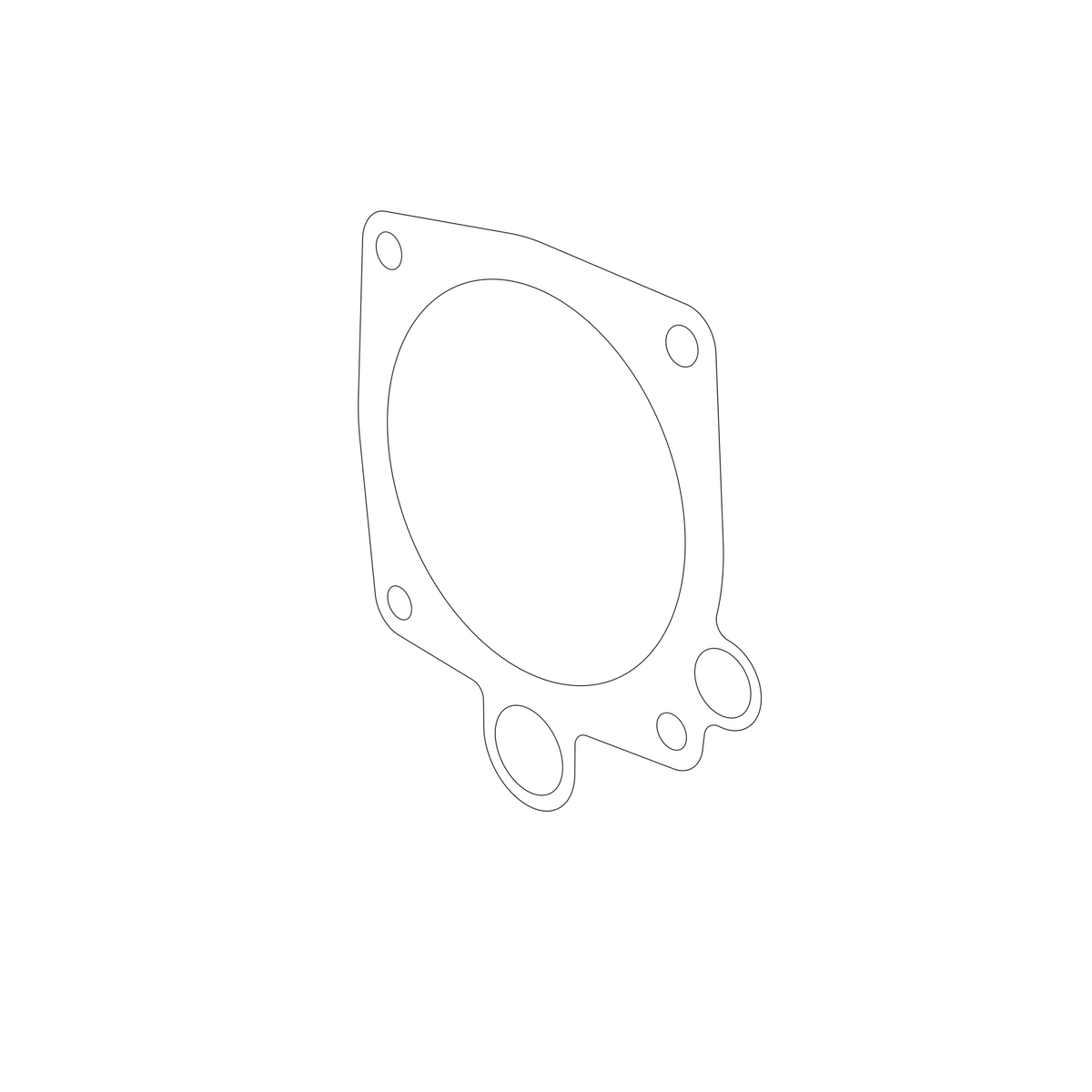

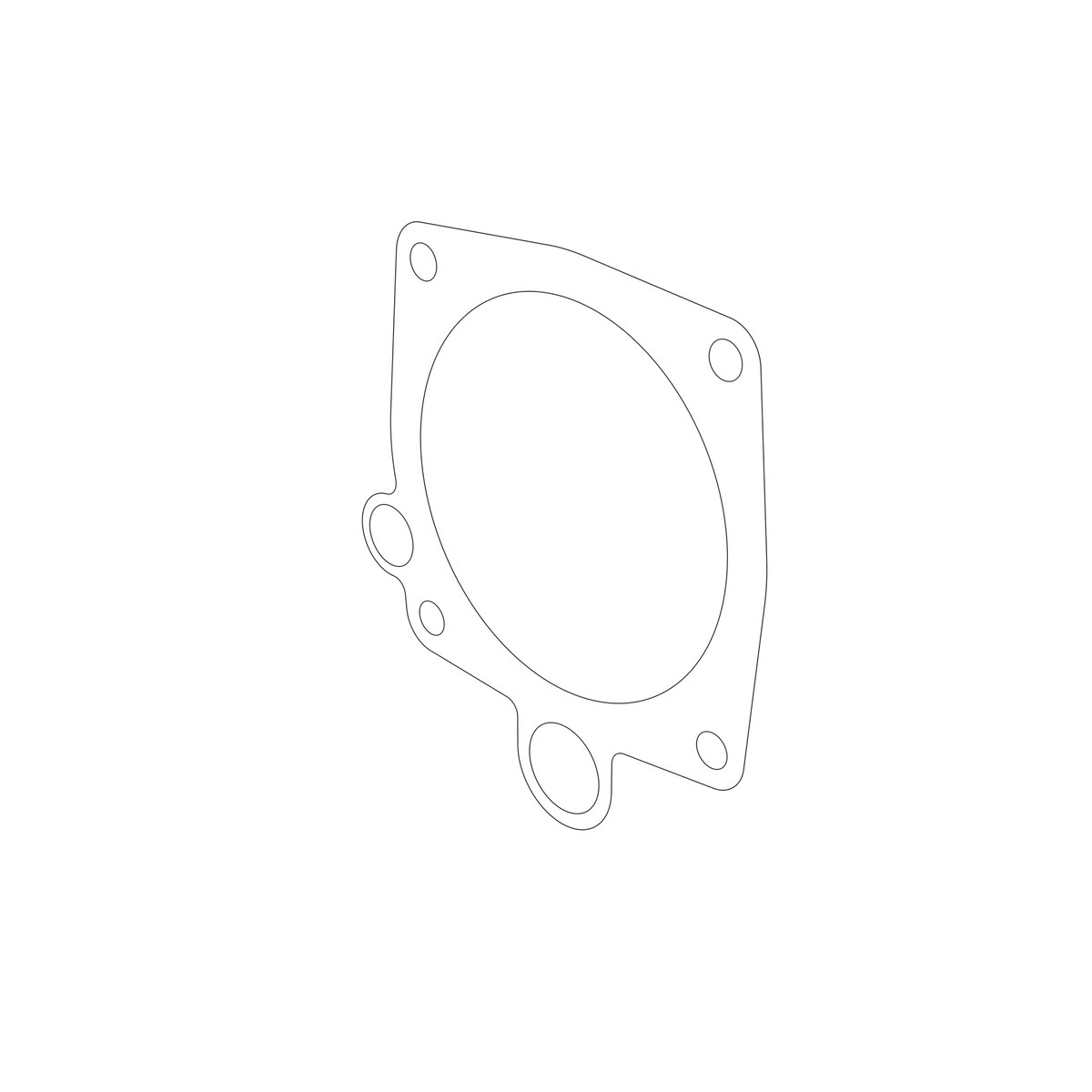

22946998 Shim | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta shim 0.10 mm thick, listed for 11 applications across D series engines and DPI drives.10 mm shim weighs 0.093 kg while the 0.25 mm shim weighs only 0.023 kg.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300A-G
• Volvo Penta D6-340A-G
• Volvo Penta D6-380A-G
• Volvo Penta DPI-A
• Volvo Penta D6-400A-G
• Volvo Penta D6-440A-G
• Volvo Penta D4-150A-G
• Volvo Penta D4-230A-G
• Volvo Penta D4-270A-G
• Volvo Penta D4-320A-G
• Volvo Penta D4-300A-G

• Engine Family: D, DPI
• HP Range: 150-440 HP

⚙️ Key Features

• Shim 0.10 mm thick
• Listed for 11 applications across D series engines and DPI drives
• One of four thicknesses covering these applications - 0.10, 0.15, 0.225 and 0.25 mm
• 0.093 kg, against 0.023 kg for the 0.25 mm shim, so weight does not track thickness
• TH=0.10mm (Volvo assembly listing)

🔌 Function

Sets the assembly clearance or preload by taking up a measured amount of the gap between two components.

⚠️ Common Signs of Failure

• Noise, rumble or play from the assembly the shim sets
• Clearance measuring outside specification on check
• Uneven or premature wear on the mating components
• Shim found dished, pitted or fretted on removal

🛠️ Service Notes

• Measure the clearance and select the thickness from the reading - do not order by weight, as the four shims do not run in weight order
• Sibling thicknesses are 22946999 at 0.15 mm, 22947000 at 0.225 mm and 22947001 at 0.25 mm

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
