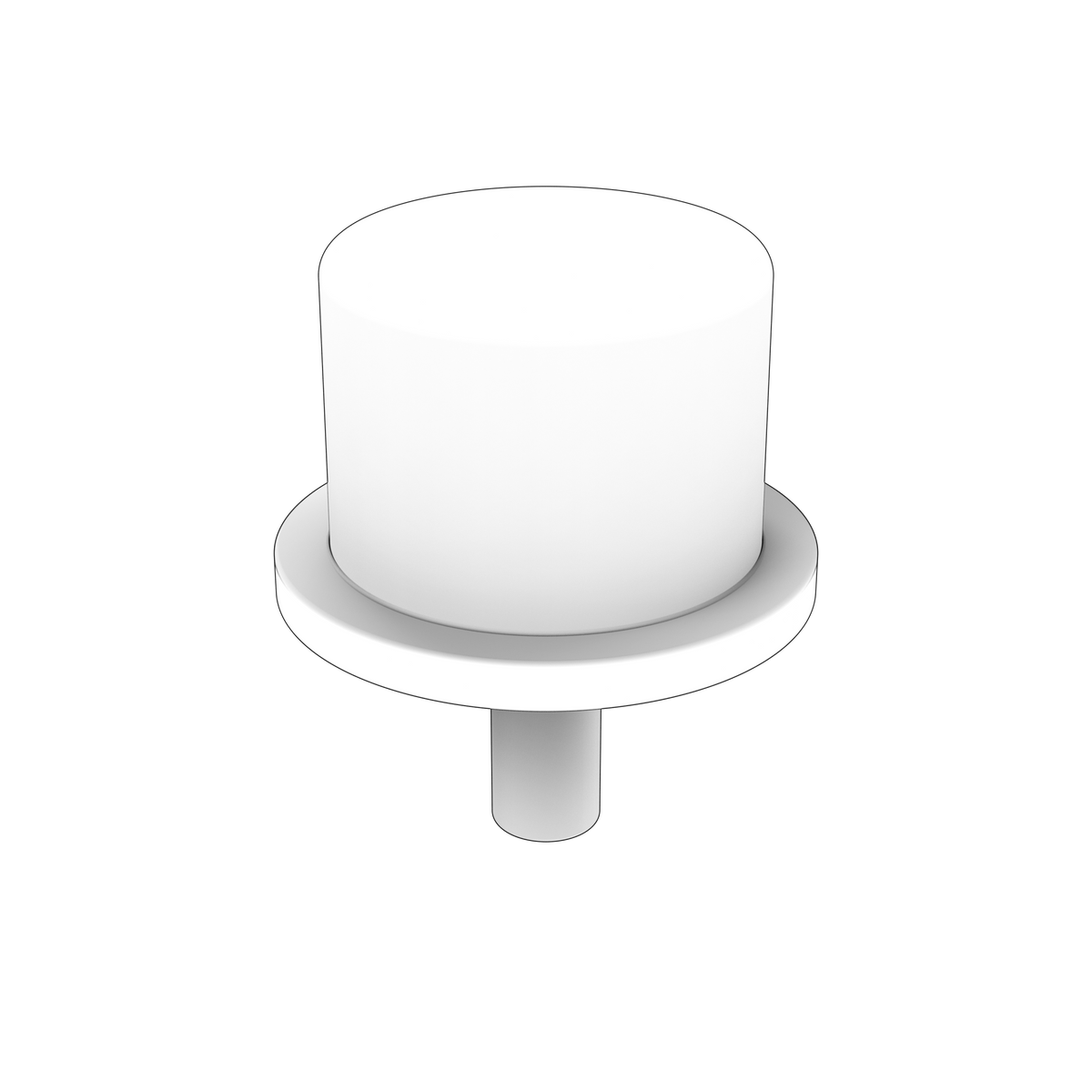

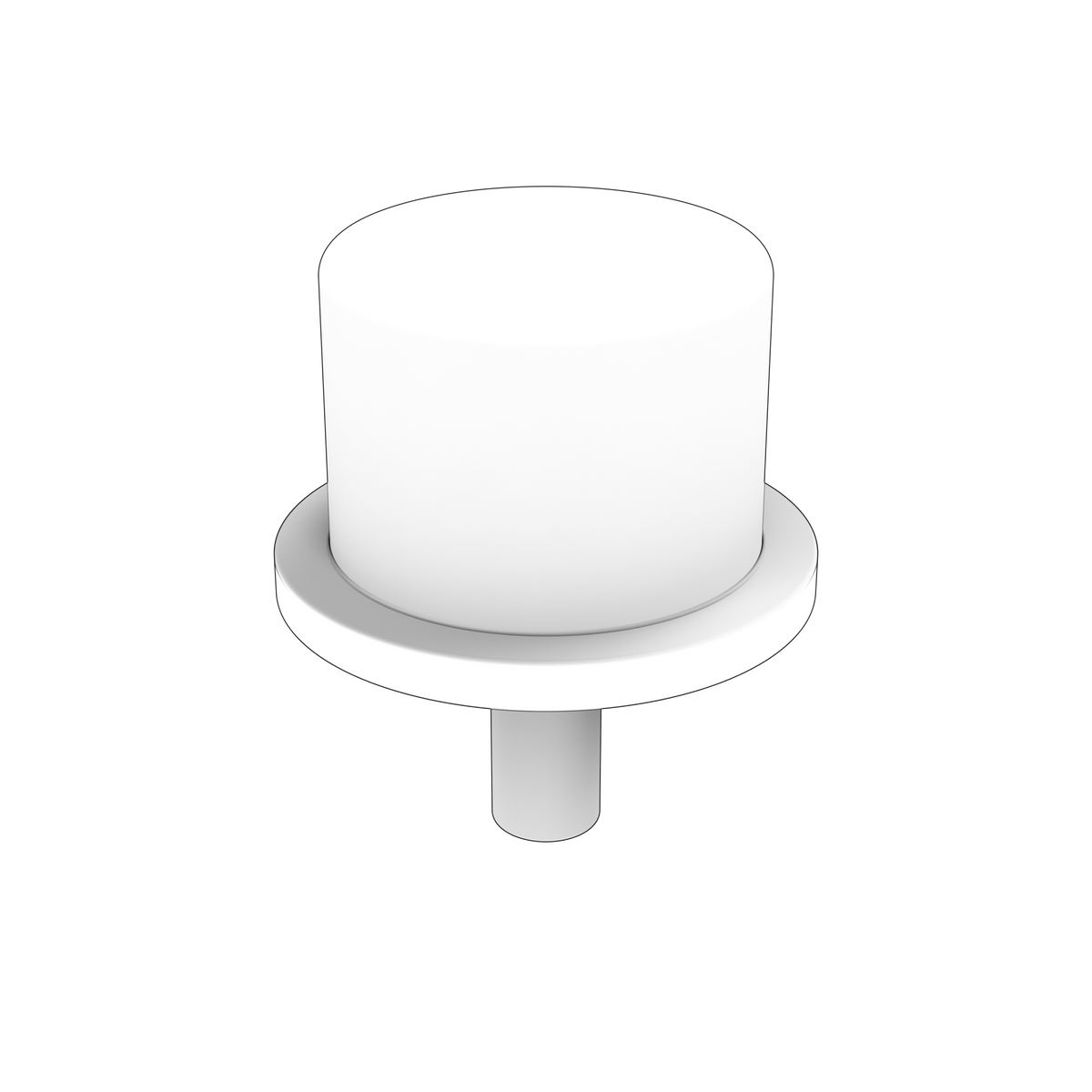

22953728 Thermostat | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta thermostat from the Cooling System group, weighing 0.234 kg and listed for 30 D series engine applications. It regulates coolant flow to hold operating temperature.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Thermostat from the Cooling System group
• 0.234 kg
• Listed for 30 D series engine applications

🔌 Function

Regulates coolant flow so the engine warms quickly and then holds its operating temperature, opening to the main circuit as the coolant reaches its rated temperature.

⚠️ Common Signs of Failure

• Engine slow to warm up, or never reaching normal temperature
• Overheating soon after start-up if the thermostat is stuck shut
• Temperature gauge swinging up and down instead of holding steady
• Poor cabin or accommodation heat where a heater circuit is fitted
• Thermostat found stuck, corroded or with a broken spring when removed

🛠️ Service Notes

• Test a suspect thermostat in hot water and watch it open before condemning it, and check for airlocks and a blocked circuit at the same time
• Renew the sealing ring or gasket with the thermostat, and refit it the right way up so the bleed hole sits at the top
• Bleed the system carefully after refilling, as trapped air gives the same symptoms as a failed thermostat

🔄 Supersession & Cross Reference

Other-Brand OEM Numbers

• Valeo: 820546
• Behr: 240279
• MAHLE: THD580
• MAHLE: TX3779

Aftermarket / Verified Equivalents

• CALORSTAT by Vernet: THS16965.79
• NRF: 725099
• VEMO: V20-99-0172
• Motorad: 4047-79
• Tridon: TT459-174P

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
