229826 Kohler Impeller | Genuine OEM Marine Part

🔧 Product Description

Genuine Kohler Marine Seawater-Pump Impeller Kit - Part Number: 229826

Genuine Kohler flexible seawater-pump impeller kit used on selected Kohler marine generator sets. The neoprene 12-blade impeller draws raw water through the heat exchanger and wet-exhaust cooling circuit.

The impeller measures approximately 62.5mm in diameter and 22mm in width and uses a 16mm keyed hub. Pump configuration must be compared with the removed impeller because selected generator models were produced with more than one seawater-pump arrangement.

⚙️ Key Features

• Genuine Kohler seawater-pump service kit
• 12-blade neoprene flexible impeller
• Approximate diameter: 62.5mm
• Approximate width: 22mm
• Keyed 16mm hub configuration

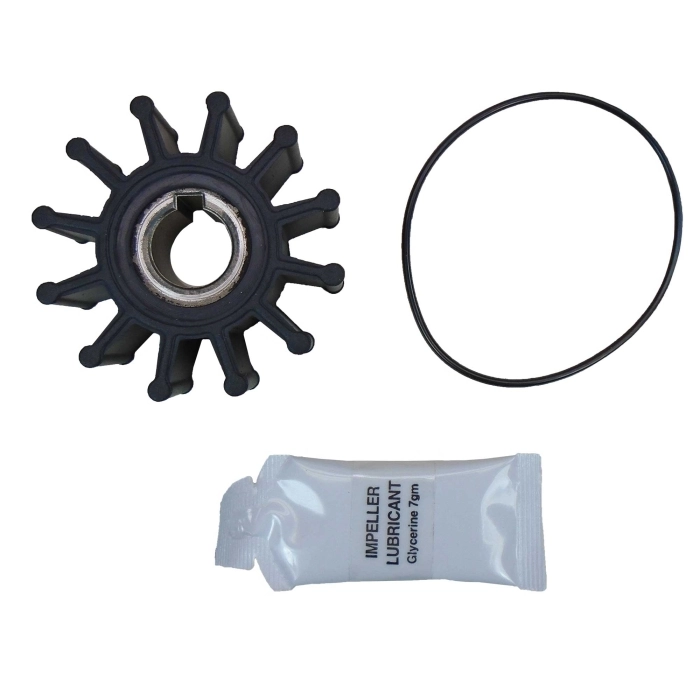

Kit Contents

• 1 × Flexible seawater-pump impeller — serviced under Kohler kit number 229826
• 1 × Pump-cover sealing O-ring or gasket — supplied under kit number 229826; not separately identified by Kohler in accessible service data
• Installation lubricant — supplied with applicable genuine kit packaging; no separate Kohler service number

🚤 Compatibility

Commonly used on

• Kohler diesel and petrol marine generator seawater pumps

Typically suits diesel generator models

• 5EFKOD
• 6EKOD
• 7EFKOZD
• 9EKOZD and 9EFKOZD
• 11EKOZD and 12EFKOZD
• 13.5EFKOZD and 14EKOZD
• 16EKOZD and 17EFKOZD
• 18EFKOZD
• 20.5EFKOZD and 21EKOZD
• 24EKOZD

Also used on selected petrol generator models equipped with the applicable pump:

• 8E, 10E, 12.5E and 12.5CF — serial number 296899 and later
• 15C, 16CF and 20C
• Generator Type: Marine petrol and diesel generator sets
• Pump Note: Compare blade count, hub key, diameter, width and pump-cover arrangement before installation.

🔌 Function

The flexible impeller creates suction at the seawater inlet and circulates raw water through the generator's heat exchanger and wet exhaust.

⚠️ Common Signs of Failure

• Reduced or absent exhaust-water discharge
• Generator overheating or high-temperature shutdown
• Cracked, missing or permanently bent impeller blades
• Pump fails to prime after launch
• Squealing or abnormal pump noise
• Broken blade fragments found in downstream hoses or heat exchanger

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 229826 (current documented Kohler impeller-kit reference)

OEM / Related Numbers

• Kohler pump assembly reference: GM46962 on selected petrol generator applications

Aftermarket / Verified Equivalents

• Sherwood: 09000K / 9000K
• Westerbeke: 302875 / 200175 / 42175
• Onan: 132-0271
• CEF: 500165 / 500165G / 16.194.48
• Sierra Marine: 23-2002 / 23-3303
• JMP: 7172-01
• JMP kit: 7172-01K / 7172K
• ANCOR: AN4988
• DJ Pump: 09-106-1201
• Albinus: 06-01-015

Verified JMP 7172-01K Kit Components

• Impeller: JMP 7172-01
• Gasket: JMP GAK0023
• O-Ring: JMP ORG0032
• O-Ring: JMP ORG0039

📦 Condition

• Genuine Kohler Marine impeller kit
• Brand new
• Supplied in original or equivalent protective packaging
