23-89574 Aftermarket Mercruiser Power Trim Ram Bushing 23-807073 | Sawley's Select Marine Parts

🔧 Product Description

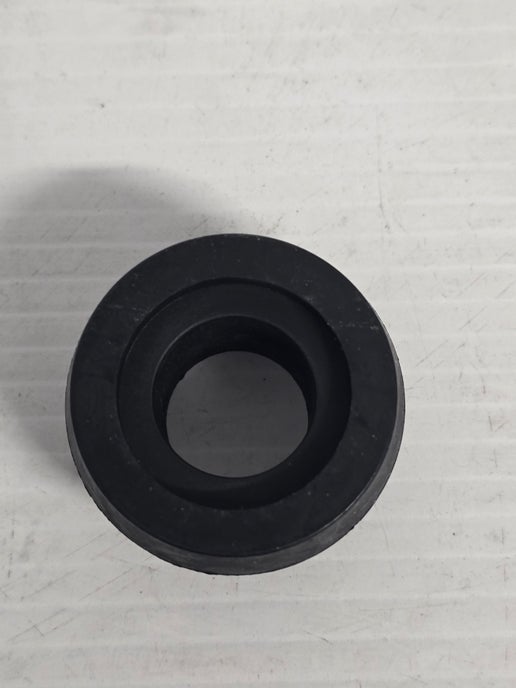

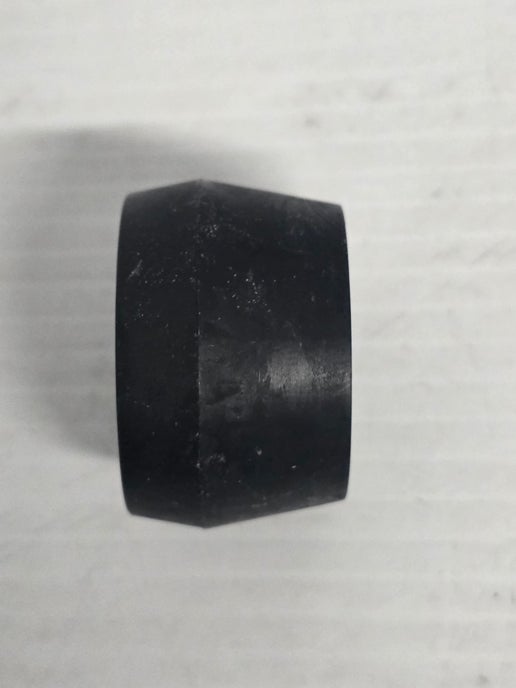

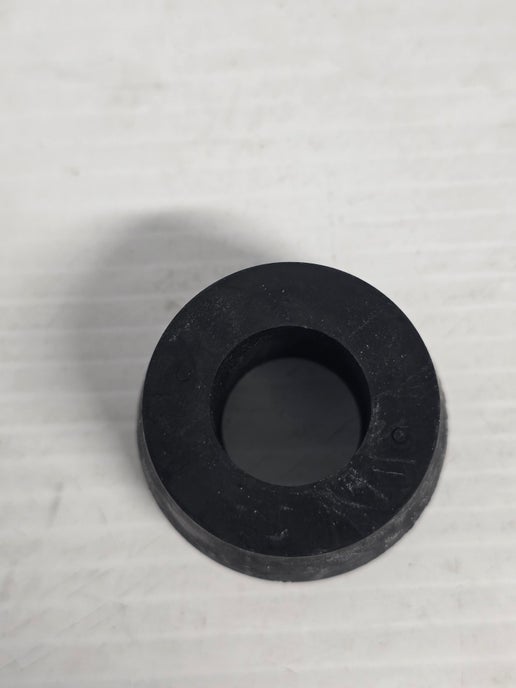

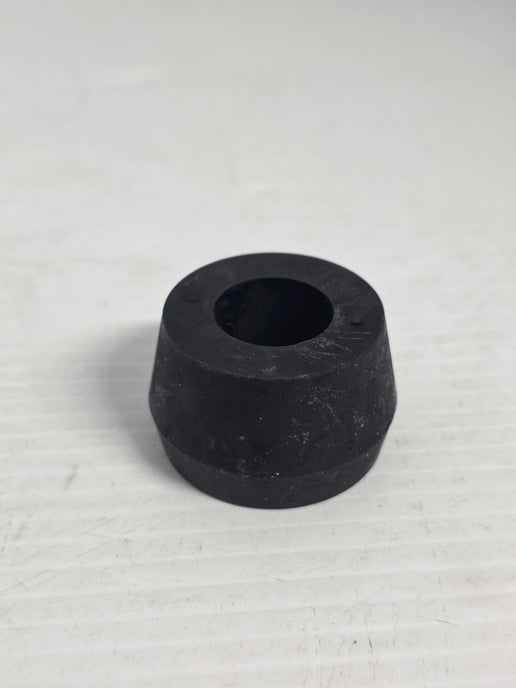

Aftermarket replacement Small Trim Ram Pivot Bushing - Replaces Part Number: 23-89574

New aftermarket small rubber trim-cylinder pivot bushing replacing MerCruiser 23-89574. It is used in early MC-1 front and rear anchor-pin systems.

⚙️ Key Features

• Small early-style trim-ram bushing

• Used on MC-1 drives with 3/8-24 anchor hardware

• Four bushings normally service both cylinders at one anchor pin

• Fits GLM front kit 21310 and rear kit 21390

• Not interchangeable with later large bushing 23-99291T or Bravo bushing 23-807073

🧰 Kit / Assembly Contents

• 1 × Small trim-cylinder pivot bushing - P/N 23-89574

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 23-89574 (MerCruiser OEM bushing reference)

OEM / Related Numbers:

• GLM 21310

• GLM 21390

Aftermarket / Verified Equivalents:

• GLM small MC-1 trim bushing

• Recmar: REC23-89574

🚤 Compatibility

Commonly used on:

• Early MerCruiser MC-1 trim-cylinder anchor systems

Typically suits:

• Engine / Drive models:

• 120HP-260HP MC-1 drives from approximately 1970-1982

• Front and rear anchor-pin assemblies using pins 17-45735 and 17-45738

• HP / Drive Range: 120HP - 260HP

• System Type: Early MerCruiser dual trim-cylinder pivot system

• Year Range: 1970 - 1982

• Serial / Component Identification: Corrected from the supplied title: 23-89574 is not the later 23-807073 Bravo bushing.

🔌 Function

The anchor-pin and bushing components support the trim-cylinder pivot, maintain alignment and allow the cylinder to articulate without excessive metal-to-metal movement.

Common signs of failure / service requirement:

• Excessive play at the trim-cylinder pivot

• Knocking or clunking while trimming

• Split, flattened or missing bushings

• Corroded or scored anchor pin

• Trim cylinders no longer remain aligned

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
