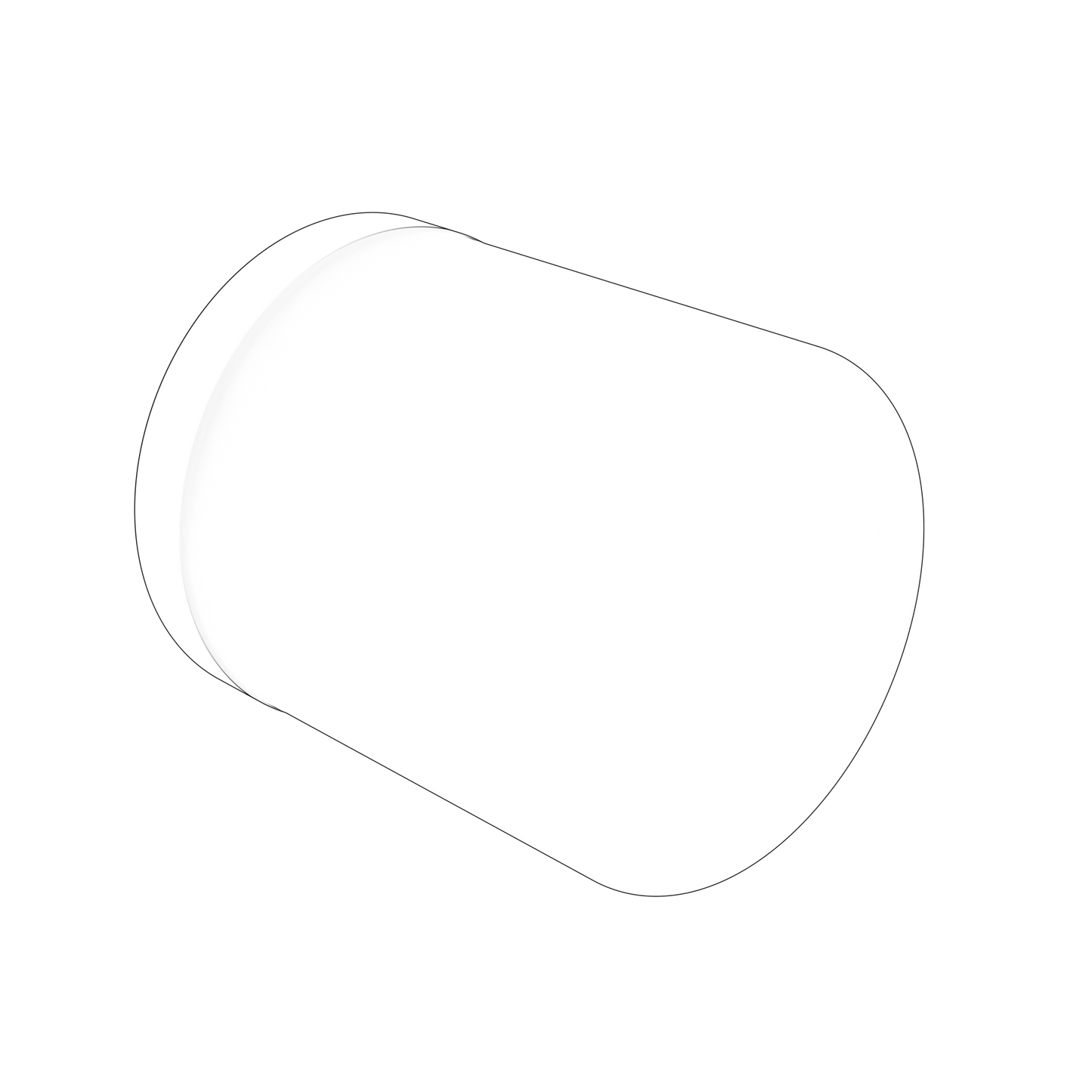

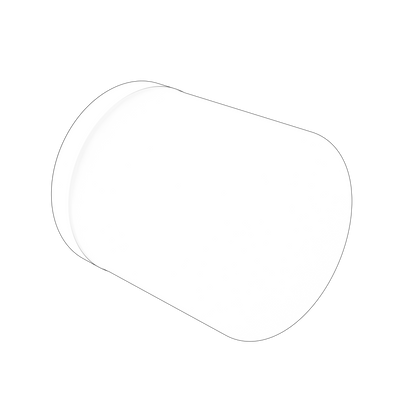

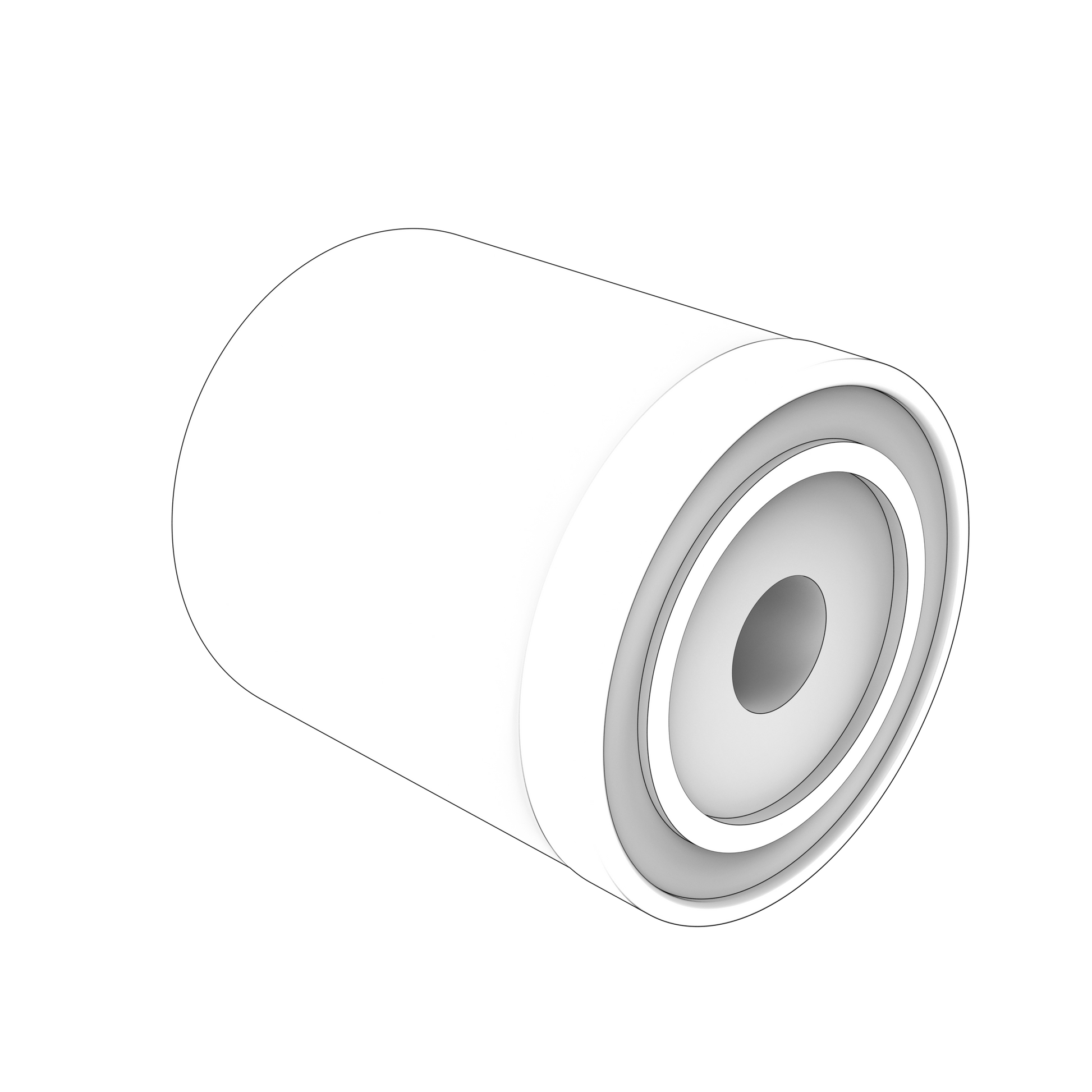

23005191 Oil Filter | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta oil filter with higher filtration, weighing 0.794 kg and listed for 35 applications across IPS pod drives and D series engines. The accessories catalogue prints it in the Volvo Penta IPS block as the oil filter for the IPS15, IPS2, IPS20, IPS3 and IPS30; the IPS1 takes 22057107 and the IPS10 takes 22863663. The higher filtration specification is the reason this filter exists, so it is not equivalent to the earlier standard element.

🚤 Compatibility

• Engine Family: IPS, D

Full model list at the end of this description.

⚙️ Key Features

• Listed as the oil filter for the IPS15, IPS2, IPS20, IPS3 and IPS30
• The IPS1 filter is 22057107 and the IPS10 filter is 22863663
• Higher filtration specification than the earlier element
• 0.794 kg
• 35 applications across IPS pod drives and D series engines
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Oil filter
• Fits: Volvo Penta IPS (IPS15/2/20/3/30)

🔌 Function

Filters the engine oil, keeping wear debris and carbon out of the bearings and oilways.

⚠️ Common Signs of Failure

• Oil pressure light flickering at idle when hot
• Filter can weeping at the seal or the seam
• Element found collapsed, split or by-passing on strip-down
• Heavy sludge or metallic glitter caught in the media
• Oil dark and thick well before the service interval

🛠️ Service Notes

• The higher filtration specification is the reason this filter exists, so it is not a like-for-like swap for the older element
• Confirm the pod generation before ordering - IPS1 and IPS10 take different filters
• Renew with the oil at the scheduled interval, oil the seal, and hand-tighten to the mark rather than using a strap wrench
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B4-A MP, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta IPS15-C, IPS15-B, IPS15-A
• Volvo Penta IPS2-C, IPS2-A, IPS2-B
• Volvo Penta IPS20-D, IPS20-E
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS30-E, IPS30-D
