23040335 Tachometer | Genuine Volvo Penta Part

🔧 Product Description

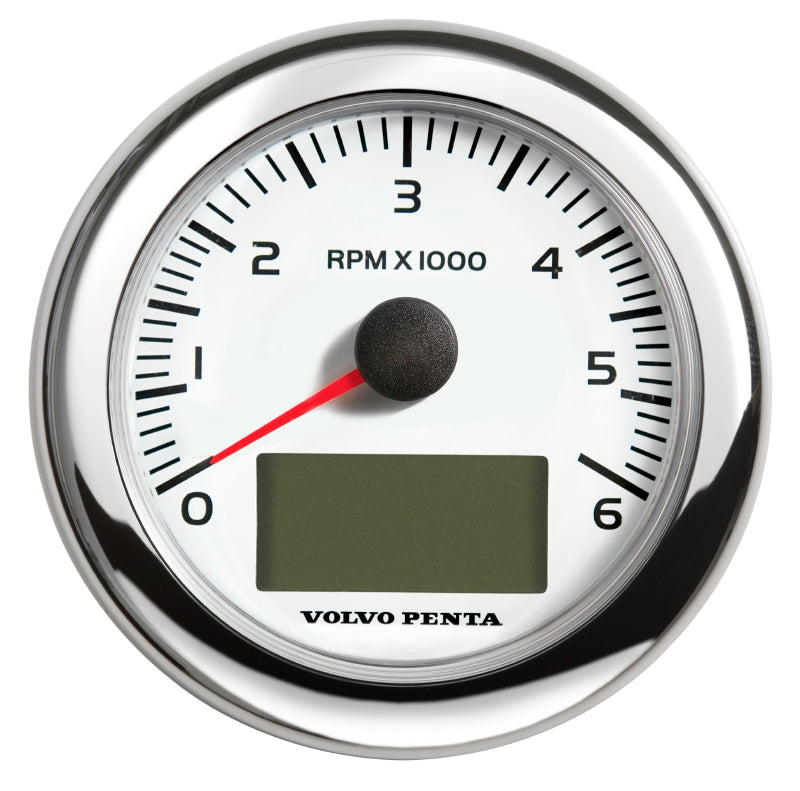

Genuine Volvo Penta 85 mm tachometer with a white dial and a 0-6000 rpm scale, weighing 0.256 kg and listed for 15 V series applications. It belongs to the instrument range for non-EVC petrol engines, built on the EVC design but able to communicate with petrol applications produced from 2008 onwards. A monochrome display shows engine hours and instant fuel rate, and the built-in easy-link gateway lets drive trim, oil pressure, coolant temperature and charging voltage instruments be added to it. It supersedes 22891822.

🚤 Compatibility

Typically suits:

• Volvo Penta V8-350-CE-R
• Volvo Penta V8-380-CE-R
• Volvo Penta V8-300-CE-R
• Volvo Penta V8-430-CE-R
• Volvo Penta V6-200-CE-P
• Volvo Penta V6-250-CE-P
• Volvo Penta V6-280-CE-P
• Volvo Penta V8-300-CE-P
• Volvo Penta V8-350-CE-P
• Volvo Penta V8-380-CE-P
• Volvo Penta V8-430-CE-P
• Volvo Penta V6-250-CE-O
• Volvo Penta V8-300-CE-S
• Volvo Penta V8-350-CE-S
• Volvo Penta V8-400-CE-R

• Engine Family: V
• HP Range: 200-430 HP

⚙️ Key Features

• 85 mm tachometer with a white face
• 0-6000 rpm scale
• Monochrome display for engine hours and instant fuel rate
• Easy-link gateway for drive trim, oil pressure, coolant temperature and charging voltage instruments
• For non-EVC petrol applications produced from 2008 onwards
• 0.256 kg
• Listed for 15 V series applications
• Supersedes 22891822
• Gauge diameter: Ø 85 mm
• Gauge family: Tachometers
• Gauge range: EVC gauge range
• 85 mm, 6000 rpm scale
• White dial
• Includes an easy-link gateway for drive trim, oil pressure, coolant temperature and charging voltage instruments
• For gasoline applications produced 2008 or later
• The other dial colour is 23040364
• Diameter: 85 mm
• Scale: 6000 rpm
• Dial colour: white
• Fits: non-EVC gasoline engines, applications produced 2008 or later

🔌 Function

Reads engine speed on a non-EVC petrol installation and displays it on a panel-mounted dial, while its easy-link gateway carries the signals for the additional instruments connected to it.

⚠️ Common Signs of Failure

• Needle dead, stuck or sweeping erratically with the engine running
• Backlighting dim, patchy or out altogether
• Hour or fuel rate display blank while the needle still works
• Condensation or a fogged lens behind the glass
• Added instruments dropping out together, pointing at the gateway rather than the gauges

🛠️ Service Notes

• Cable 23190000, the 7 m lead between engine and tachometer, is required and is not included, and neither is the front ring or the mounting items
• Black-faced 23040364 is the same instrument for the same engines, so choose by the colour of the rest of the panel
• Because the gateway feeds the other instruments, check this tachometer first if several added gauges go dead at once
• Front ring and mounting items are not included with the instruments and must be ordered separately
• Cable 23190000 (7 m) between engine and tachometer is required
• Extension cables from the tachometer to the additional instruments are 874759 at 1 m and 3807043 at 3 m
• In addition to the tachometer and speedometer, engine oil pressure, engine coolant temperature, drive trim position, fuel tank level and battery voltage instruments can be connected, all available with a white or black dial

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23040335 → Supersedes 22891822

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
