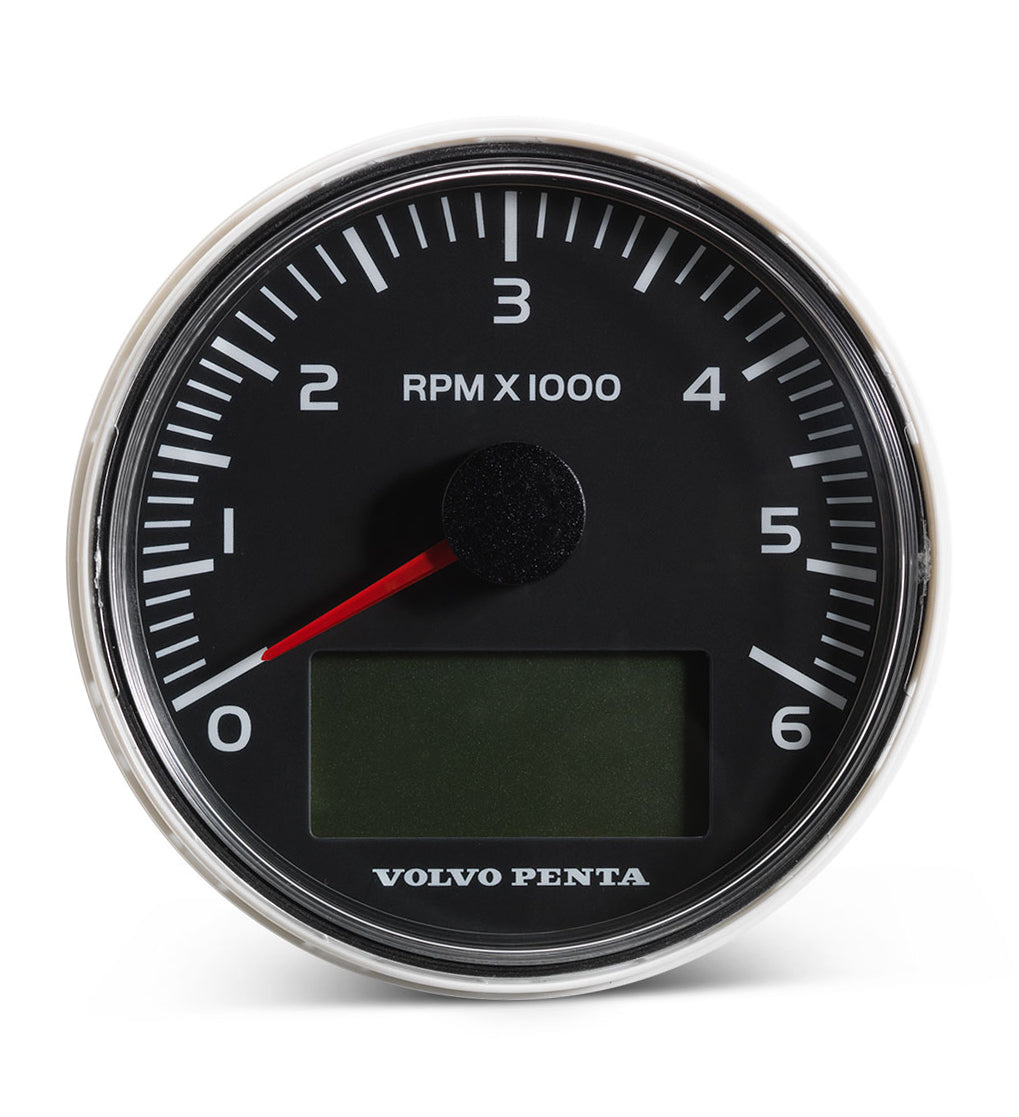

23040364 Tachometer | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta 85 mm tachometer with a black dial and a 0-6000 rpm scale, weighing 0.220 kg and listed for 15 V series applications. It is part of the instrument range for non-EVC petrol engines, which is based on the EVC instrument design but modified to communicate with petrol applications produced from 2008 onwards. Its monochrome display shows engine hours and instant fuel rate, and the built-in easy-link gateway allows drive trim, oil pressure, coolant temperature and charging voltage instruments to be connected. It supersedes 22891823.

🚤 Compatibility

Typically suits:

• Volvo Penta V8-350-CE-R
• Volvo Penta V8-380-CE-R
• Volvo Penta V8-300-CE-R
• Volvo Penta V8-430-CE-R
• Volvo Penta V6-200-CE-P
• Volvo Penta V6-250-CE-P
• Volvo Penta V6-280-CE-P
• Volvo Penta V8-300-CE-P
• Volvo Penta V8-350-CE-P
• Volvo Penta V8-380-CE-P
• Volvo Penta V8-430-CE-P
• Volvo Penta V6-250-CE-O
• Volvo Penta V8-300-CE-S
• Volvo Penta V8-350-CE-S
• Volvo Penta V8-400-CE-R

• Engine Family: V
• HP Range: 200-430 HP

⚙️ Key Features

• 85 mm tachometer with a black face
• 0-6000 rpm scale
• Monochrome display for engine hours and instant fuel rate
• Easy-link gateway for drive trim, oil pressure, coolant temperature and charging voltage instruments
• For non-EVC petrol applications produced from 2008 onwards
• 0.220 kg
• Listed for 15 V series applications
• Supersedes 22891823
• Gauge diameter: Ø 85 mm
• Gauge family: Tachometers
• Gauge range: EVC gauge range
• 85 mm, 6000 rpm scale
• Black dial
• Includes an easy-link gateway for drive trim, oil pressure, coolant temperature and charging voltage instruments
• For gasoline applications produced 2008 or later
• The other dial colour is 23040335
• Diameter: 85 mm
• Scale: 6000 rpm
• Dial colour: black
• Fits: non-EVC gasoline engines, applications produced 2008 or later

🔌 Function

Reads engine speed on a non-EVC petrol installation and displays it on a panel-mounted dial, while its easy-link gateway carries the signals for the additional instruments connected to it.

⚠️ Common Signs of Failure

• Needle dead, stuck or sweeping erratically with the engine running
• Backlighting dim, patchy or out altogether
• Hour or fuel rate display blank while the needle still works
• Condensation or a fogged lens behind the glass
• Several connected instruments dropping out at once

🛠️ Service Notes

• The 7 m engine-to-tachometer cable 23190000 is required with it, and the front ring and mounting items are ordered separately
• White-faced 23040335 covers the same engines, so the choice is panel colour rather than fitment
• Seal the panel cut-out properly on refitting — water behind the dial is what kills these
• Cable 23190000 (7 m) between engine and tachometer is required
• Extension cables from the tachometer to the additional instruments are 874759 at 1 m and 3807043 at 3 m
• In addition to the tachometer and speedometer, engine oil pressure, engine coolant temperature, drive trim position, fuel tank level and battery voltage instruments can be connected, all available with a white or black dial

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23040364 → Supersedes 22891823

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
