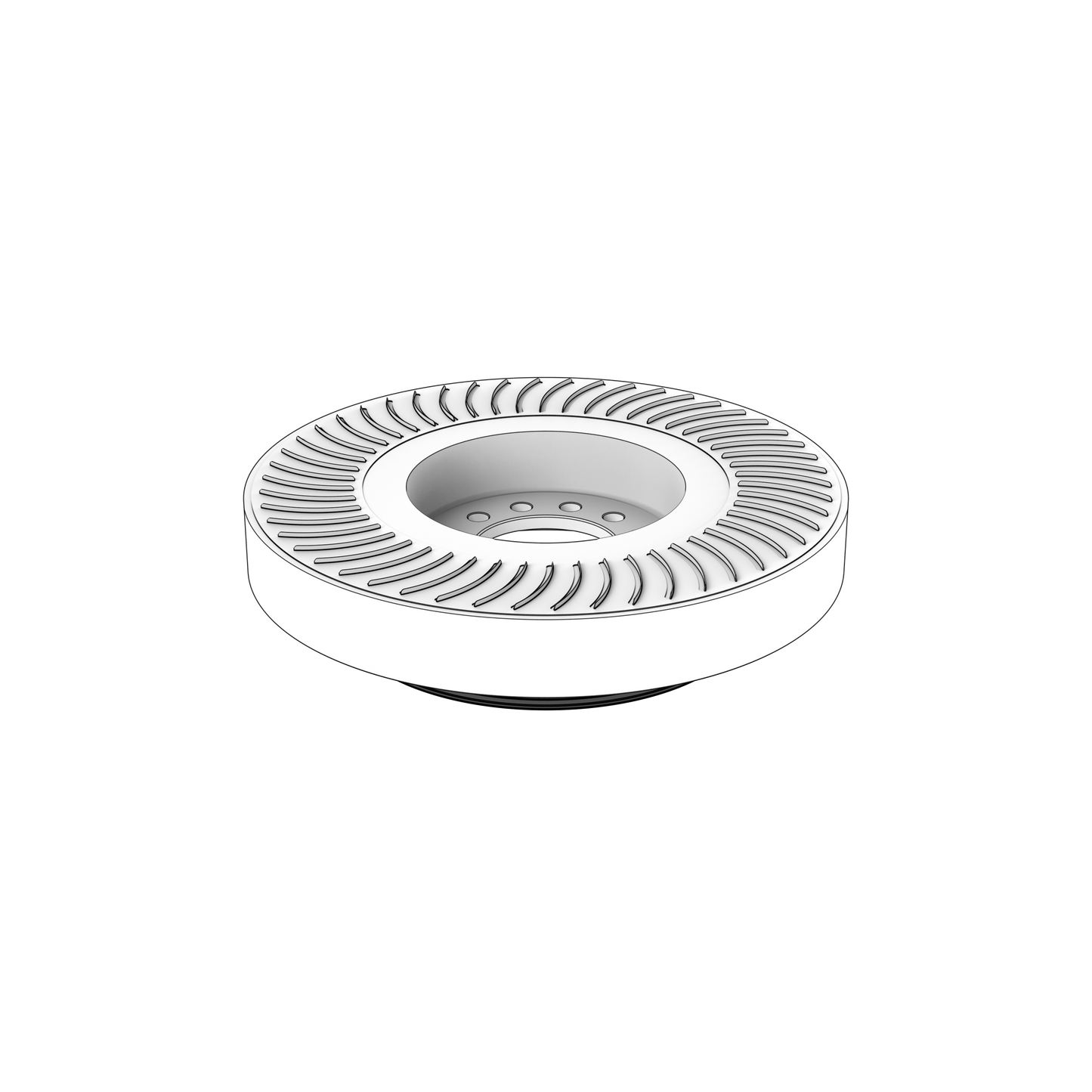

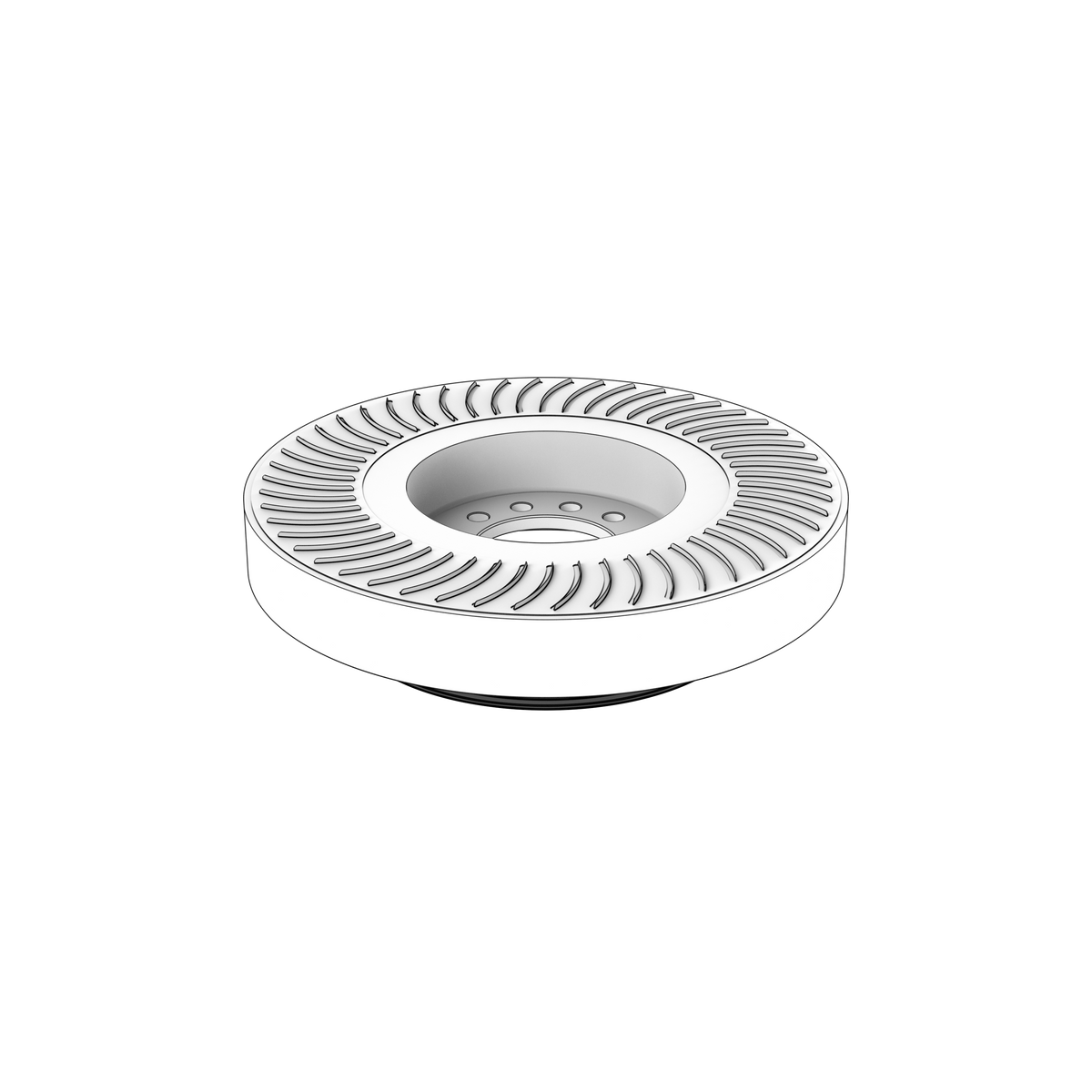

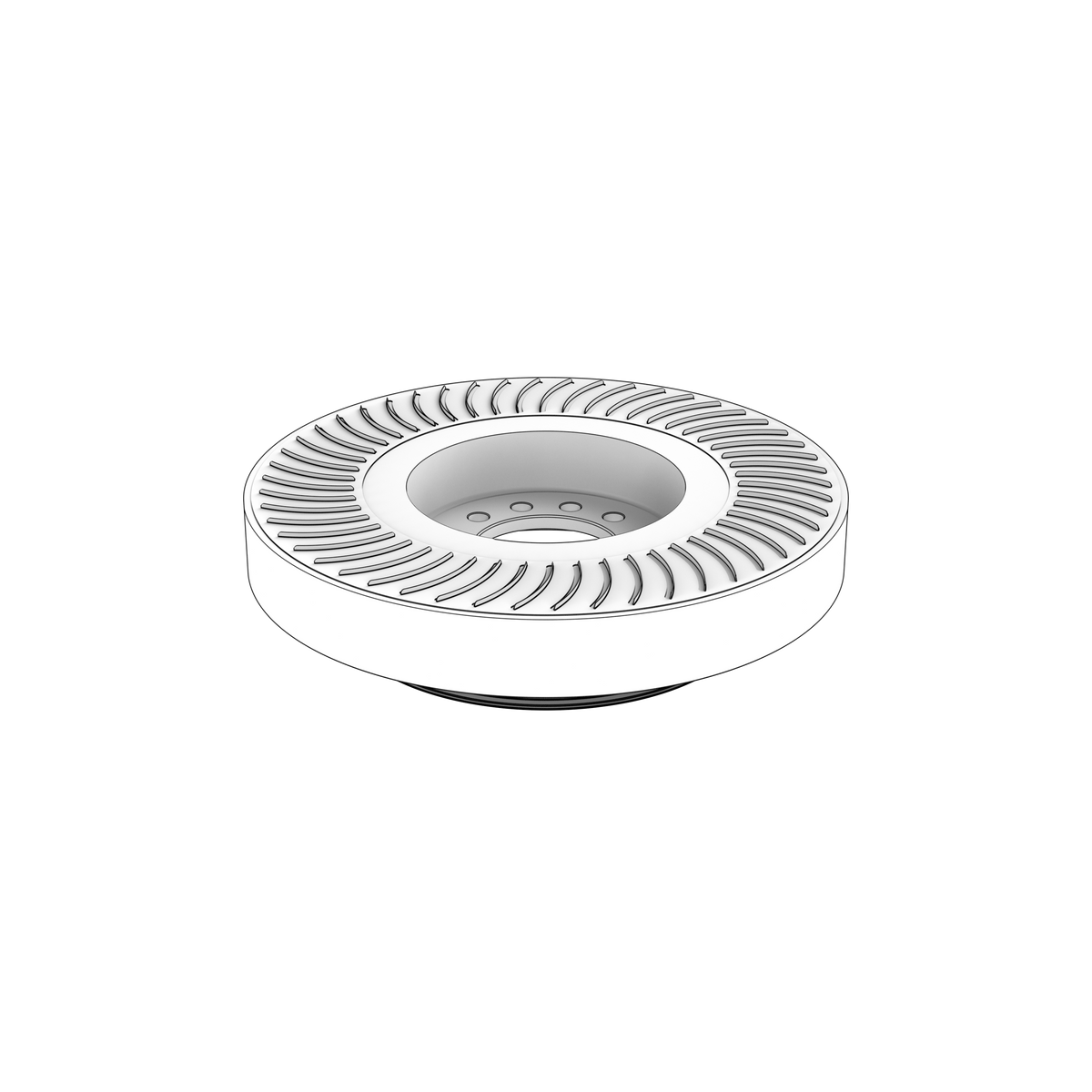

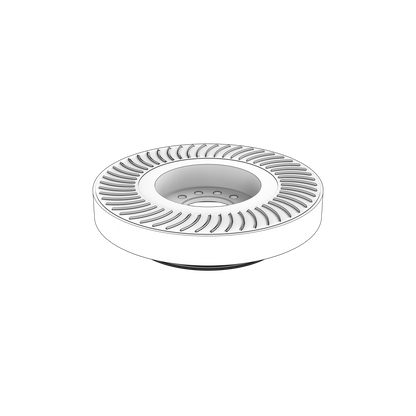

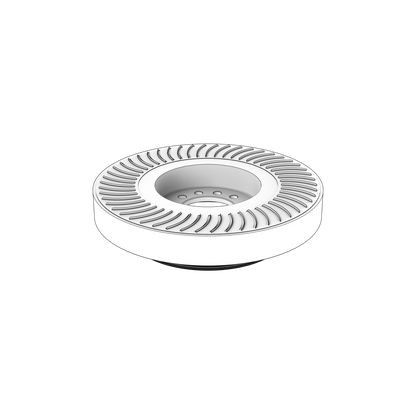

23049224 Vibration Damper | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta vibration damper from the Engine group, weighing 26.76 kg and listed for 34 D series engine applications. It supersedes part number 3594670. A degraded damper transmits torsional loads straight into the crankshaft.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Vibration damper from the Engine group
• 26.76 kg
• Listed for 34 D series engine applications
• Supersedes 3594670
• Heavy enough to need lifting help at the crankshaft nose

🔌 Function

Absorbs the torsional pulses the crankshaft receives from each firing stroke, damping them before they build into a resonance that would crack the crank.

⚠️ Common Signs of Failure

• A new rumble or booming note through the hull at a particular engine speed
• Wobble or run-out visible at the pulley with the engine idling
• Belt walking off the pulley or wearing on one side
• Rubber element found bulged, cracked or extruded out of the ring
• Fluid weeping from a viscous damper, or the outer ring found offset on strip-down

🛠️ Service Notes

• A damper is a wear item with a life, not a fit-and-forget part - check the timing marks and the outer ring position rather than assuming a quiet damper is a good one
• Renew the crankshaft nose bolts and seal if disturbed, and check the drive belts and their alignment once the new damper is on
• Fitting a damper cures the symptom only if the cause is the damper - check engine mounts and shaft alignment before condemning it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23049224 → Supersedes 3594670

OEM / Related Numbers

• 3594670 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP, D13C9-A MP
