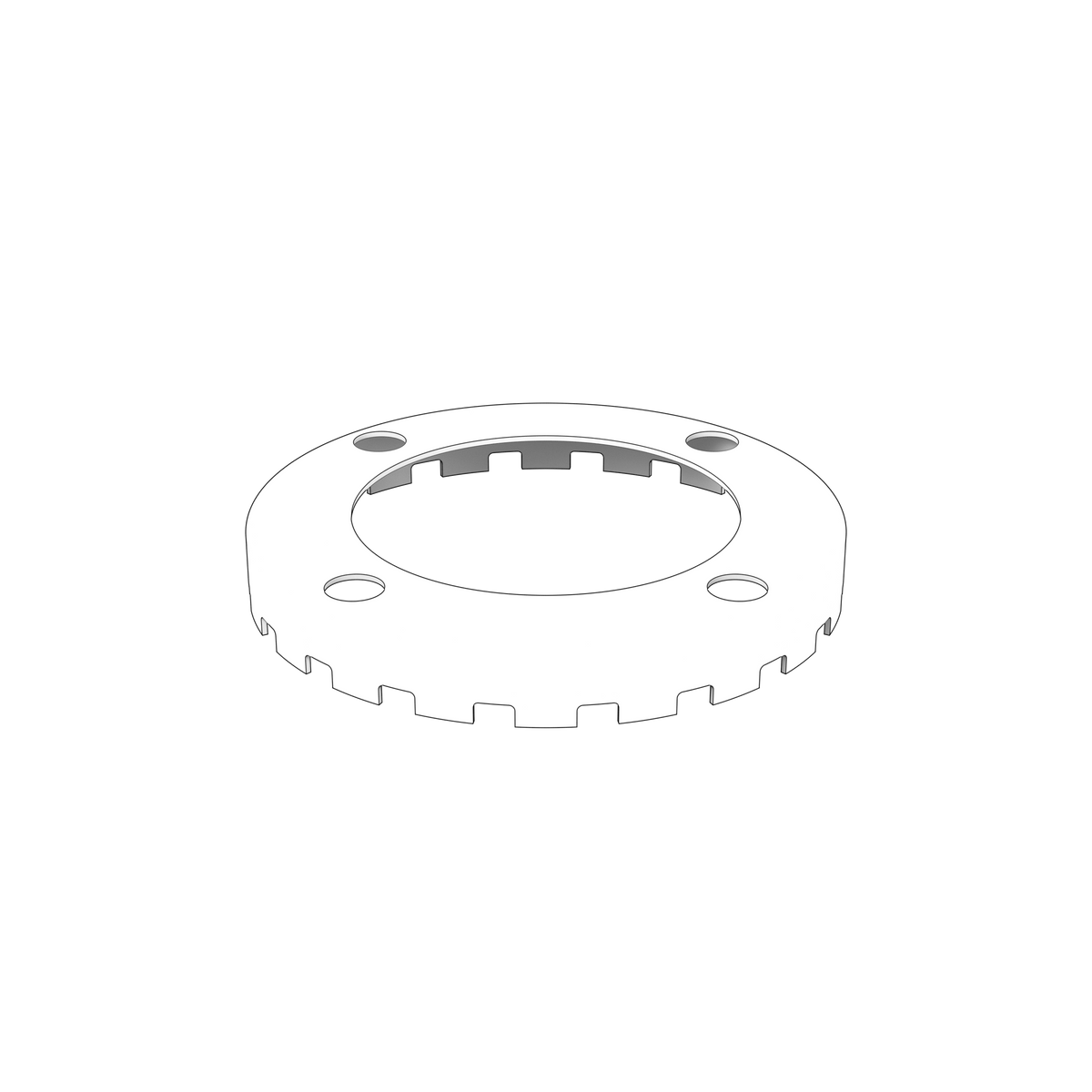

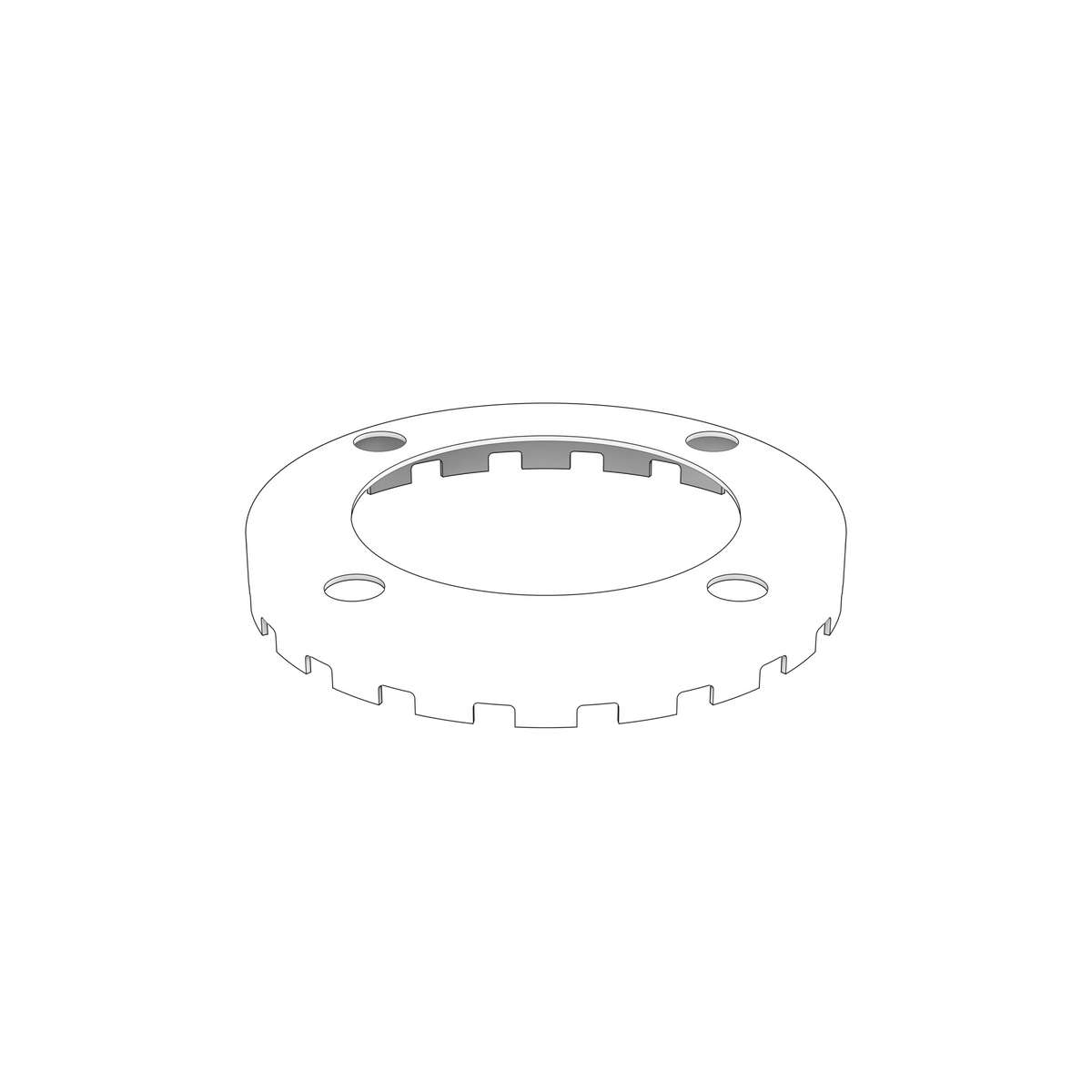

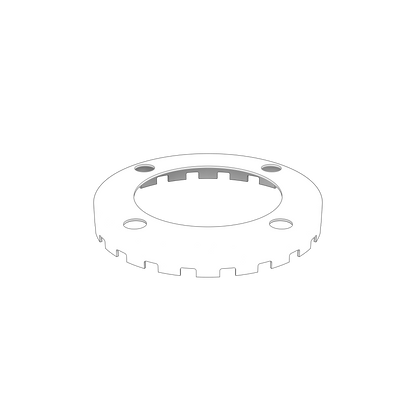

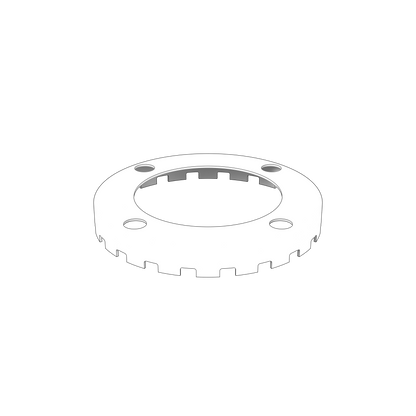

23062729 Line Cutter | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta line cutter for IPS 1, 95 mm / 3.7 in in diameter, in 316 stainless steel, 1 required per drive. The line cutter is an easy to install accessory that provides additional protection for your drive. It is designed to cut through ropes, fishing lines, plastic bags and nets before they can enter between the propellers and possibly cause damage to the propeller shaft sealing. It is mounted to the rear propeller, which creates a very efficient rotating cutting action, and installs using the existing locking bolts.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-300D-G
• Volvo Penta D6-340D-G
• Volvo Penta D6-380D-G
• Volvo Penta D6-440D-G
• Volvo Penta D6-480D-G
• Volvo Penta IPS10-A
• Volvo Penta IPS10-B

• Engine Family: D, IPS
• HP Range: 300-480 HP

⚙️ Key Features

• For IPS 1 and IPS 10 drives
• 95 mm / 3.7 inch diameter
• 316 stainless steel
• One required per drive
• 0.057 kg
• For Volvo Penta IPS 1.
• 316 stainless steel.
• Quantity 1 per drive.
• Cuts up ropes, fishing lines, plastic bags etc.
• Protects propeller shaft sealing.
• Easy to install using existing bolts.
• Requires no drilling.
• Adds no drag or fuel consumption.
• Material: stainless steel
• Fits: Volvo Penta IPS 1 (also listed in the type T/TS installation hardware for IPS 1 and IPS 10)

🔌 Function

Turns with the rear propeller and shears rope, net, line or weed as it is drawn in, before it can wrap the shaft and reach the propeller shaft seal.

⚠️ Common Signs of Failure

• Rope or weed still wrapping the shaft after a strike
• Cutting edges found blunt, chipped or rolled over
• Corrosion or heavy fouling growth over the blade
• Retaining screws loose or the cutter turning on the shaft
• Shaft seal damage found on lift-out, showing the cutter did not do its work

🛠️ Service Notes

• Order by drive size: the cutters run 95 mm for IPS 1 and IPS 10, 105 mm for IPS 15, 120 mm for IPS 2 and IPS 20, and 140 mm for IPS 3 and IPS 30
• Inspect and clean it at every lift-out and renew it once the cutting edges have rounded off
• Check the propeller shaft seal for line damage while the propeller is off
• Included as standard from serial number IPS 1 = 3940018643.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23062729 → Supersedes 21686492

OEM / Related Numbers

• 21686492 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
