23111-88L11 23111-88L10 Suzuki DF60A Clutch Rod | Genuine Used Part

🔧 Product Description

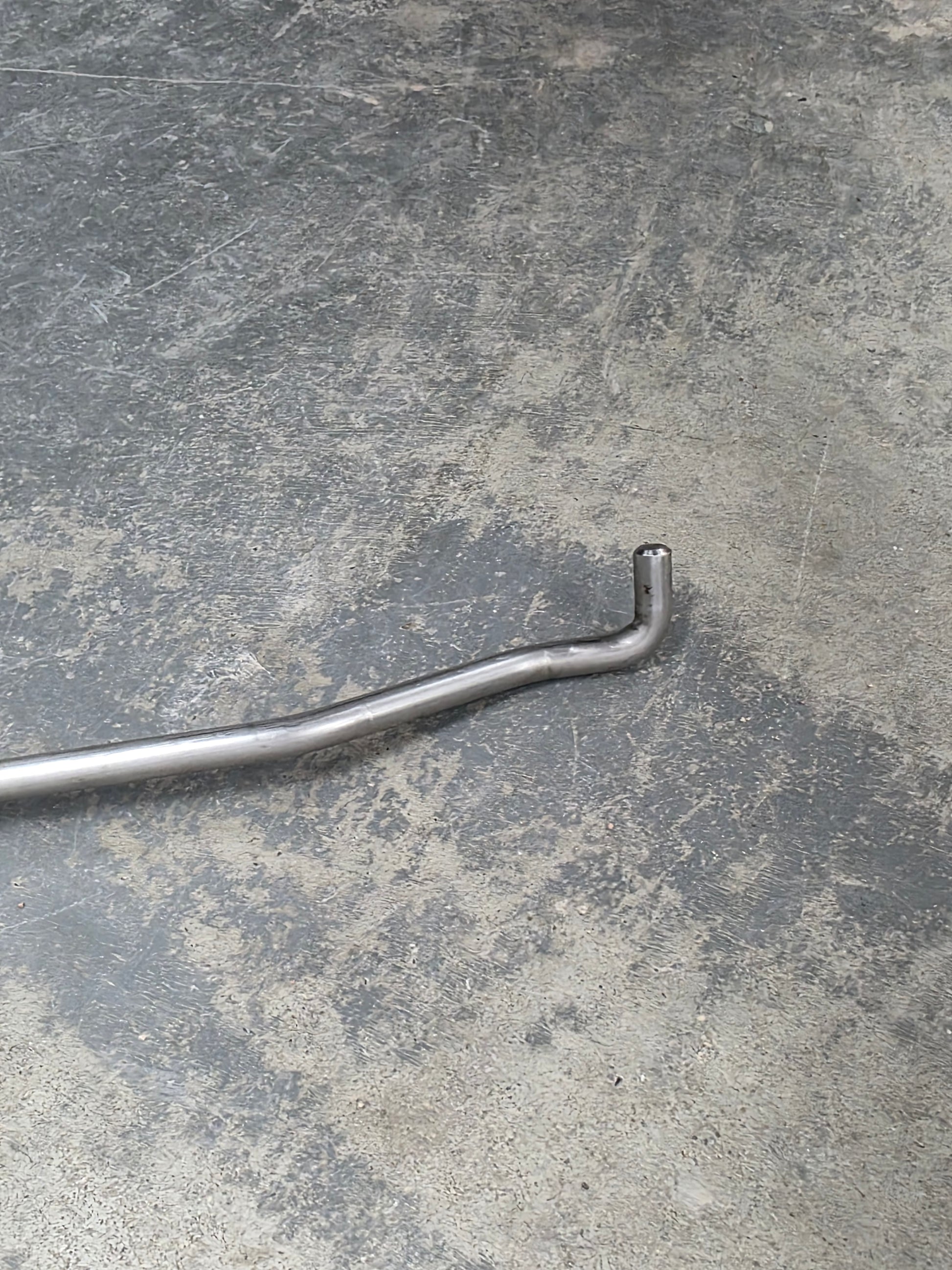

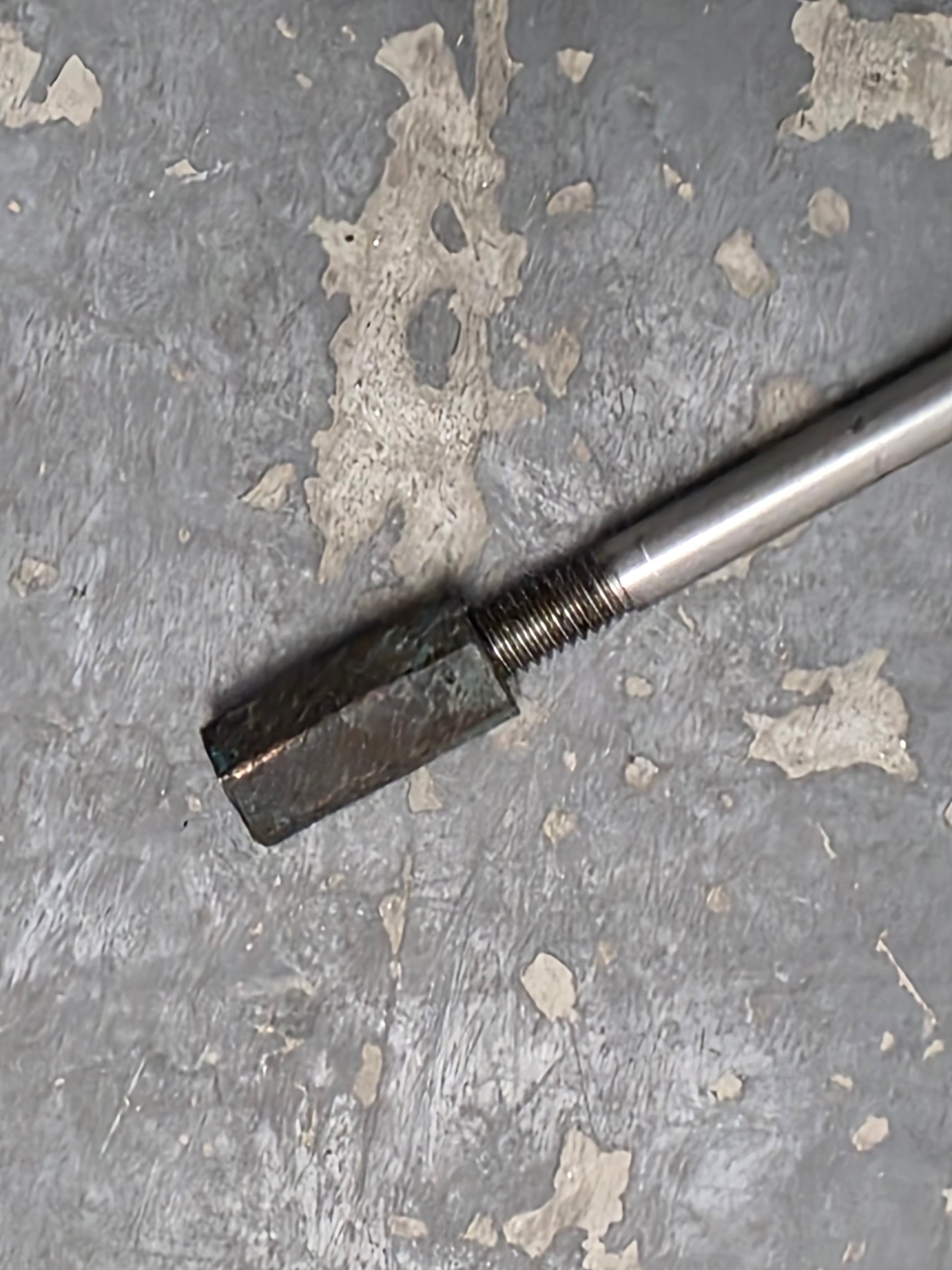

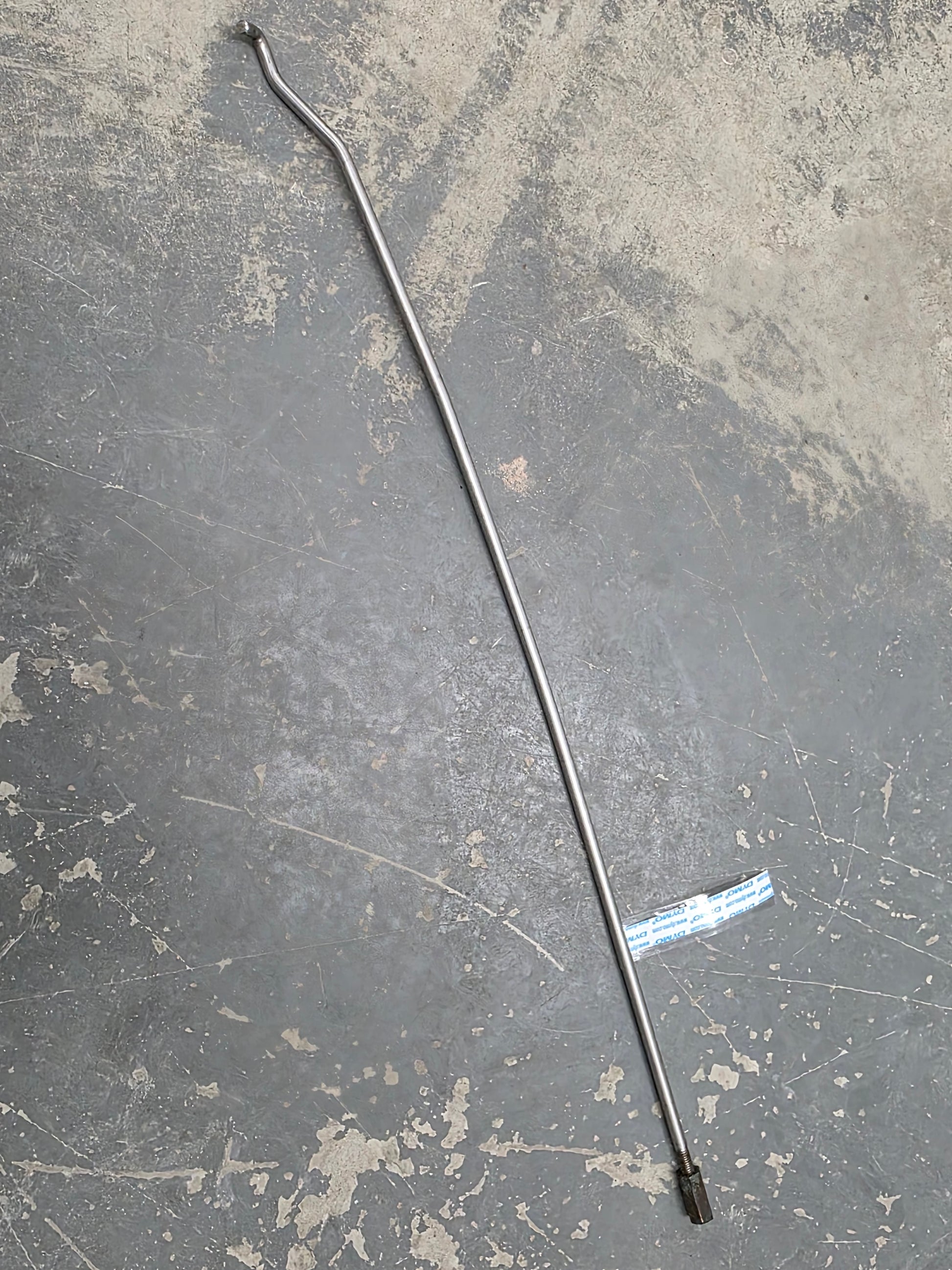

Genuine Suzuki DF40A DF50A DF60A Long Clutch Rod - Part Numbers: 23111-88L11 & 23111-88L10

A genuine used Suzuki long clutch or shift rod for selected DF40A, DF50A, DF50AV, DF60A and DF60AV four-stroke outboard motors.

The rod connects the upper clutch-control linkage to the gearcase shift mechanism. The -10 and -11 references are later production revisions used primarily on long and extra-long shaft installations.

⚙️ Key Features

• Genuine used Suzuki Marine clutch rod
• Current or later reference 23111-88L11
• Earlier reference 23111-88L10
• Long / extra-long shaft shift-linkage component
• Used on 941cc inline three-cylinder four-strokes

🚤 Compatibility

Known serial-controlled applications include

• 2011 DF40A: from 04004F-110001 - 23111-88L10
• 2012 DF40A: from 04004F-210001 - 23111-88L10
• 2014 DF60A: from 06003F-410001 - 23111-88L10
• 2015 DF60AQH / DF60AVTL: from 06003F-510001 - 23111-88L10
• 2018 DF60AVTL2: from 06003F-810001 - 23111-88L10
• 2019 DF60A: from 06002F-910001 - 23111-88L10
• 2020 DF60A selected serial group beginning 06002F-110001 - 23111-88L11
• 2021 DF40A / DF50A / DF60A groups beginning 04004F-140001 - 23111-88L11
• 2023 DF60ATH groups beginning serial 340001 - 23111-88L11
• HP Range: 40HP-60HP
• Engine Type: Suzuki inline three-cylinder EFI four-stroke outboard
• Shaft Note: Primarily long and extra-long shaft applications; verify model suffix

🔌 Function

The clutch rod transfers movement from the upper shift linkage through the midsection to the gearcase for selection of forward, neutral and reverse.

⚠️ Common Signs of Failure

• Rod is bent or corroded
• Gearcase does not fully engage
• Shift adjustment cannot be maintained
• Rod threads or adjustment nut are damaged
• Excessive linkage free play develops
• Rod binds inside the midsection
• Incorrect shaft-length rod prevents assembly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23111-88L10 → Later 23111-88L11 on selected production and markets
• 23111-88L00 and 23111-88L01 are related shorter shaft-length rods
• Verify the engine serial, shaft length and diagram before interchange

OEM / Related Numbers

• 23111-88L11
• 2311188L11
• 23111-88L10
• 2311188L10
• 23111-88L00 and 23111-88L01 related short rods
• 21210-88L00 and 21210-88L01 related clutch shaft
• 23115-88L00 related clutch-lever link
• 23210-88L00 related clutch-control lever
• 29141-93J00 related adjustment nut

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Confirm the -10 or -11 revision and shaft length before purchase
• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
