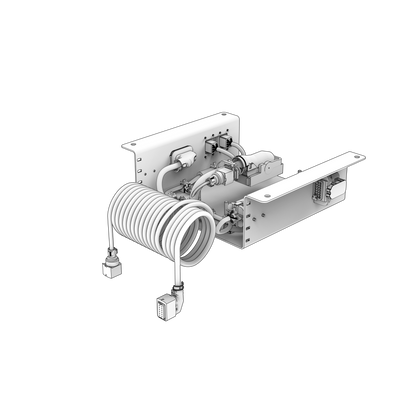

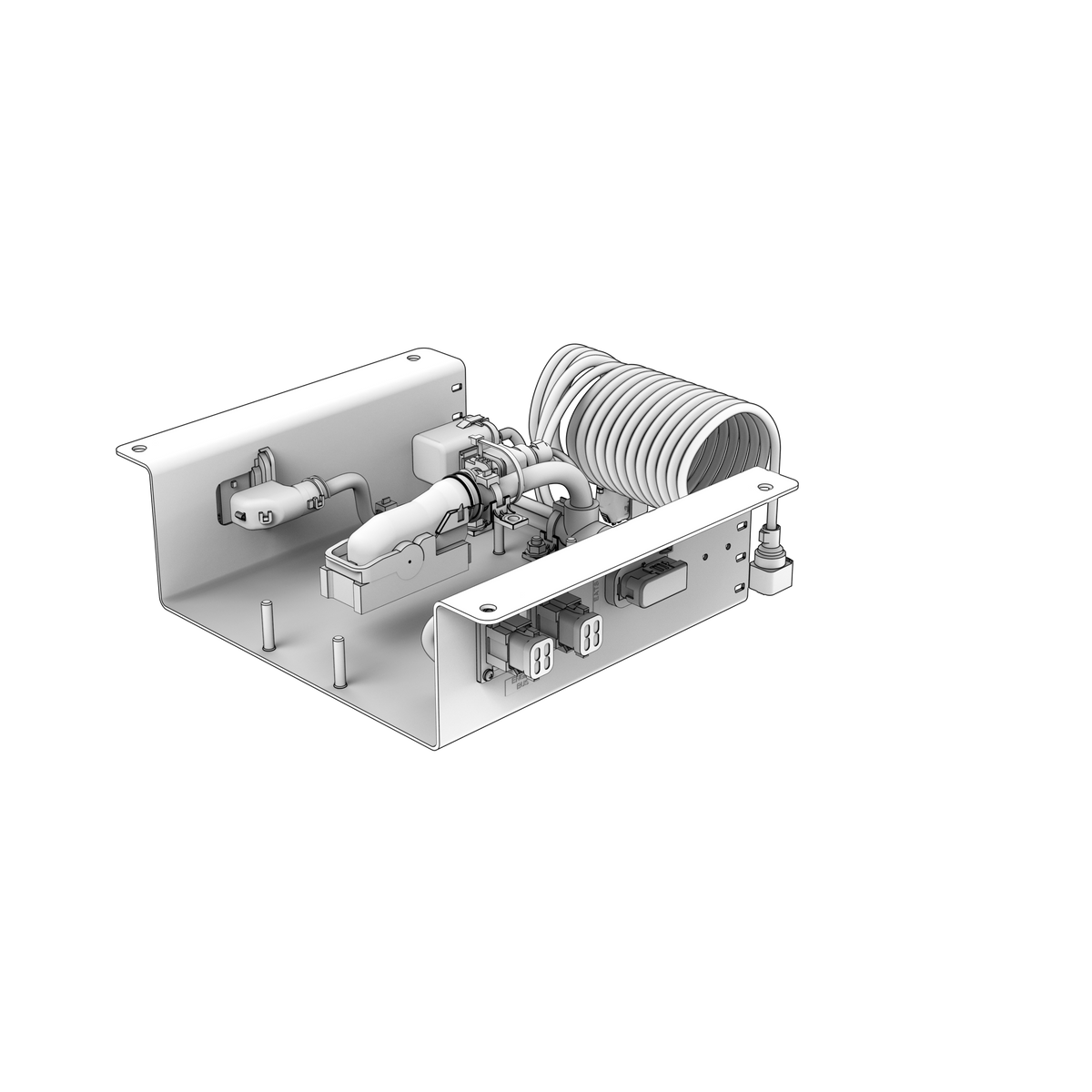

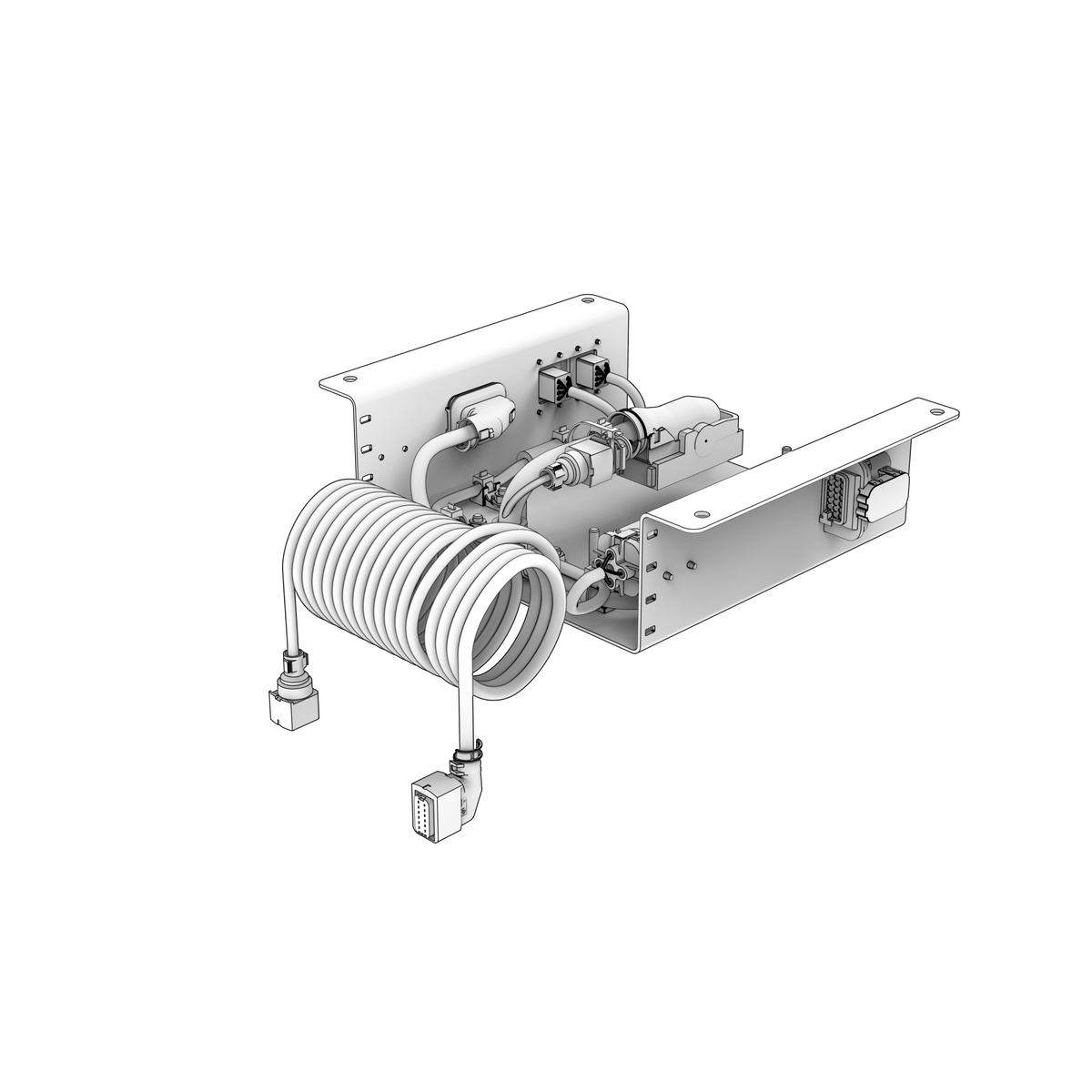

23135592 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta engine loom weighing 6.012 kg and listed for 22 D series applications - the largest harness in this D series listing. A loom of this size carries the whole engine's wiring in one piece, so replacing it is a full strip and refit rather than a lead swap.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• 6.012 kg
• Listed for 22 D series applications
• Complete multi-branch engine harness

🔌 Function

Carries power and signals around the engine as one pre-made loom, with every branch and connector already fitted to the engine's own layout.

⚠️ Common Signs of Failure

• Intermittent faults or warnings that change when the loom is moved
• Corrosion or green deposits inside a connector
• Insulation chafed through where the loom crosses a bracket or edge
• Connector locks broken so a plug backs off in service
• Broken conductor inside the sheath, found only on continuity testing

🛠️ Service Notes

• Test individual circuits and connector pins before replacing a full loom - most faults are local
• Photograph the routing and clip positions before removal, and keep the new loom clear of hot and moving parts
• Disconnect the batteries before starting work

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C4-B MP, D13C5-B MP, D13C1-A MH, D13C2-A MH, D13C3-B MG, D13C4-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP
• Volvo Penta D16C1-E MG, D16C2-E MG, D16C1-E MH, D16C2-E MH
• Volvo Penta D8A6-A MH, D8A6-A MG, D8A7-A MP, D8A8-A MP
