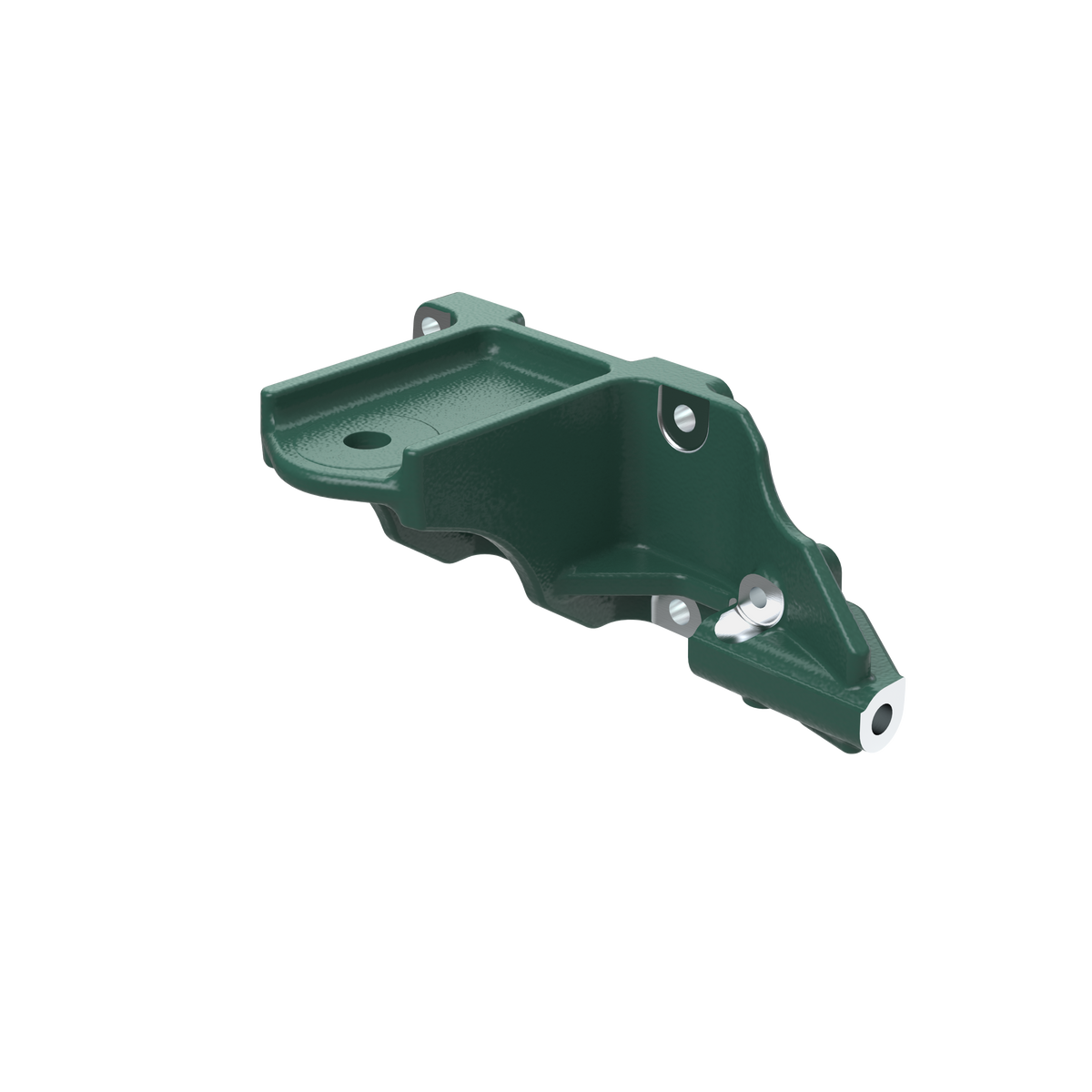

23136596 Engine Bracket | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta starboard front engine bracket, weighing 3.225 kg and listed for 28 D series engine applications. Side and position are the selection details, since mounting brackets are handed. It supersedes 21487641.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Starboard front engine bracket, marked S.B
• 3.225 kg
• Supersedes part number 21487641
• Listed for 28 D series engine applications
• Side and position are the selection details - mounting brackets are handed

🔌 Function

Carries the engine's weight at the front on the starboard side, transferring it into the mounts and the vessel's bearers.

⚠️ Common Signs of Failure

• Engine movement, or vibration that has become worse over time
• Cracks radiating from the mounting bolt holes
• Bolt holes worn oval and fixings that will not stay tight
• Bracket bowed, or the mount sitting at an angle
• Exhaust and coupling joints repeatedly disturbed by the movement

🛠️ Service Notes

• Confirm you need the starboard front bracket - the other positions take different parts
• Check the flexible mounts and their fixings at the same time; a collapsed mount is often what cracks the bracket
• Re-check engine alignment after any mounting work

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23136596 → Supersedes 21487641 → Supersedes 3807719 → Supersedes 21152127

OEM / Related Numbers

• 21487641 earlier number superseded by this part
• 3807719 earlier number superseded by this part
• 3583515 earlier number superseded by this part
• 21152127 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
