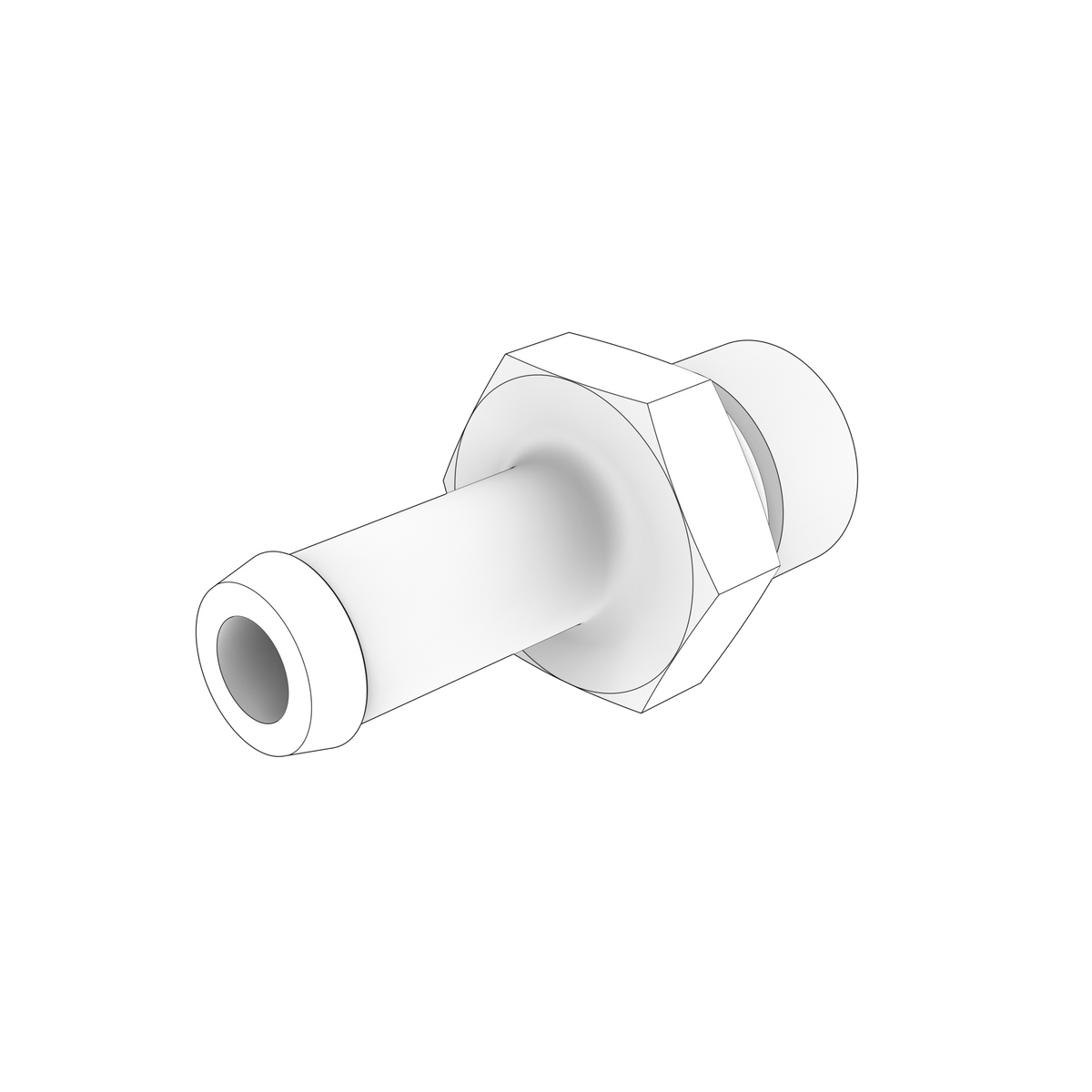

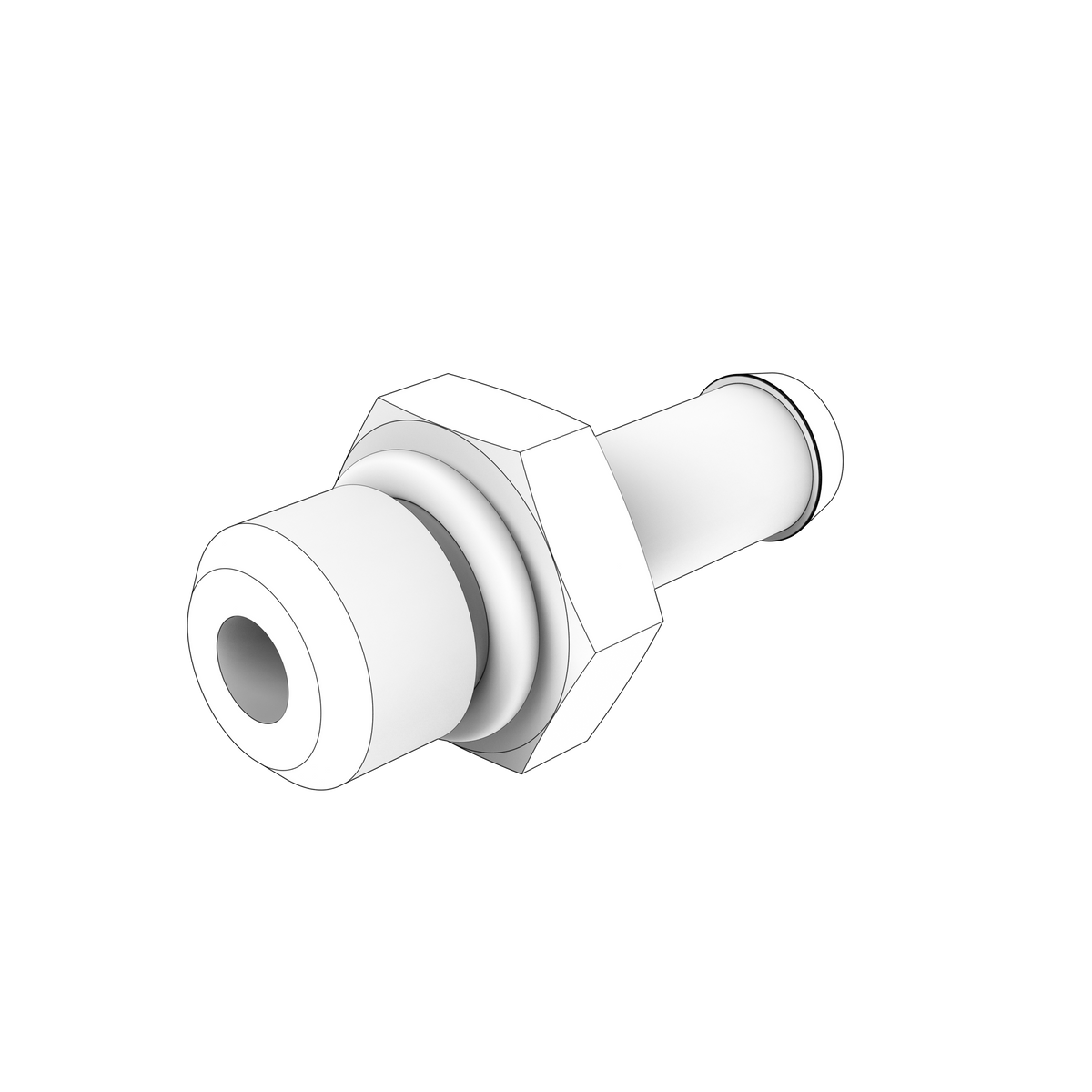

23136992 Fitting | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta brass fitting from the Cooling System group, weighing 0.014 kg and listed for 114 V series applications. It supersedes part number 22375193 and should not be confused with the brass plug covering nearly the same engines.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Brass fitting from the Cooling System group
• 0.014 kg
• Supersedes part number 22375193
• Listed for 114 V series applications
• Should not be confused with brass plug 23136990, which covers nearly the same engines

🔌 Function

Provides the threaded connection point where a line or sensor joins the cooling circuit.

⚠️ Common Signs of Failure

• Seepage or a crusty ring at the fitting
• Thread damaged or the sealing face nicked
• Fitting corroded or partly blocked internally
• Hexagon rounded off from repeated disturbance
• Fitting turning in its port because the thread has failed

🛠️ Service Notes

• Renew the sealing washer or use the sealing compound specified rather than overtightening brass into an alloy housing
• Check the part number carefully against plug 23136990 before ordering

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23136992 → Supersedes 22375193

OEM / Related Numbers

• 22375193 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
