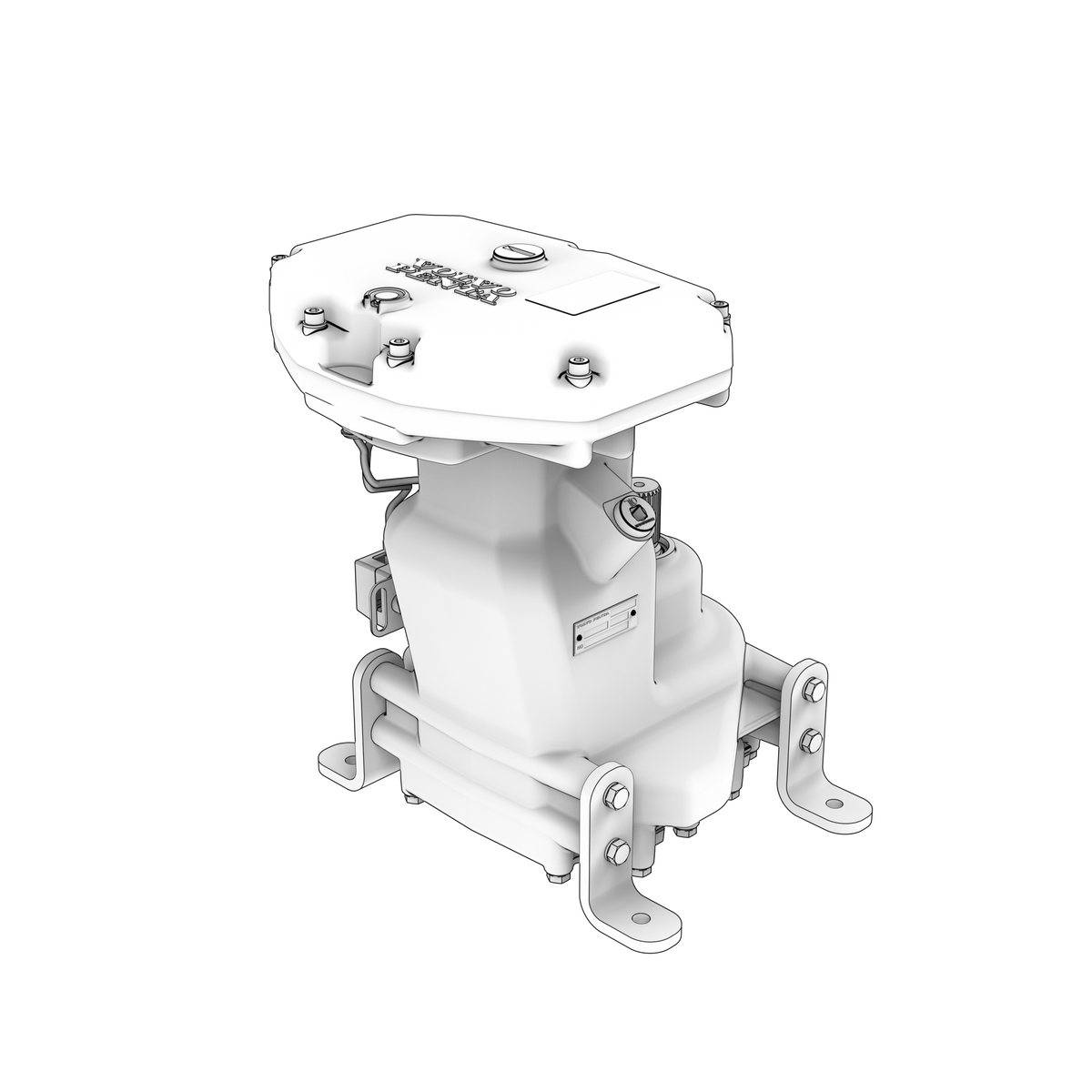

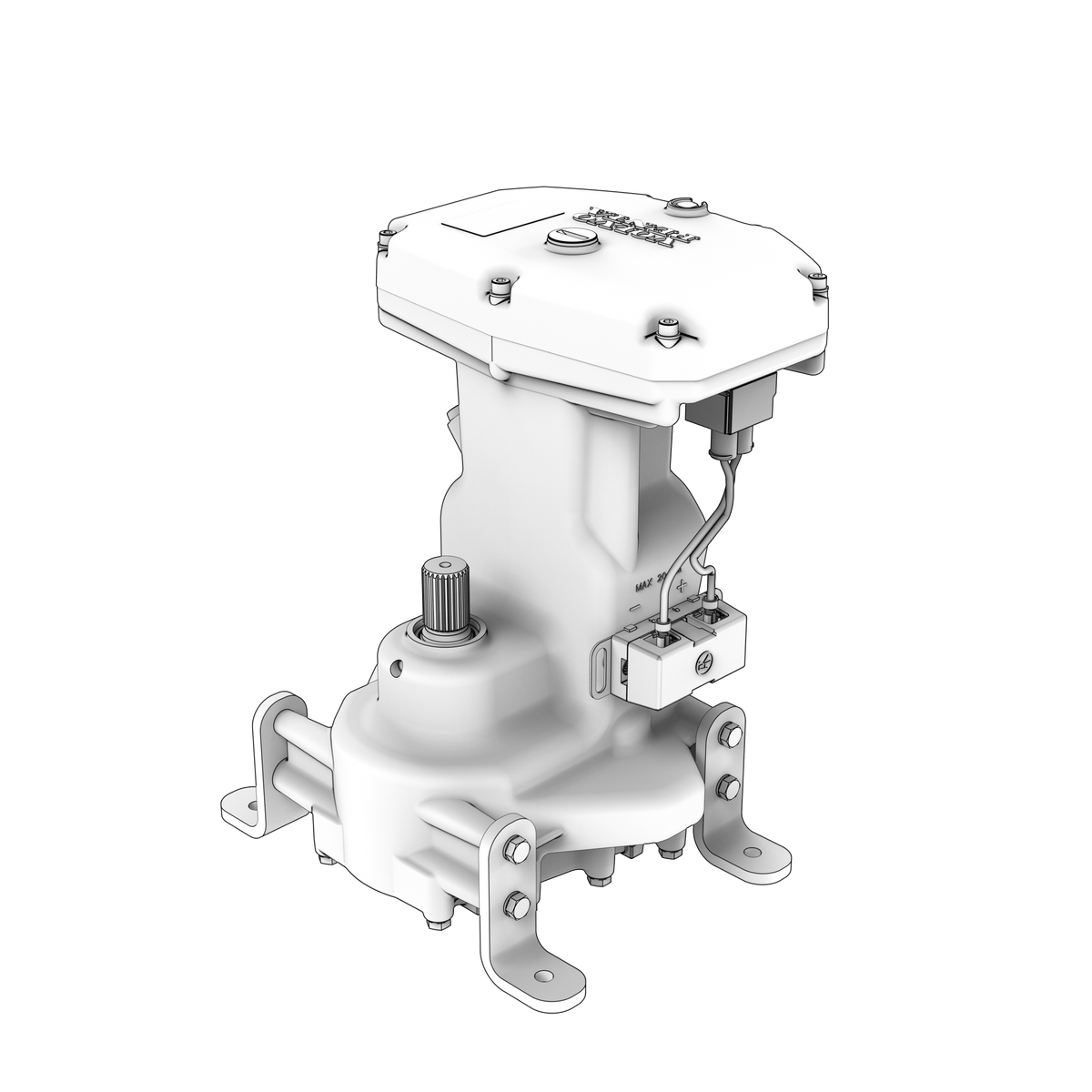

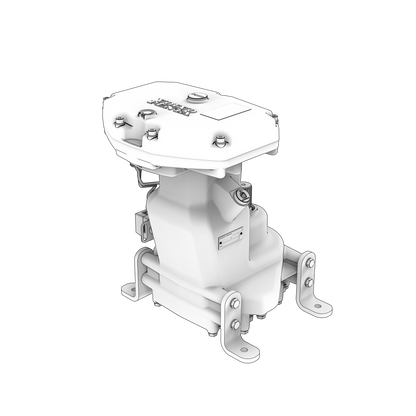

23163584 Steering Gear | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta steering gear from the Marine Propulsion group, weighing 46.0 kg and listed for 28 D series applications. The SUS unit is not included, so it must be ordered separately. Steering components are safety related, and at 46 kg this needs lifting support.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 46.0 kg
• The SUS unit is not included and must be ordered separately
• Listed for 28 D series applications
• A steering component, so it is safety related
• Heavy enough to need lifting support to handle

🔌 Function

Converts helm input into steering movement at the drive and holds the set angle against the water load trying to push it back.

⚠️ Common Signs of Failure

• Steering heavy, notchy or uneven from lock to lock
• Free play at the helm before the drive begins to move
• The boat wandering off course and needing constant correction
• Oil weeping from the seals or a fluid trail in the bilge below the unit
• Unequal travel to port and starboard when the locks are checked

🛠️ Service Notes

• The SUS unit is not supplied with this gear, so order it separately or the installation will not be complete
• At 46 kg this needs lifting support and a second pair of hands - do not try to hold it in place while starting the fasteners
• Bleed the system fully and check both locks and the whole travel for leaks before the boat is used, since this is a safety related item

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C4-B MP, D13C5-B MP, D13C7-B MP, D13C8-B MP, D13C9-A MP
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-145I-G, D4-175 VG
• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300I-G
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A1-A MP, D8A3-A MP, D8A7-A MP
• Volvo Penta D11C1-A MP, D11C3-A MP
