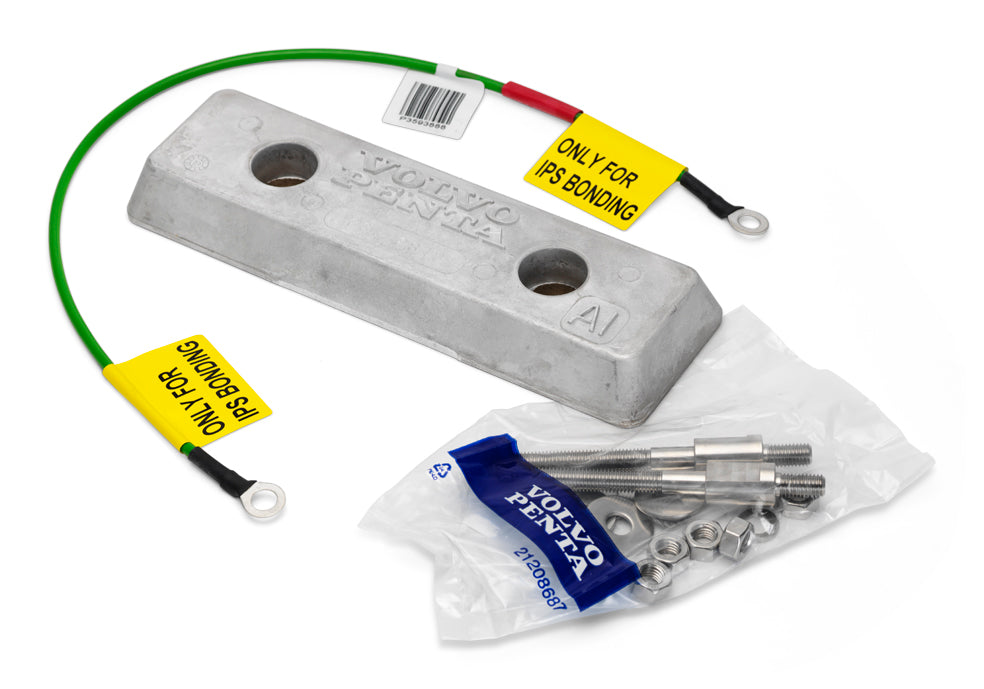

23172846 Anode Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta transom-anode and bonding package for IPS-A and IPS1 / IPS10 pod-drive installations. The standard kit is used on the applicable hull installation; metal hulls require the separate insulating mounting arrangement where specified.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 260-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta IPS transom-anode kit
• Correct Volvo Penta part number 23172846
• Includes the anode, bonding lead, stud, nut and washers
• Designed for IPS1 / IPS10 transom assemblies
• Metal-hull mounting kit 21211763 is a related separate package where required

📋 Kit Contents

• 1 × IPS1 / IPS10 transom anode - 23172849
• 1 × bonding wiring harness - 3593888
• 1 × threaded rod - 21211781
• 1 × hexagon nut - 991657
• 1 × washer - 991659
• 1 × toothed washer - 991660
• 1 × washer - 991658

🔌 Function

The anode and bonding lead provide a sacrificial path for galvanic current around the IPS transom assembly, protecting the pod, mounting ring and connected underwater metals.

⚠️ Common Signs of Failure

• Anode is heavily consumed or missing
• Bonding wire is broken, corroded or has high resistance
• Corrosion appears around the transom unit
• Insulating hardware is omitted on a metal hull
• Anode is painted or cannot make electrical contact

🛠️ Service Notes

• The transom-mounted sacrificial anode kit for Volvo Penta IPS1 / IPS10 installations on D4 and D6 engines. It is an aluminium anode, which Volvo Penta now recommends for salt and brackish water in place of zinc.
• On an electrically conductive metal hull this kit is not fitted on its own — the separate insulating mounting kit for conductive hulls is required with it.
• Good bare-metal contact between the anode and the surface it bonds to is what makes it work. Clean the mating faces properly, and never paint the anode or its seating.
• An anode that has stood in air a long time can develop a passivating film. Volvo Penta's guidance is to reactivate it by rubbing it back with emery paper before launch — not with sandpaper, a wire brush or any steel tool, which damage the galvanic protection.
• Anode life swings widely with water flow, salinity, temperature, pollution and stray current, so inspect at every haul-out rather than trusting a fixed interval, and follow the operator's manual for your installation on when to renew.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23172846 → Supersedes 21211794 → Supersedes 3888020

OEM / Related Numbers

• 21211794 earlier number superseded by this part
• 3888020 earlier number superseded by this part
• 23172849 anode
• 3593888 wiring harness
• 21211781 rod
• 991657 nut
• 991659 washer
• 991660 toothed washer
• 991658 washer
• 21211763 metal-hull mounting kit
• 21211765 shim
• 975692 related O-rings
• 975652 related O-rings

Other-Brand OEM Numbers

• VOE23172846

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330D-E, D6-370D-E, D6-330D-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370D-F, D6-300D-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-435D-D, D6-435D-E, D6-435D-F, D6-435D-C
• Volvo Penta D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F
• Volvo Penta IPS-A, IPS-B, IPS-F, IPS-C, IPS-D, IPS-E
• Volvo Penta 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q
• Volvo Penta IPS10-A, IPS10-B
