23172853 Anode Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta transom-anode and bonding package for larger IPS15, IPS2 / IPS20 and IPS3 / IPS30 pod-drive installations. The kit supplies the anode and complete bonding hardware for the applicable fibreglass-hull transom arrangement.

🚤 Compatibility

• Engine Family: IPS, D

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta larger-IPS transom-anode kit
• Correct Volvo Penta part number 23172853
• Includes the complete anode and bonding-hardware package
• Suitable for IPS15, IPS2 / IPS20 and IPS3 / IPS30 transom assemblies

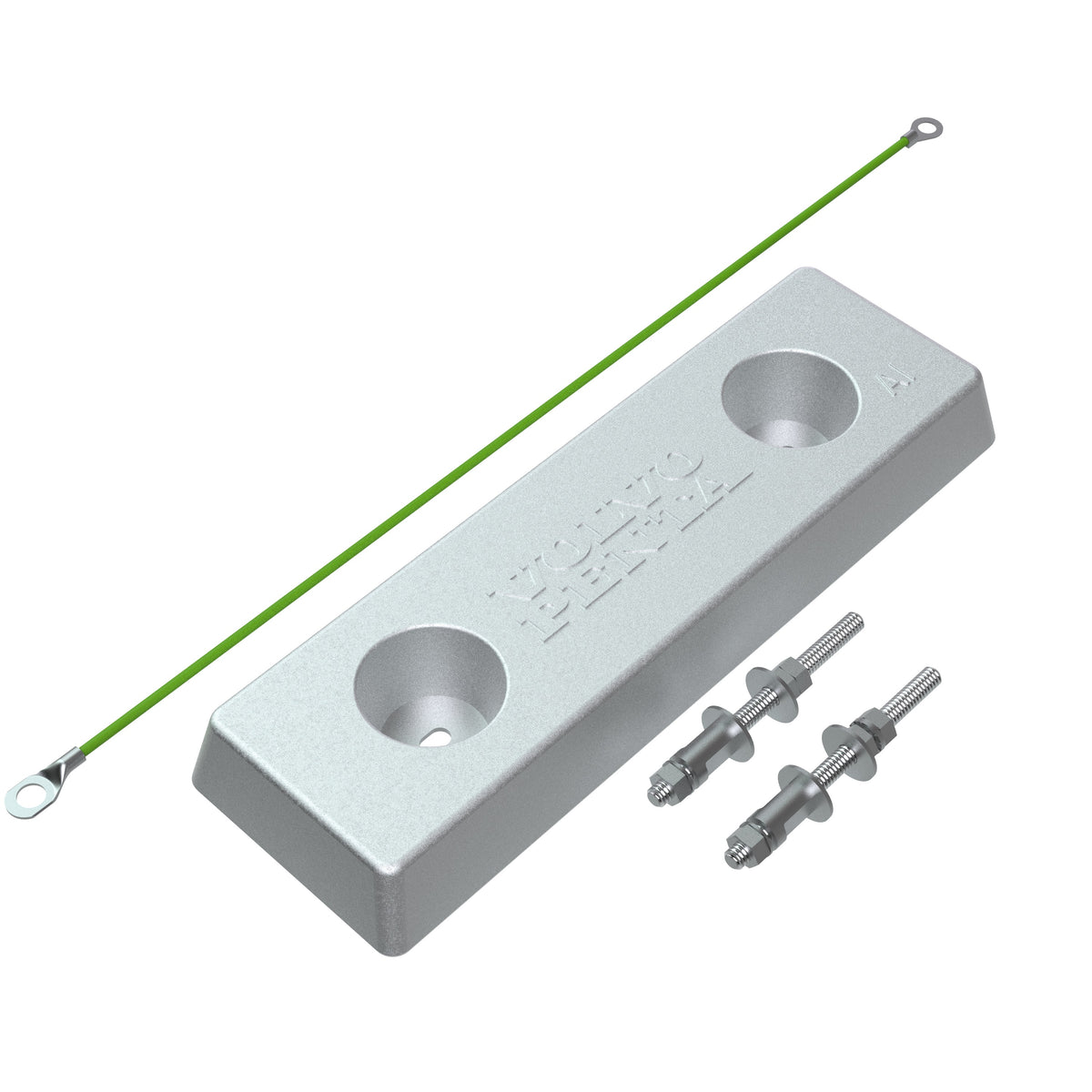

📋 Kit Contents

• 1 × IPS15 / IPS2 / IPS3 transom anode - 23172856
• 1 × bonding wiring harness - 3875279
• 1 × threaded rod - 21211781
• 1 × hexagon nut - 991657
• 1 × washer - 991659
• 1 × toothed washer - 991660
• 1 × washer - 991658

🔌 Function

The anode is electrically bonded to the transom assembly and is consumed preferentially, reducing galvanic attack on the drive, mounting ring and connected underwater metals.

⚠️ Common Signs of Failure

• Anode is depleted or loose
• Bonding harness is broken or has high resistance
• Corrosion appears at the transom assembly
• Anode surface is painted or insulated
• Incorrect kit is used for the IPS drive size

🛠️ Service Notes

• The transom-mounted sacrificial anode kit for the larger Volvo Penta IPS installations — IPS15, IPS2/20 and IPS3/30 on D8, D11 and D13 engines — supplied with its mounting and bonding hardware.
• Volvo Penta lists it against fibreglass hulls. On an electrically conductive metal hull the separate insulating kit for conductive hulls has to be used with it.
• Good bare-metal contact between the anode and the surface it bonds to is what makes it work. Clean the mating faces properly, and never paint the anode or its seating.
• An anode that has stood in air a long time can develop a passivating film. Volvo Penta's guidance is to reactivate it by rubbing it back with emery paper before launch — not with sandpaper, a wire brush or any steel tool, which damage the galvanic protection.
• Anode life swings widely with water flow, salinity, temperature, pollution and stray current, so inspect at every haul-out rather than trusting a fixed interval, and follow the operator's manual for your installation on when to renew.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23172853 → Supersedes 3875264 → Supersedes 3875263

OEM / Related Numbers

• 3875264 earlier number superseded by this part
• 23172856 anode
• 3875279 wiring harness
• 21211781 rod
• 991657 nut
• 991659 washer
• 991660 toothed washer
• 991658 washer

Other-Brand OEM Numbers

• VOE23172853

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C2-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D11C2-A MP, D11C4-A MP, D11B4-A MP, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta IPS15-C, IPS15-B, IPS15-A
• Volvo Penta IPS2-C, IPS2-A, IPS2-B
• Volvo Penta IPS20-D, IPS20-E
• Volvo Penta IPS3-C, IPS3-A
• Volvo Penta IPS30-E, IPS30-D
• Volvo Penta IPS40-A
