23213-89J01 Suzuki Notch Plate No.1 | Genuine Used Part

23213-89J01 Suzuki Notch Plate No.1 | Genuine Used Part

$10.00 AUD
$10.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

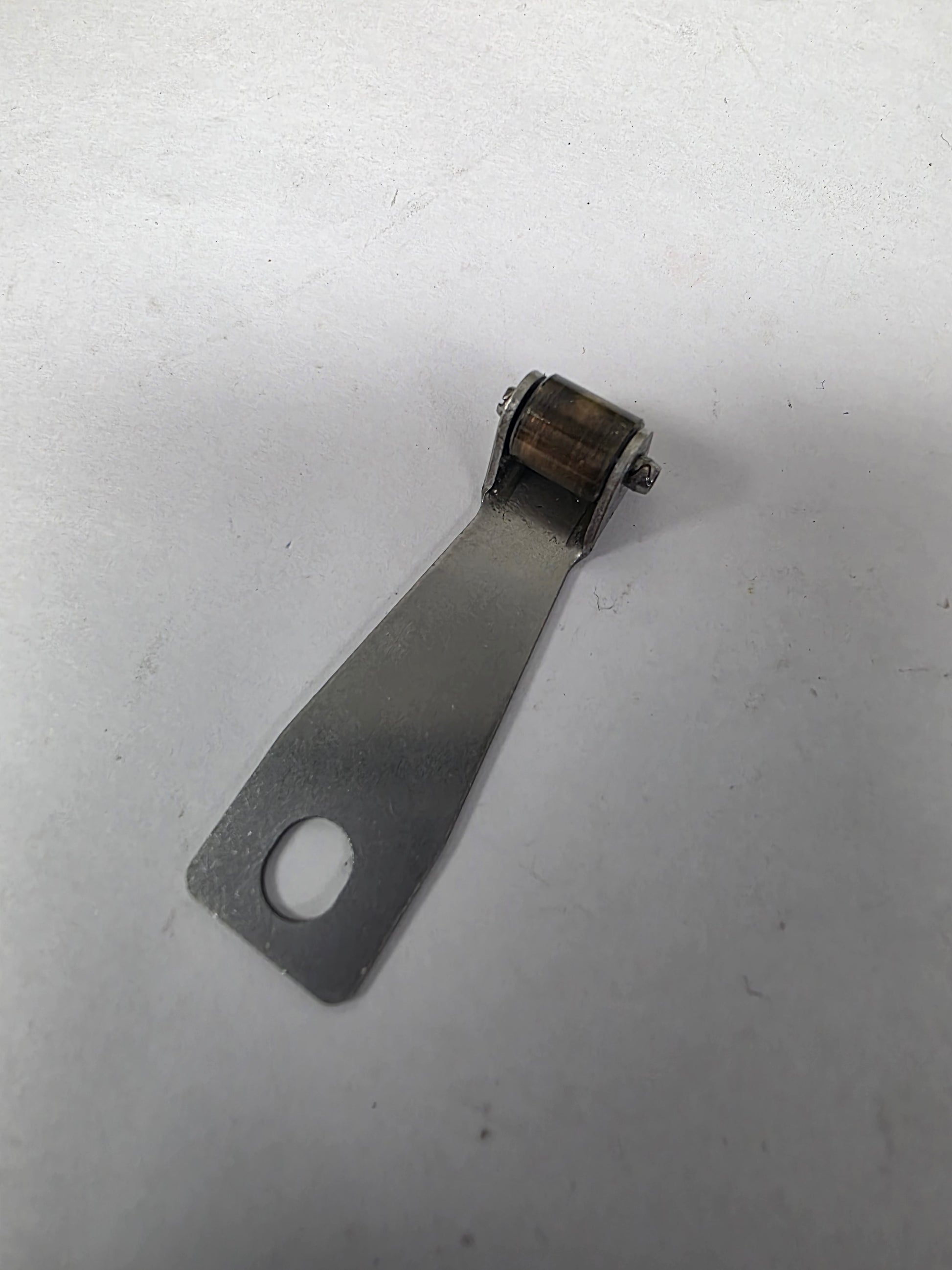

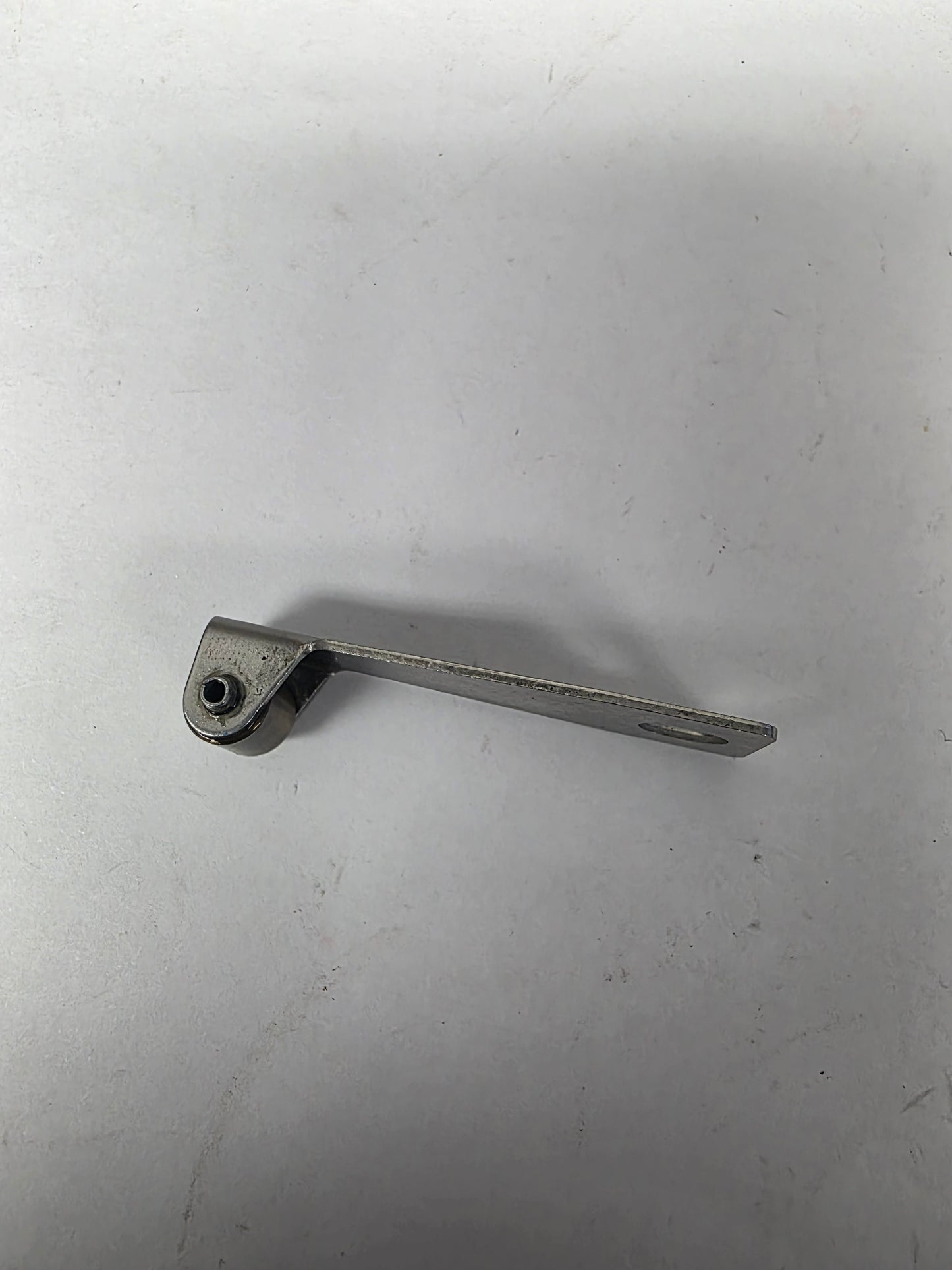

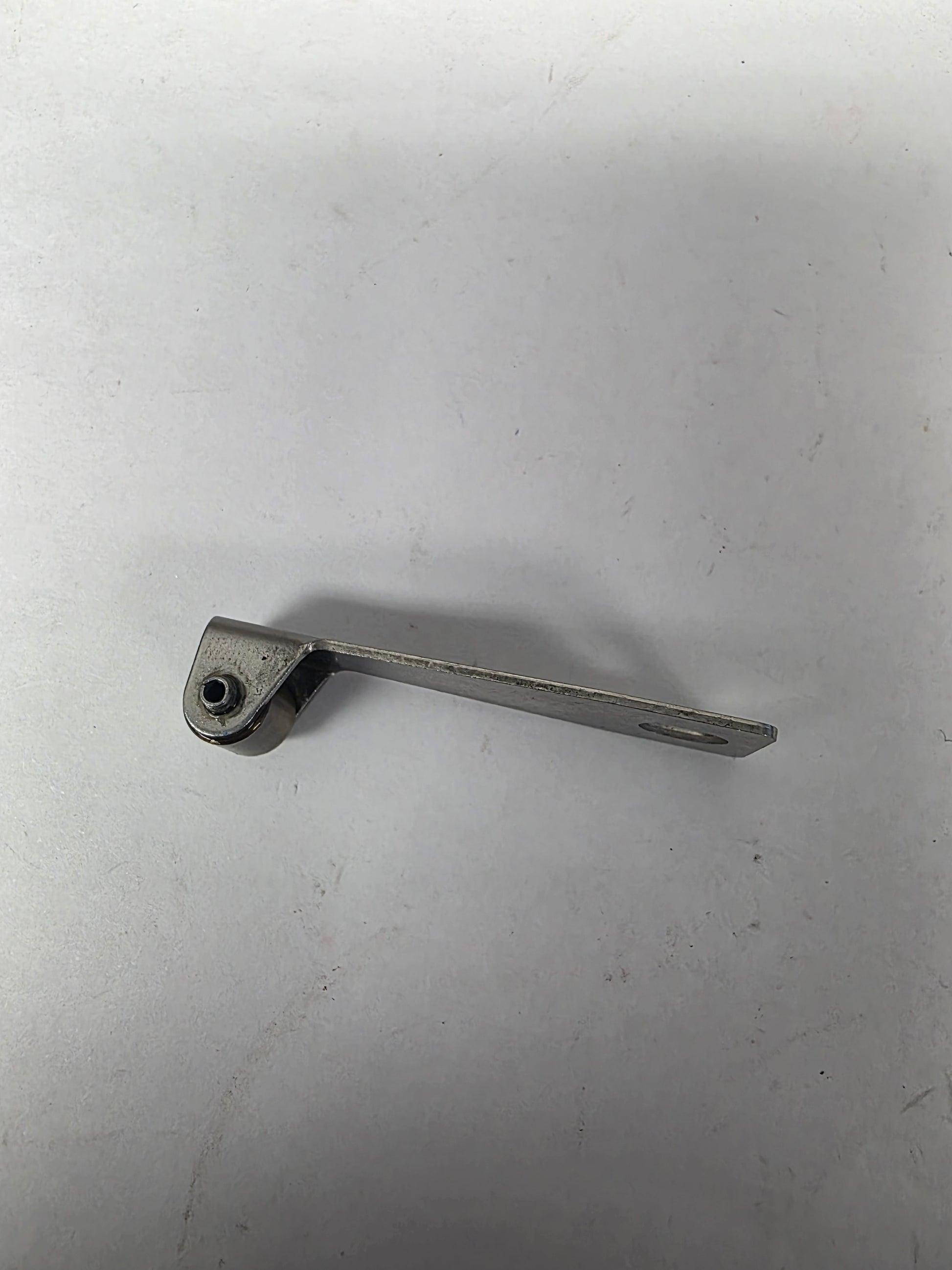

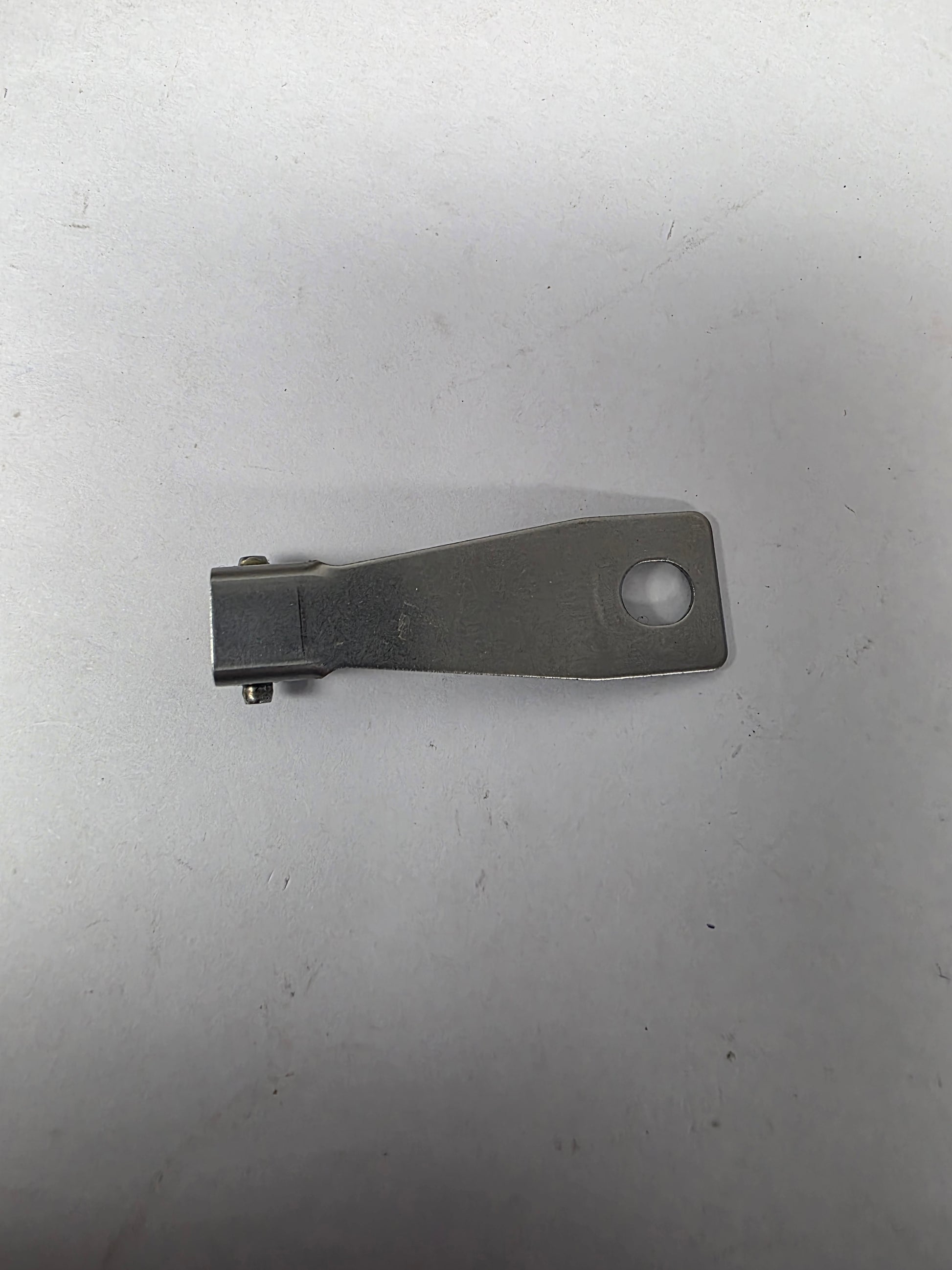

Genuine Suzuki Notch Plate No. 1 Spring - Part Number: 23213-89J01

A genuine used Suzuki notch-plate No. 1 spring for selected DF25 through DF60 four-stroke outboard shift mechanisms.

The spring works with the clutch-shaft notch plate to create positive detent force at the selected gear positions. The OEM description identifies this component as the spring for notch plate No. 1 rather than the plate itself.

⚙️ Key Features

  • Genuine Suzuki OEM shift-detent spring
  • Correct current Suzuki part number 23213-89J01
  • Supersedes earlier part number 23213-89J00
  • Works with the clutch-shaft notch-plate assembly
  • Helps retain positive forward, neutral and reverse positions

🚤 Compatibility

Commonly used on

  • Suzuki clutch-shaft detent assemblies
  • Selected DF25 and DF30 engines plus DF40A, DF50A and DF60A families

Typically suits

  • Engine models:
  • Suzuki DF25 four-stroke shift assemblies using 23213-89J01
  • Suzuki DF30 four-stroke shift assemblies using 23213-89J01
  • Suzuki DF40A, DF40AQH and DF40ATH
  • Suzuki DF50A, DF50ATH and DF50AVT
  • Suzuki DF60A, DF60AQH, DF60ATH and DF60AVT
  • HP Range: 25HP - 60HP
  • Engine Type: Suzuki four-stroke outboard
  • Year Range: Approximately 2001 onward

🔌 Function

The spring applies force to the notch-plate detent so the shift mechanism settles positively into forward, neutral and reverse. It also helps prevent the control from drifting out of the selected position.

⚠️ Common Signs of Failure

  • Spring is broken, weak or permanently distorted
  • Shift lever does not hold firmly in neutral
  • Gear position feels vague or lacks a positive detent
  • Spring is corroded or displaced from its mounting point
  • Control movement becomes uneven or noisy

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 23213-89J01 → Supersedes 23213-89J00
  • 23213-89J00 earlier OEM notch-plate No. 1 spring reference

OEM / Related Numbers

  • 23213-89J01
  • 2321389J01
  • 23213-89J00
  • 23210-88L00 related clutch-control lever
  • 21210-88L00 / 21210-88L01 related clutch shaft

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
