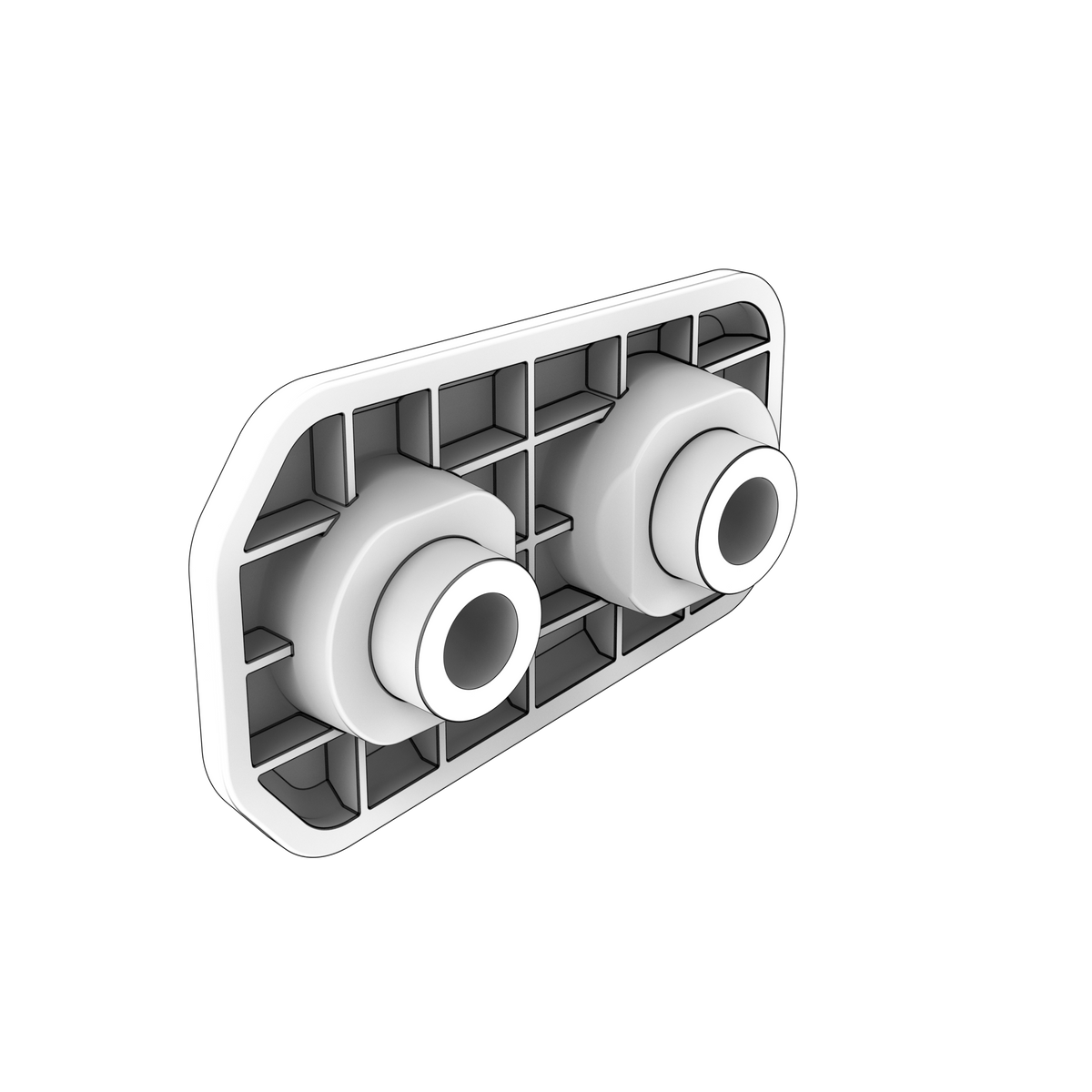

23252235 Bracket | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta bracket from the Marine Propulsion group, weighing 0.025 kg and listed for 21 applications across DPH, D, DPI and DPR series engines and drives.

🚤 Compatibility

• Engine Family: DPH, D, DPI, DPR
• HP Range: 150-440 HP

Full model list at the end of this description.

⚙️ Key Features

• Bracket from the Marine Propulsion group
• 0.025 kg
• Listed for 21 applications across DPH, D, DPI and DPR series engines and drives

🔌 Function

Holds a small component or line in position within the drive installation, stopping it moving under vibration.

⚠️ Common Signs of Failure

• Component it carries moving or chafing where it should be held
• Cracks around the fixing hole
• Corrosion at the mounting face in a damp installation
• Fixing repeatedly working loose

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-300A-F, D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-440A-G, D6-400A-F
• Volvo Penta D4-260A-F, D4-300A-F, D4-225A-F, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta DPH-D1, DPH-E
• Volvo Penta DPI-A
• Volvo Penta DPR-D
