23289376 Drive Unit | Genuine Volvo Penta Part

🔧 Product Description

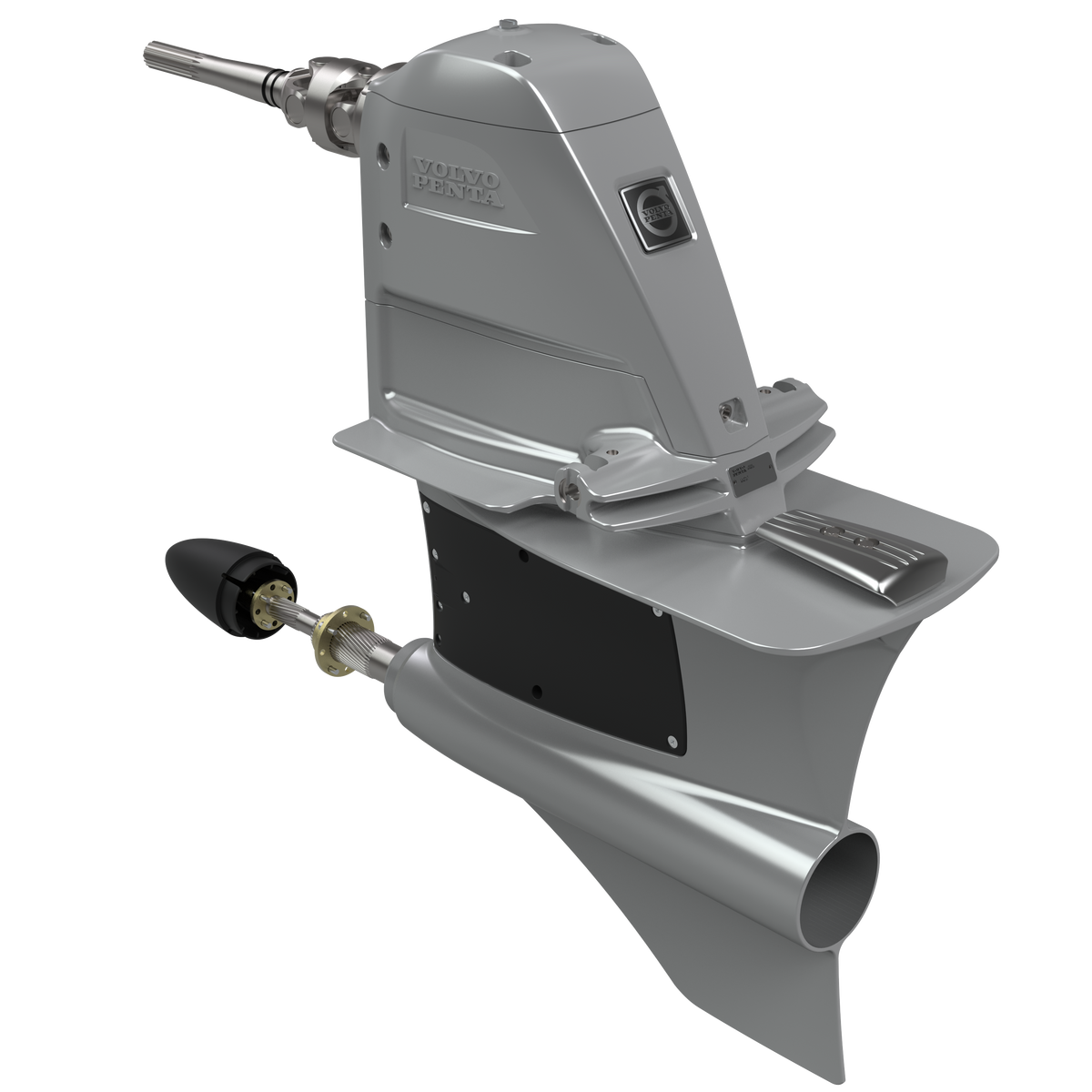

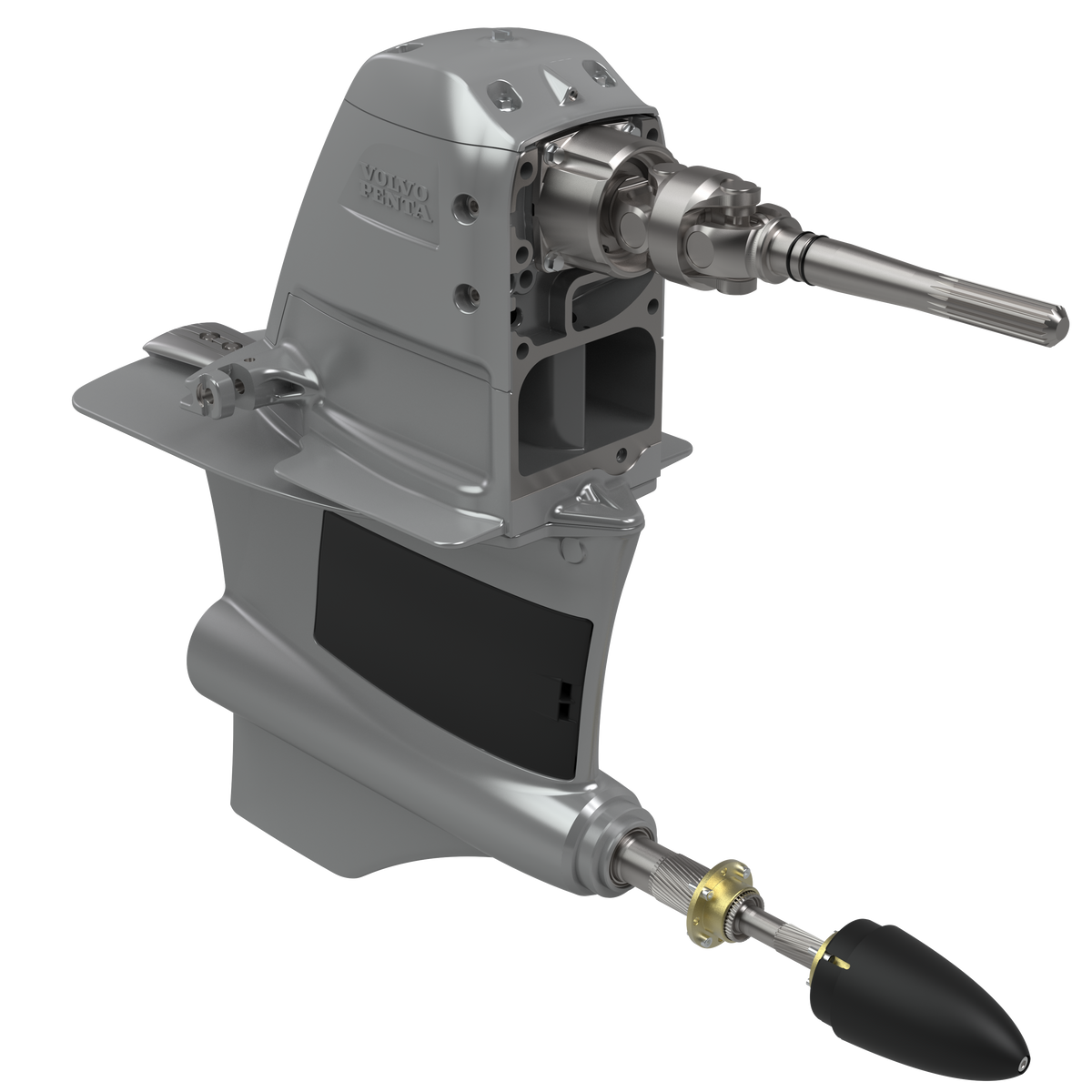

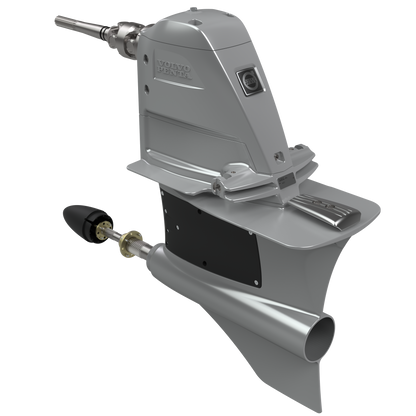

Genuine Volvo Penta FWD-D1 drive unit with a 2.14:1 ratio, weighing 52.16 kg and listed for 66 applications across V and FWD series engines and drives. The ratio must match the propeller selection, and at over 50 kg the lift needs planning.

🚤 Compatibility

• Engine Family: V, FWD
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Forward Drive FWD-D1 drive unit
• 2.14:1 gear ratio
• 52.163 kg
• Listed for 66 applications across V series engines and FWD drives
• 23289382 is the same drive in the 1.95:1 ratio

🔌 Function

Takes the engine's output through the transom and turns it down to the forward-facing propellers, and provides the steering and trim movement.

⚠️ Common Signs of Failure

• Vibration or noise that tracks boat speed rather than engine load
• Grey or milky gear oil, showing water has got in
• Oil on the bilge floor under the transom
• Steering or trim becoming heavy, slow or uneven
• Pitted or chipped gear teeth found on strip-down

🛠️ Service Notes

• Check the ratio marked on the unit being replaced before ordering - the ratio has to suit the engine and the propeller set
• At over 50 kg this needs mechanical lifting and a second pair of hands to position on the transom

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-C-N, V6-200-CE-N, V6-240-C-M, V6-240-CE-M, V6-280-C-M, V6-280-CE-M, V6-240-C-N, V6-240-CE-N, V6-280-C-N, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-280-CE-N, V6-200-C-M, V6-250-C-O, V6-250-CE-O, V6-200-C-R, V6-250-C-R, V6-250-CE-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D1, FWD-D2
