23290085 Upper Gear | Genuine Volvo Penta Part

🔧 Product Description

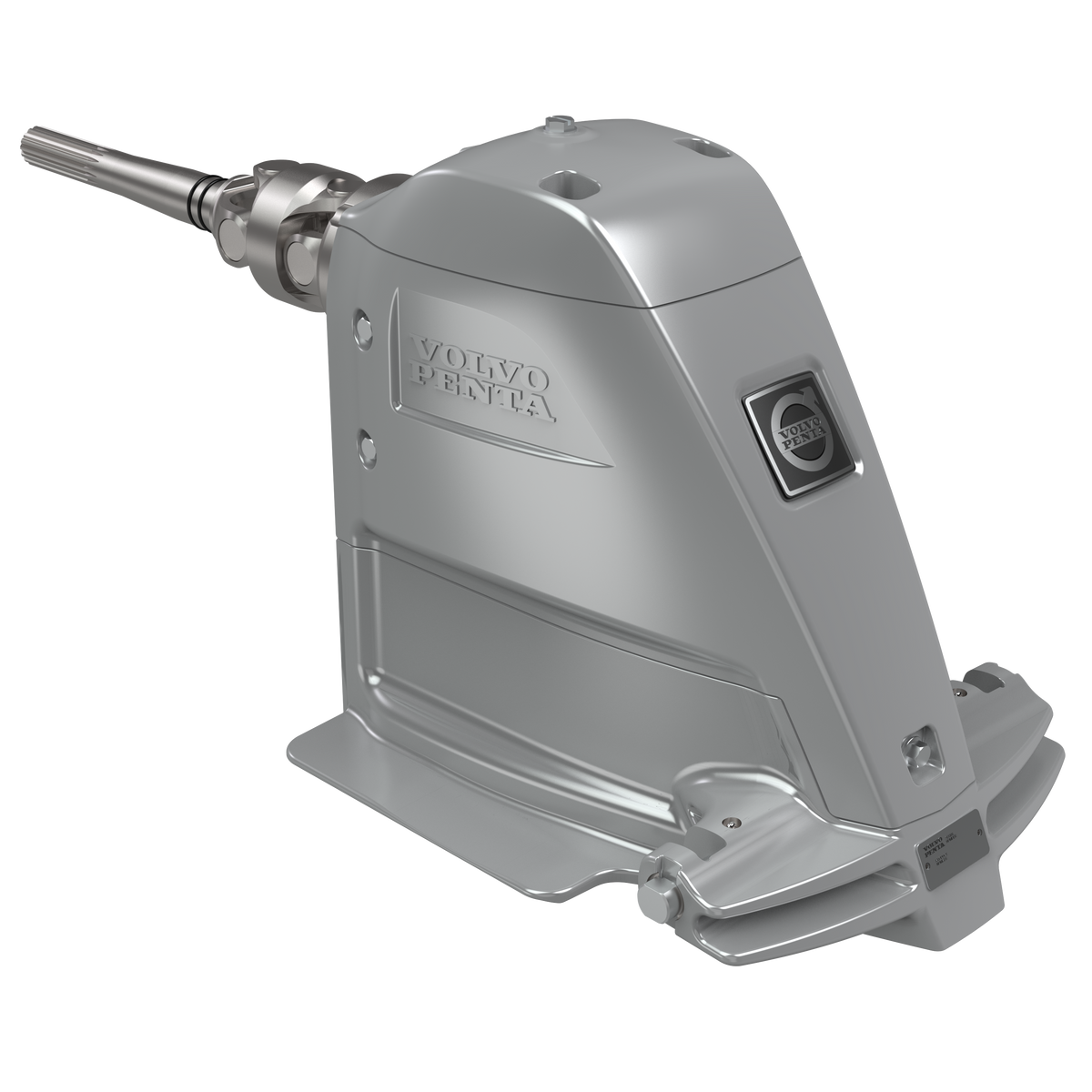

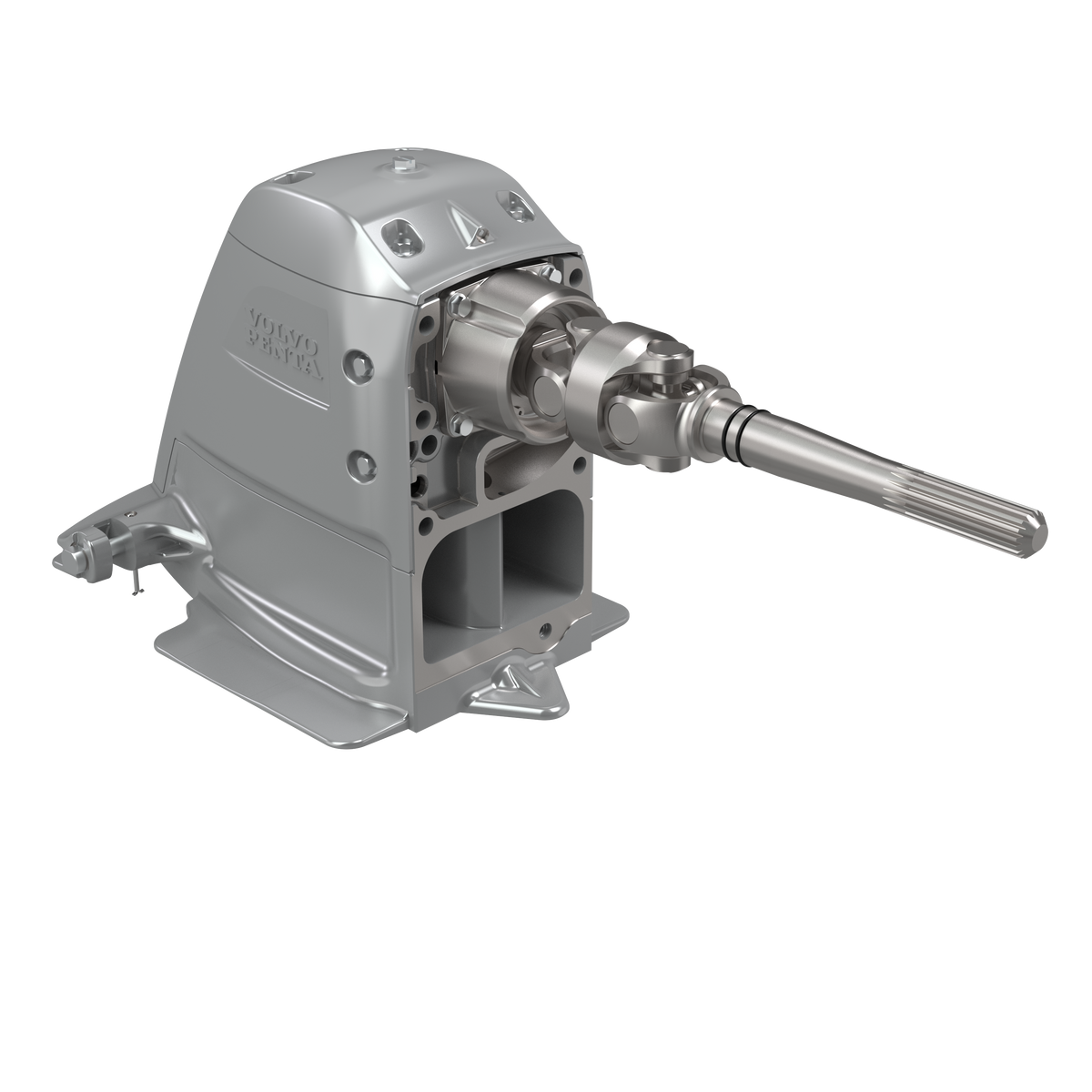

Genuine Volvo Penta Silent Shift upper gear, weighing 32.205 kg and listed for 152 applications across V, SX, DPS, FWD and D series engines and drives. It replaces the existing upper gear and its traditional cone clutch with a multi-plate clutch, giving smooth, near-silent shifting that is most noticeable in low-speed manoeuvring and when docking, and it mates with the lower gear of the drive already fitted. This is the unit listed against SX drives with the 1.79, 1.89, 1.97 and 2.18 ratios and against DPS and FWD drives with the 2.32 ratio, covering SX-A and newer, DPS-A and newer, and all FWD versions. It consolidates seven earlier drive unit and gear references.

🚤 Compatibility

• Engine Family: V, SX, DPS, FWD, D
• HP Range: 140-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Multi-plate clutch in place of the traditional cone clutch
• For SX ratios 1.79, 1.89, 1.97 and 2.18, and the 2.32 ratio on DPS and FWD
• SX-A and newer, DPS-A and newer, all FWD versions
• Mates with the lower gear of the existing drive
• 32.205 kg
• Consolidates seven earlier drive unit and gear references
• Multi-plate clutch replaces the traditional cone clutch
• Smooth and soundless shifting, most noticeable at low speed and when docking
• Dps ratios: 2:32
• Fwd ratios: 2:32
• Sx ratios: 1:79, 1:89, 1:97, 2:18
• Fits: SX, DPS and FWD Aquamatic sterndrives
• Also supersedes Volvo part numbers 21615545, 22090411, 22491359, 22492124, 22777846, 23289375, 23289378, 3883603, 3883604 and 3883605

🔌 Function

Carries the drive's input shaft and upper bevel gear set on a multi-plate clutch, turning engine rotation through ninety degrees and setting the drive's gear ratio.

⚠️ Common Signs of Failure

• Whine or growl from the upper drive that rises with engine speed
• Milky or grey gear oil at the oil change
• Metallic glitter on the drain plug magnet
• Play felt at the input shaft when turned by hand
• Pitted, chipped or spalled bevel teeth found on strip-down

🛠️ Service Notes

• The upper gear mates with the lower gear you already have, so the ratio has to match the drive - check the drive family as well as the ratio, since the ratio it covers differs between SX, DPS and FWD
• Two families of upper gear share these ratios at different weights, so match the part number as well as the ratio
• The other ratio groups in the same listing are 23290086 and 23290087
• Only the upper gear unit is changed - the existing lower gear is retained
• SX ratios apply from SX-A and newer, DPS ratios from DPS-A and newer, and all FWD versions are covered

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23290085 → Supersedes 22227300

OEM / Related Numbers

• 22491350 earlier number superseded by this part
• 22491349 earlier number superseded by this part
• 22491351 earlier number superseded by this part
• 22227300 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-B, V8-320-E-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-270-B, V8-270-E-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D1, FWD-D2, FWD-F, FWD-F2, FWD-G, FWD-G1
• Volvo Penta D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H
• Volvo Penta DPS-D, DPS-D1
• Volvo Penta SX-D
