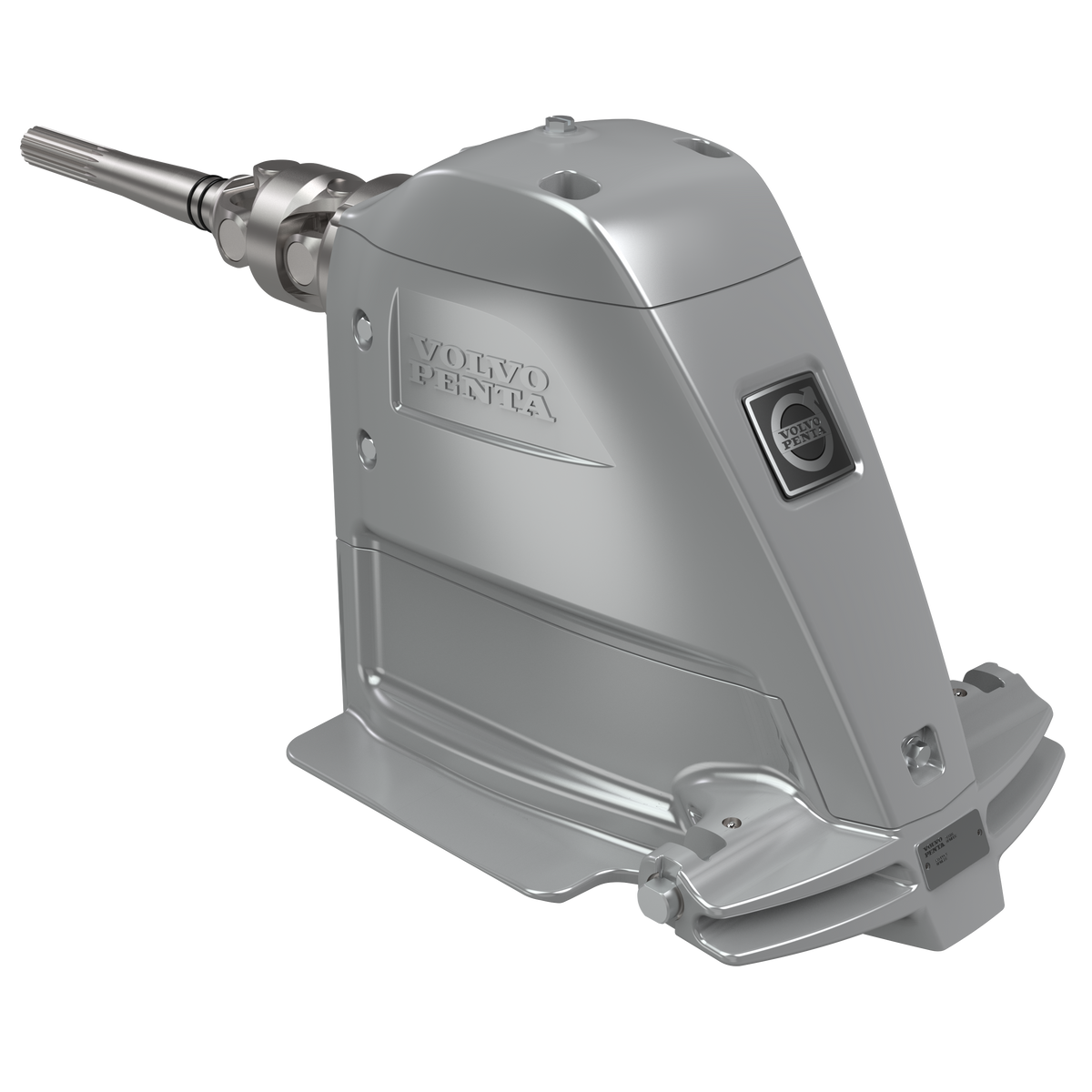

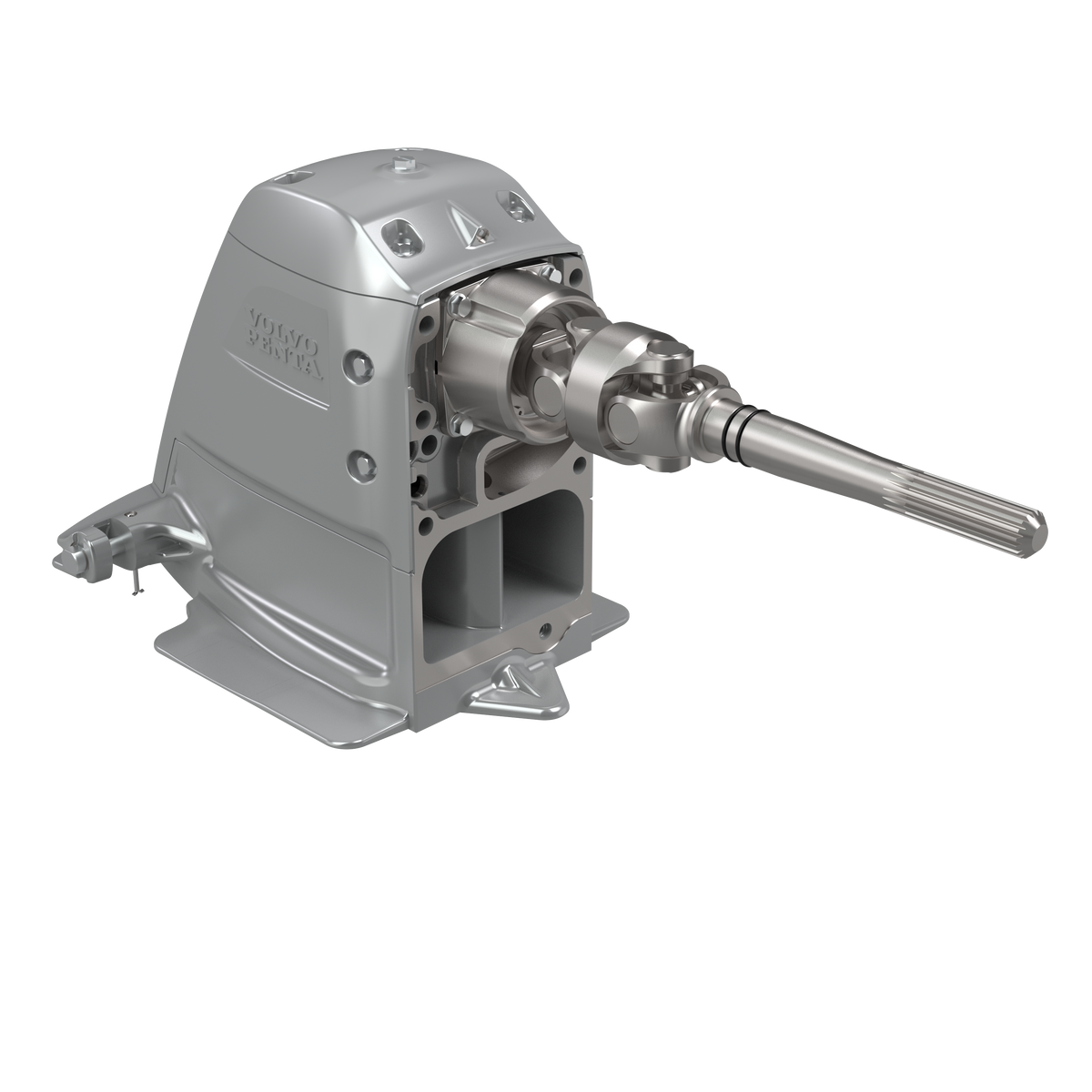

23290086 Upper Gear | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta Silent Shift upper gear, weighing 32.205 kg and listed for 152 applications across V, SX, DPS, FWD and D series engines and drives. It replaces the existing upper gear and its cone clutch with a multi-plate clutch for smooth, near-silent shifting, and mates with the lower gear of the drive already fitted. This is the unit listed against SX drives with the 1.51, 1.60 and 1.66 ratios, DPS drives with 1.78 and 1.95, and FWD drives with 1.95, covering SX-A and newer, DPS-A and newer, and all FWD versions. It shares its weight exactly with 23290085, so the ratio group is what separates them. It consolidates five earlier references.

🚤 Compatibility

• Engine Family: V, SX, DPS, FWD, D
• HP Range: 140-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Multi-plate clutch in place of the traditional cone clutch
• For SX ratios 1.51, 1.60 and 1.66, DPS 1.78 and 1.95, and FWD 1.95
• SX-A and newer, DPS-A and newer, all FWD versions
• Mates with the lower gear of the existing drive
• 32.205 kg, the same as 23290085
• Consolidates five earlier references
• Multi-plate clutch replaces the traditional cone clutch
• Smooth and soundless shifting, most noticeable at low speed and when docking
• Dps ratios: 1:78, 1:95
• Fwd ratios: 1:95
• Sx ratios: 1:51, 1:60, 1:66
• Fits: SX, DPS and FWD Aquamatic sterndrives
• Also supersedes Volvo part numbers 21615542, 21766684, 22104467, 22491352, 22491357, 22492122, 3883600 and 3883602

🔌 Function

Carries the drive's input shaft and upper bevel gear set on a multi-plate clutch, turning engine rotation through ninety degrees and setting the drive's gear ratio.

⚠️ Common Signs of Failure

• Whine or growl from the upper drive that rises with engine speed
• Milky or grey gear oil at the oil change
• Metallic glitter on the drain plug magnet
• Play felt at the input shaft when turned by hand
• Pitted, chipped or spalled bevel teeth found on strip-down

🛠️ Service Notes

• It weighs the same as 23290085 and covers the same applications, so weight is no guide - order by drive family and ratio
• The upper gear mates with the lower gear you already have, so the ratio must match the drive
• 23290087 is the third unit in the listing, covering the 2.14 ratio on DPS and FWD
• Only the upper gear unit is changed - the existing lower gear is retained
• SX ratios apply from SX-A and newer, DPS ratios from DPS-A and newer, and all FWD versions are covered

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23290086 → Supersedes 23289377

OEM / Related Numbers

• 22491347 earlier number superseded by this part
• 22491333 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-B, V8-320-E-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-270-B, V8-270-E-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D1, FWD-D2, FWD-F, FWD-F2, FWD-G, FWD-G1
• Volvo Penta D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H
• Volvo Penta DPS-D, DPS-D1
• Volvo Penta SX-D
