23290087 Upper Gear | Genuine Volvo Penta Part

🔧 Product Description

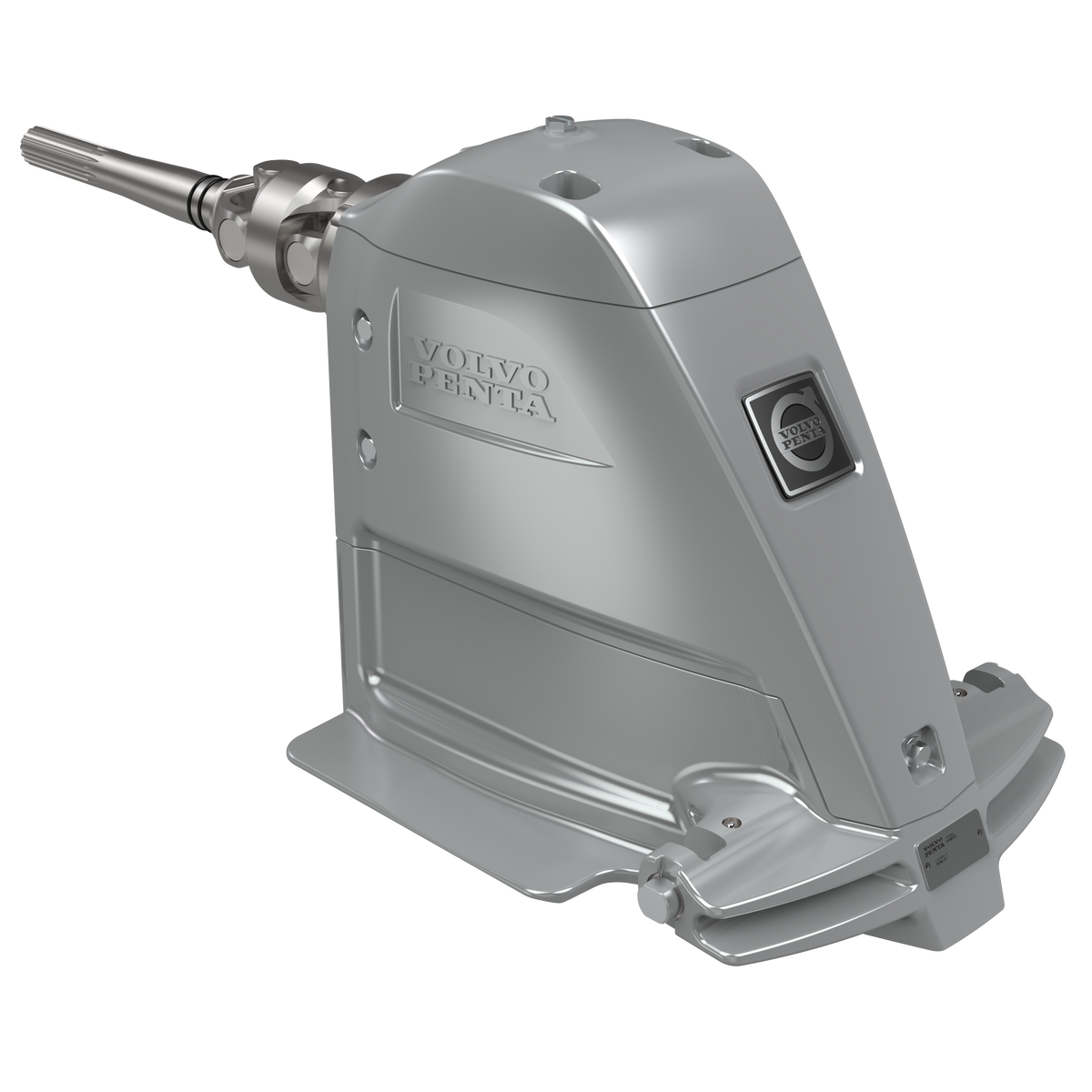

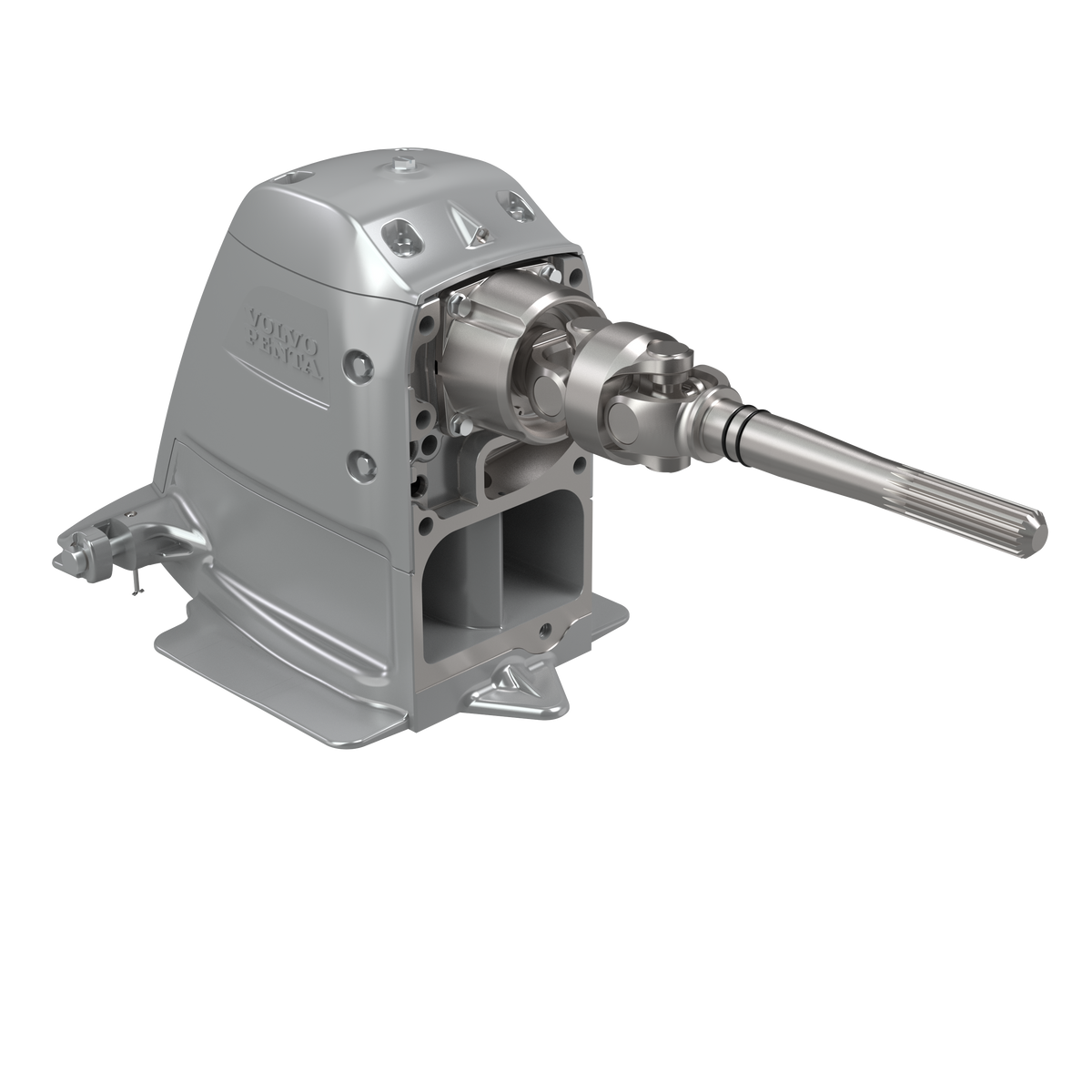

Genuine Volvo Penta Silent Shift upper gear, weighing 20.865 kg and listed for 151 applications across V, DPS, FWD and D series engines and drives. It replaces the existing upper gear and its cone clutch with a multi-plate clutch for smooth, near-silent shifting, and mates with the lower gear of the drive already fitted. It is the unit listed against the 2.14 ratio on DPS and FWD drives, and the only one of the three with no SX listing at all - the SX column is blank against it. At 20.865 kg it is the lightest of the three listed here, and it consolidates four earlier references.

🚤 Compatibility

• Engine Family: V, DPS, FWD, D
• HP Range: 140-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Multi-plate clutch in place of the traditional cone clutch
• For the 2.14 ratio on DPS and FWD drives
• No SX listing - the only one of the three without one
• Mates with the lower gear of the existing drive
• 20.865 kg, the lightest of the three listed here
• Consolidates four earlier references, one catalogued as a gear housing
• Multi-plate clutch replaces the traditional cone clutch
• Smooth and soundless shifting, most noticeable at low speed and when docking
• Dps ratios: 2:14
• Fwd ratios: 2:14
• Fits: SX, DPS and FWD Aquamatic sterndrives (no SX ratio is listed against this part)
• Also supersedes Volvo part numbers 21766685, 22104410, 22491358, 22861607, 23289379 and 3869463

🔌 Function

Carries the drive's input shaft and upper bevel gear set on a multi-plate clutch, turning engine rotation through ninety degrees and setting the drive's gear ratio.

⚠️ Common Signs of Failure

• Whine or growl from the upper drive that rises with engine speed
• Milky or grey gear oil at the oil change
• Metallic glitter on the drain plug magnet
• Play felt at the input shaft when turned by hand
• Pitted, chipped or spalled bevel teeth found on strip-down

🛠️ Service Notes

• This unit is listed only against DPS and FWD drives on the 2.14 ratio, so an SX drive takes 23290085 or 23290086 depending on its ratio
• The upper gear mates with the lower gear you already have, so the ratio must match the drive
• 23290091 is the other 2.14 upper gear and is roughly twice the weight over a much wider fitment list, so check the fitment as well as the ratio
• Only the upper gear unit is changed - the existing lower gear is retained
• SX ratios apply from SX-A and newer, DPS ratios from DPS-A and newer, and all FWD versions are covered

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23290087 → Supersedes 22227298

OEM / Related Numbers

• 21591372 earlier number superseded by this part
• 22227298 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-B, V8-320-E-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-270-B, V8-270-E-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-200-A, V6-225-A, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D1, FWD-D2, FWD-F, FWD-F2, FWD-G, FWD-G1
• Volvo Penta D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H
• Volvo Penta DPS-D, DPS-D1
