23316639 Mounting Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta mounting package for the 7-inch EVC colour display. The kit supports both bail-mount and flush-mount installation methods on EVC-E4 helm systems. The display itself, EVC harnesses and control modules are separate.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-435 HP
• Year Range: Approximately mid-2010s onward

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta OEM 7-inch display mounting kit
• Correct Volvo Penta part number 23316639
• Supports bail-mount and flush-mount installation
• Designed for Volvo Penta EVC-E4 display systems
• Display and electronic harnesses sold separately

📋 Kit Contents

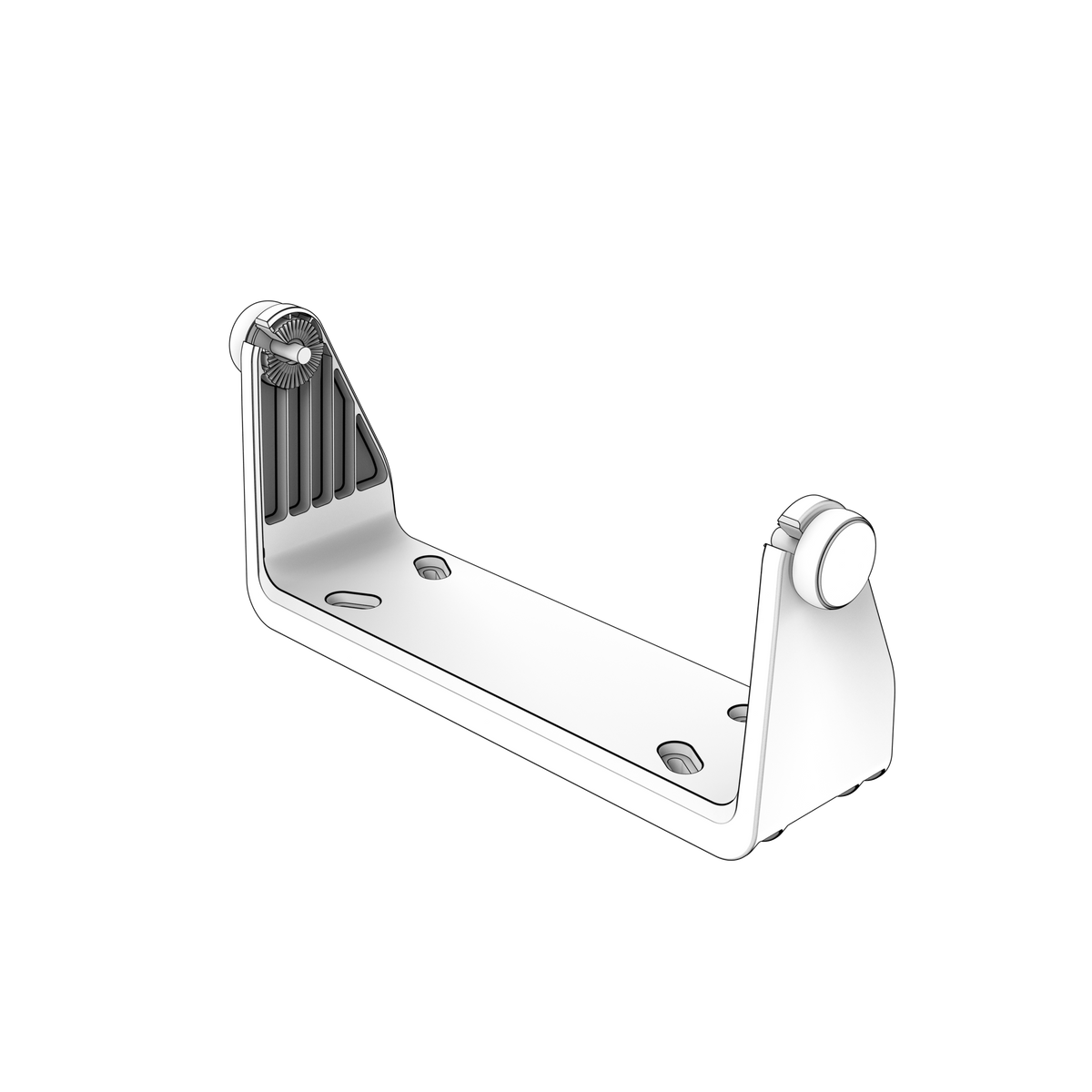

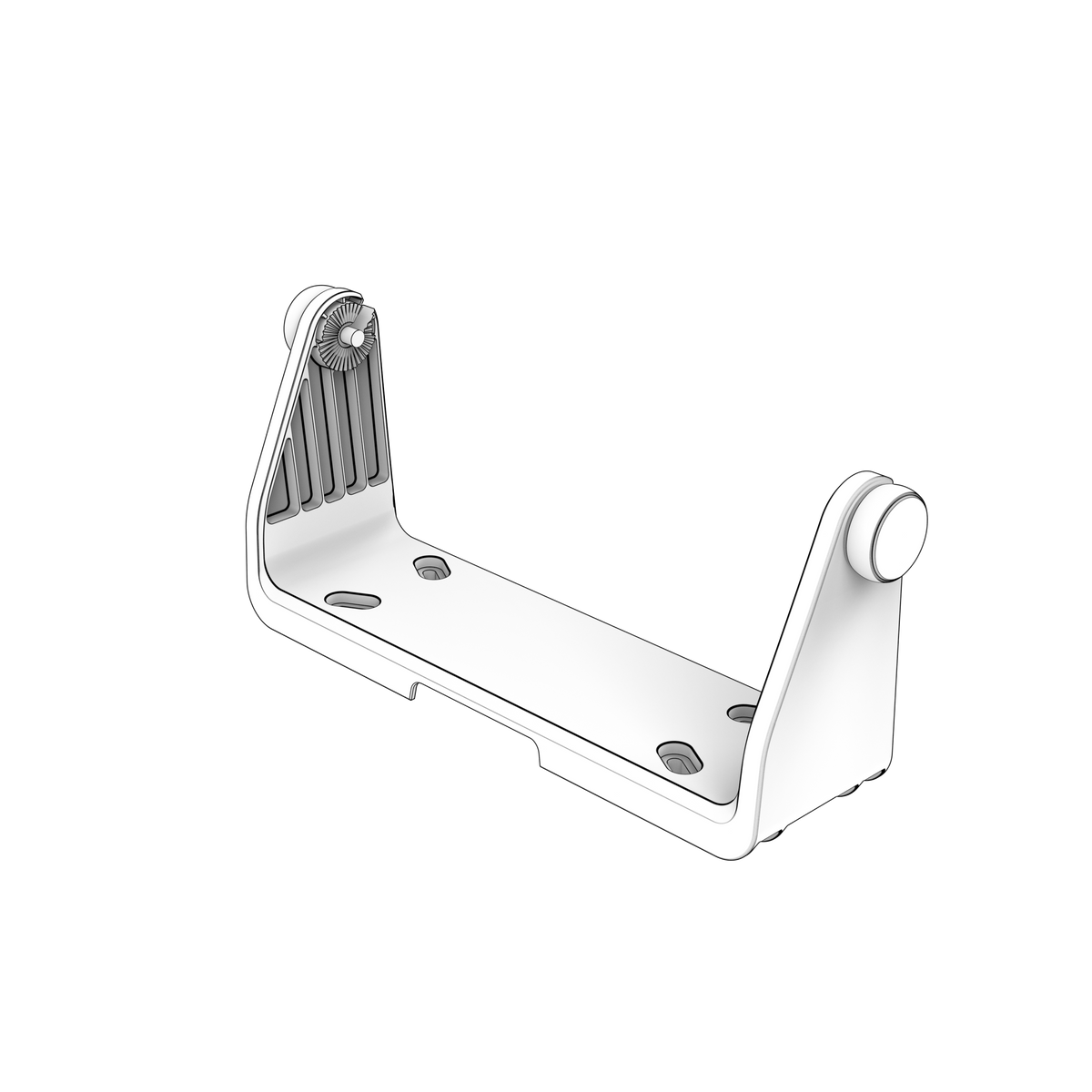

• 7-inch display bail-mount bracket and fastening hardware - supplied under kit number 23316639 - quantity 1 set
• 7-inch display flush-mount bracket and fastening hardware - supplied under kit number 23316639 - quantity 1 set
• Individual internal bracket and fastener numbers are not published separately

🔌 Function

The mounting hardware secures the 7-inch display either on an adjustable bail bracket or within a flush-cut helm opening.

⚠️ Common Signs of Failure

• Display moves or vibrates at the helm
• Bail bracket cracked or missing
• Flush-mount retainers do not secure the display
• Incorrect mounting kit selected for another display size
• Display or harness incorrectly assumed to be included

🛠️ Service Notes

• Use all the parts supplied and fit them as a set; the kit is matched, and mixing new parts with reused fasteners or bushes defeats the purpose of buying it
• Renew self-locking nuts, lock washers, tab washers and thread-locking compound rather than reusing the originals
• Check what the kit mounts to before assembly — clean out the threads and look for corrosion, wear, elongated holes and cracks around the fixing points
• Leave the fixings finger-tight until everything is located and aligned, then tighten in the order and to the figures given in the workshop manual for your engine
• Recheck the fixings for tightness after the first period of running, since new mountings bed in and settle

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A1-A MP, D8A2-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-F MH
• Volvo Penta D9A2L MH, D9A2M MP
