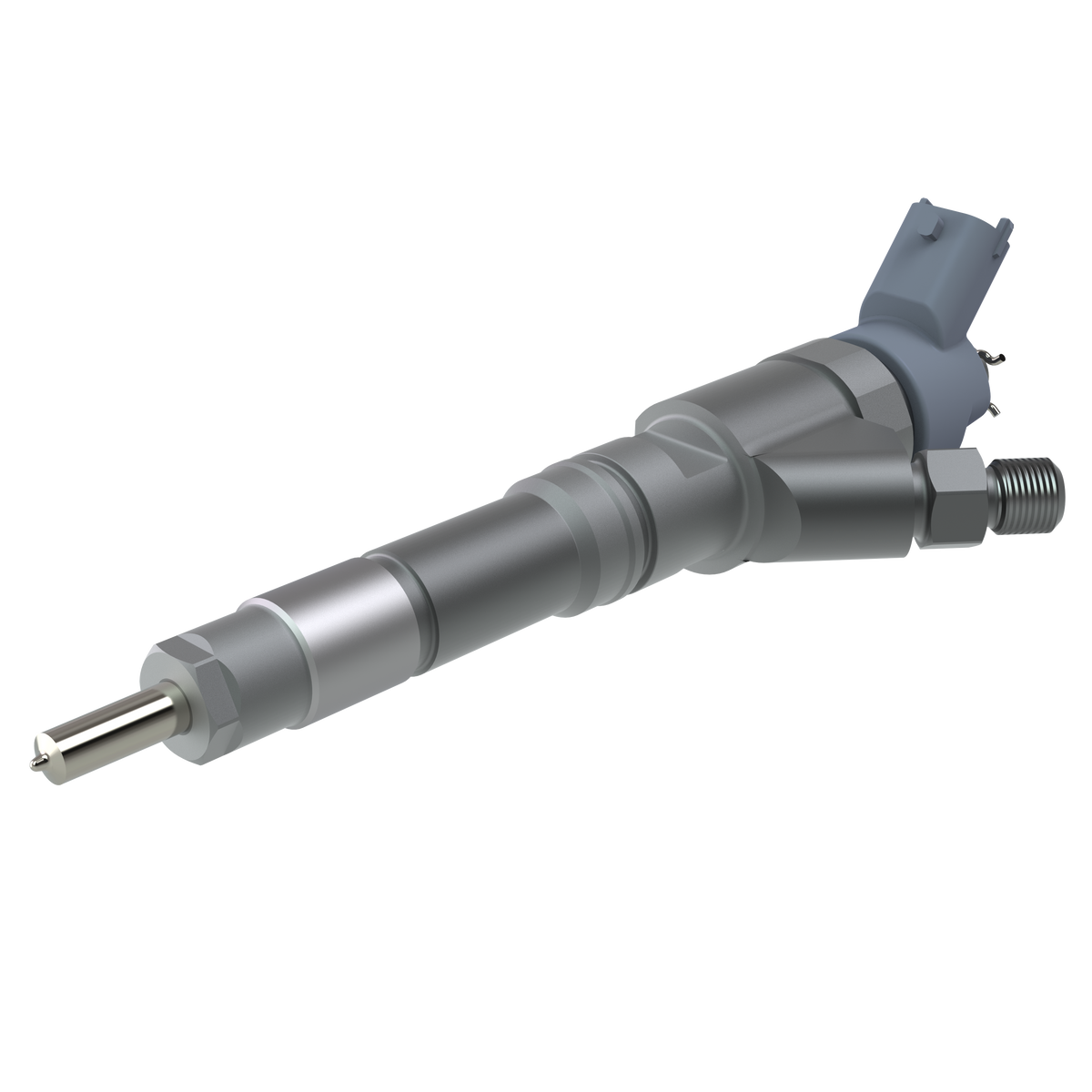

23324678 Injector | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta injector for engines from serial number 2004002080 onwards, weighing 0.610 kg and listed for 46 D series applications. It supersedes 23126517. Injector 23324683 covers engines UP TO 2004002080, so the serial number decides which side of the break the engine falls on.

🚤 Compatibility

• Engine Family: D
• HP Range: 180-370 HP
• Serial Range: SN2004002080-

Full model list at the end of this description.

⚙️ Key Features

• For engines from serial number 2004002080 onwards
• 0.610 kg
• Listed for 46 D series engine applications
• Supersedes 23126517
• Also supersedes Volvo part number 3587680

🔌 Function

Meters and atomises fuel into the cylinder at the pressure and timing the engine control unit commands, setting how cleanly and quietly that cylinder burns.

⚠️ Common Signs of Failure

• Rough idle, misfire or a knock traceable to one cylinder
• White or black smoke and a smell of unburnt fuel
• Hard starting and fuel consumption creeping up
• Injector fault code or a cylinder balance figure out of line with its neighbours
• Carbon around the injector seat, or a return flow well above the others, found on test

🛠️ Service Notes

• The serial number decides the injector - 23324683 covers engines up to 2004002080, and the two are only nine grams apart
• Renew the copper seat washer and sealing rings with the injector, and code the new injector to the control unit if the engine calls for it
• Check the fuel filters and water separator before fitting - dirty fuel takes a new injector out the same way it took the old one

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23324678 → Supersedes 23126517 → Supersedes 21188520

OEM / Related Numbers

• 23126517 earlier number superseded by this part
• 21188520 earlier number superseded by this part

Other-Brand OEM Numbers

• Bosch: 0 445 120 552

OEM Reman Alternatives

• Bosch Exchange: 0 986 435 677

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-350A-A, D6-350A-B, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-F, D6-370D-F, D6-310I-B, D6-280I-B, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-B, D6-370I-A, D6-370I-B, D6-330I-B, D6-310A-B, D6-310A-A, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-F, D4-260D-B, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-F, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
