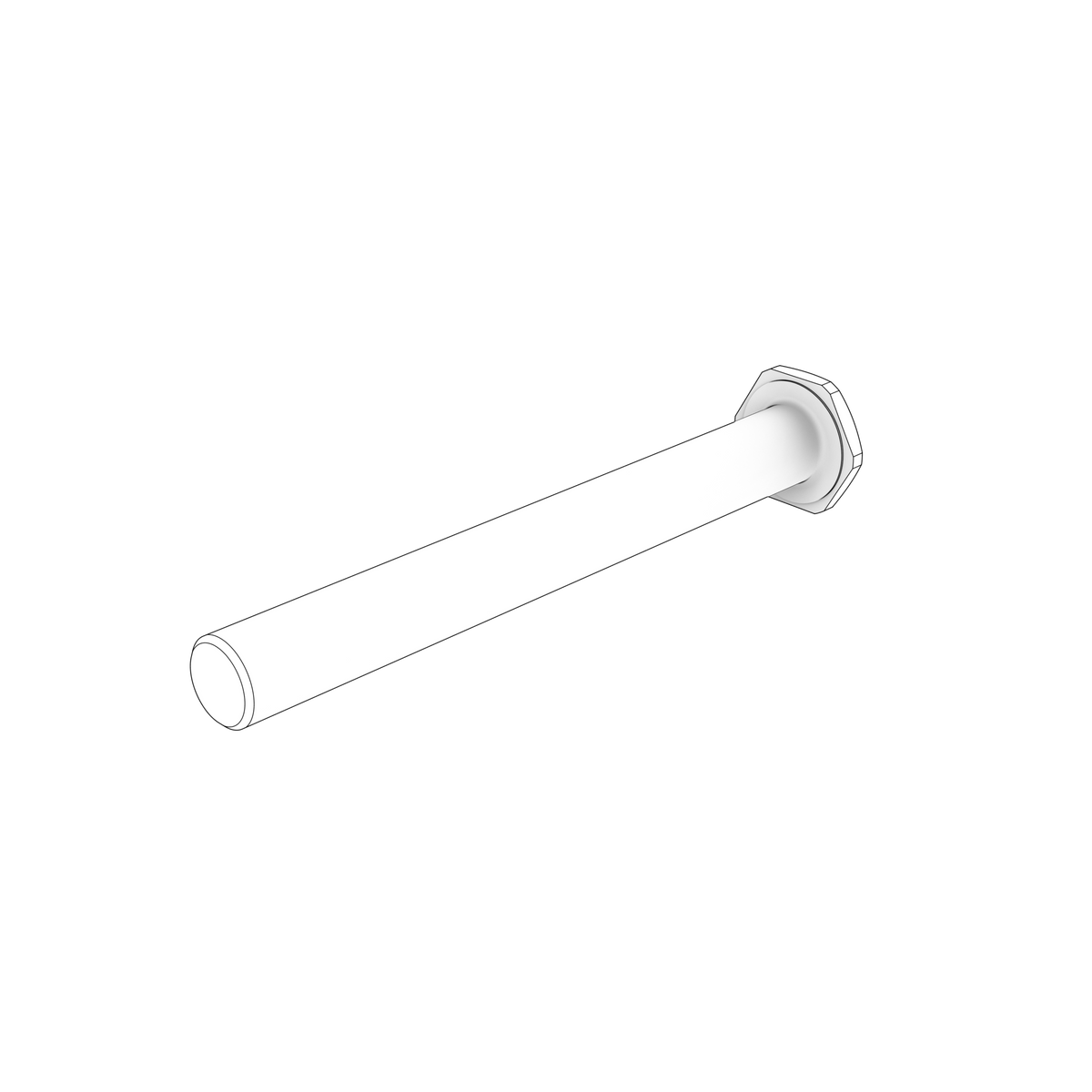

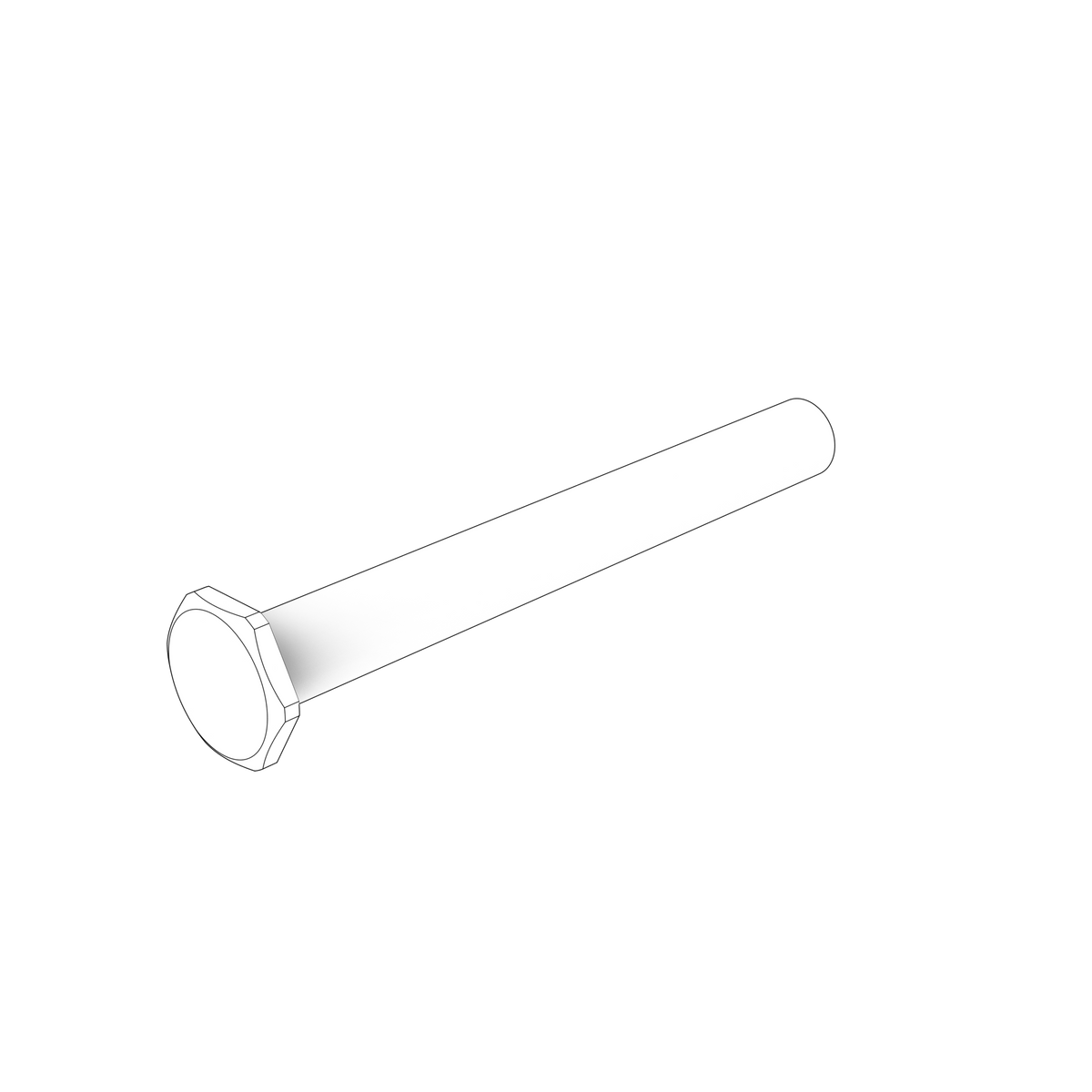

23345013 Hexagon Screw | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta hexagon screw from the Engine group, weighing 0.229 kg and listed for 75 V series applications. It supersedes 21740808, catalogued earlier as a bolt.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Hexagon screw from the Engine group
• 0.229 kg
• Listed for 75 V series applications
• Supersedes 21740808, catalogued earlier as a bolt
• 2 used per assembly

🔌 Function

Clamps two engine components together, holding the joint tight against vibration and thermal movement.

⚠️ Common Signs of Failure

• Joint working loose or weeping where it should be dry
• Screw found backed off, or its washer fretted bright
• Thread picked up, stretched or stripped on removal
• Head corroded or rounded so it will not take a socket
• Clamping face dished around the hole where the screw has been loose

🛠️ Service Notes

• Check the length, thread and strength grade of the replacement against the screw you removed — engine fasteners are chosen for a specific clamp load, and a longer or softer screw is not a substitute
• Clean the threads in the component and make sure the mating faces are clean and flat before assembly; dirt, paint or old sealant in a joint feels like tightness and leaves the joint loose
• Tighten to the torque figure and the tightening sequence given in the workshop manual for your engine, working up progressively rather than pulling each screw down in one go
• Use thread locking or sealing compound only where the manual calls for it, and renew the locking washer, tab washer or nut that works with the screw
• Renew rather than reuse screws that are corroded, thread-damaged or visibly stretched, and any screw the manual tightens by torque-plus-angle

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23345013 → Supersedes 21740808 → Supersedes 3852566

OEM / Related Numbers

• 21740808 earlier number superseded by this part
• 3852566 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
