23370813 Reversing Gear Kit | Genuine Volvo Penta Part

🔧 Product Description

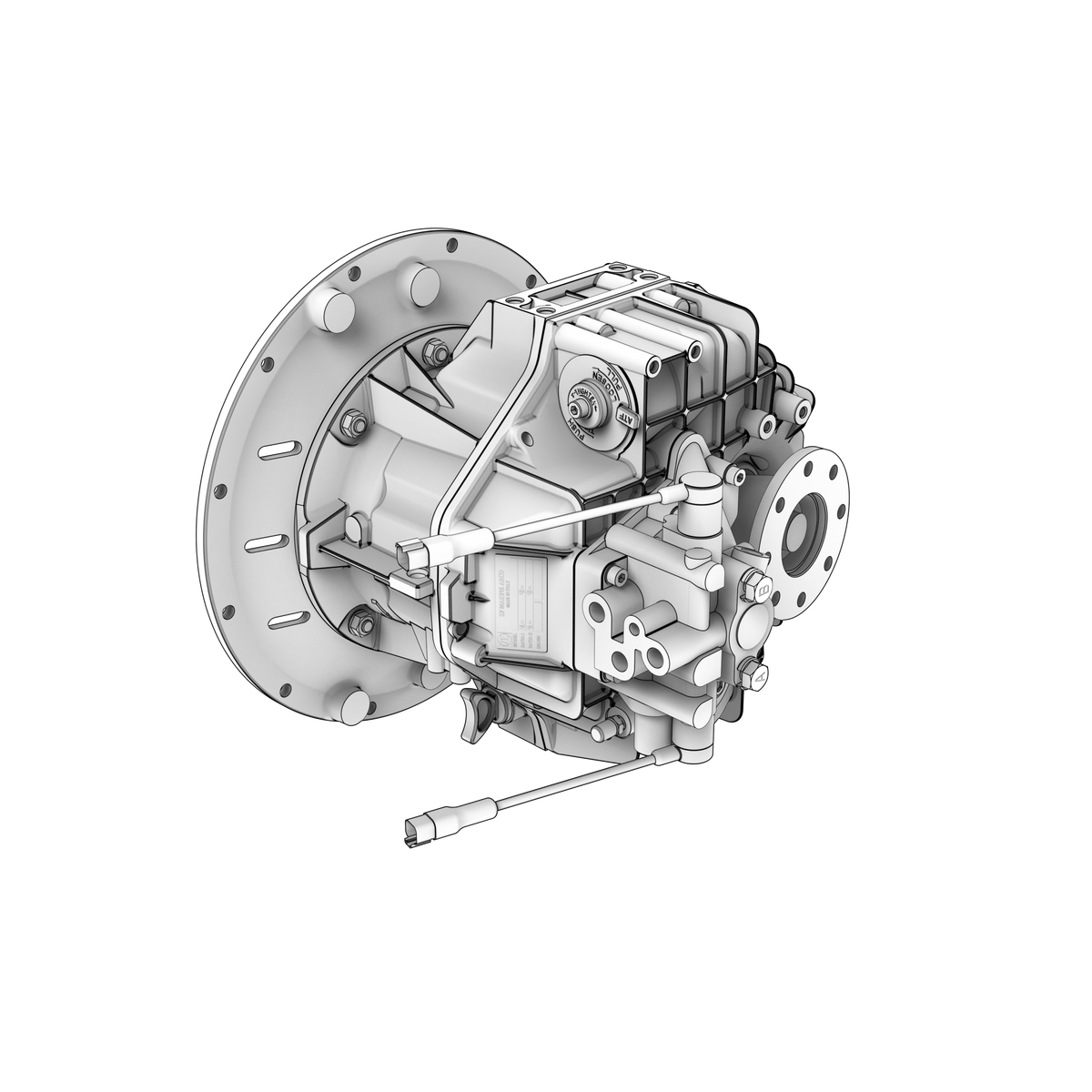

A genuine Volvo Penta complete HS68A-A hydraulic marine reverse gear with a 2.04:1 reduction. The product is supplied as the complete assembled transmission; the numbered items below are its major integrated service components and ratio-specific internal parts.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-340I-G
• Volvo Penta D6-380I-G
• Volvo Penta D4-175I-G
• Volvo Penta D4-230I-G
• Volvo Penta D4-270I-G
• Volvo Penta D4-320I-G
• Volvo Penta D4-300I-G
• Volvo Penta D6-300I-G
• Volvo Penta HS68A-A
• Volvo Penta D4-145I-G
• Volvo Penta D4-175 VG

• Engine Family: D, HS
• HP Range: 145-380 HP

⚙️ Key Features

• Factory reduction ratio 2.04:1
• Hydraulically actuated multi-disc clutch packs
• Complete assembled marine transmission
• Compatible with D4 and D6 G-generation inboard packages
• Related clutch-disc and sealing service kits available
• Engine type: Volvo Penta hydraulically shifted marine reverse gear
• Ratio 2.037:1 (Volvo assembly listing)
• Also supersedes Volvo part numbers 21228438, 3581843 and 3849255

📋 Kit Contents

• 1 x complete assembled HS68A-A reverse gear - Volvo Penta 23370813
• 1 x input shaft - Volvo Penta 3584030
• 1 x input shaft - Volvo Penta 3584028
• 1 x detent ball - Volvo Penta 3582113
• 1 x ring - Volvo Penta 3582109
• 1 x clutch piston - Volvo Penta 3582107
• 1 x piston ring - Volvo Penta 3582111
• 1 x spring - Volvo Penta 3584029
• 1 x retaining ring - Volvo Penta 3582116
• 1 x disc - Volvo Penta 3582101; also included in service kit 23370770
• 1 x clutch disc - Volvo Penta 23370750
• 1 x end disc - Volvo Penta 3582105
• 1 x snap ring - Volvo Penta 3582103
• 1 x key - Volvo Penta 3582089
• 1 x bearing - Volvo Penta 3582177
• 2 x friction washers - Volvo Penta 3582080
• 1 x bearing - Volvo Penta 3582084
• 1 x piston ring - Volvo Penta 3582087
• 1 x roller bearing - Volvo Penta 183648
• Ratio-setting shims - Volvo Penta 3582091, 3582093, 3582094 and 3582097
• 1 x roller bearing - Volvo Penta 184083
• 1 x roller bearing - Volvo Penta 18473
• 1 x flange screw - Volvo Penta 975126
• 1 x spacer - Volvo Penta 3582126
• 1 x O-ring - Volvo Penta 3582122
• 1 x flange - Volvo Penta 23587198
• 1 x seal - Volvo Penta 3582052
• 1 x roller bearing - Volvo Penta 11137
• 1 x roller bearing - Volvo Penta 184693
• Output-shaft shims - Volvo Penta 3582133, 3582135, 3582137 and 3582139
• 1 x baffle plate - Volvo Penta 3582071
• Hexagon screws - Volvo Penta 60111854
• 1 x suction pipe - Volvo Penta 3809160
• 1 x ratio-specific reverse gear - Volvo Penta 23587200; supplied only with the applicable gear assembly where stated
• 1 x ratio-specific gear - Volvo Penta 23587201; ratio 2.04:1
• 1 x ratio-specific shaft - Volvo Penta 23587202
• 1 x ratio-specific shaft - Volvo Penta 23587203

🔌 Function

The hydraulic clutch packs select ahead or astern rotation and transmit engine torque through the ratio-specific gear train at 2.04:1 to the propeller shaft.

⚠️ Common Signs of Failure

• Forward or reverse engagement is delayed
• Oil contains clutch material or metal
• Gearbox produces abnormal bearing or gear noise
• Housing, shafts or ratio-specific gears are damaged beyond economical repair

🛠️ Service Notes

• Work clean and dry — the reversing gear circulates its oil through everything in this kit, so grit introduced during assembly ends up in the gears and bearings
• Fit the new seals, gaskets and locking parts supplied with the kit and discard the corresponding old ones, including any that still look serviceable
• Inspect the flexible coupling, shift linkage, control cable and mountings while the gear is accessible; worn ones will undo the benefit of the new parts
• Refill with the oil grade and quantity specified for your reversing gear, then recheck the level after a short run once the new parts have taken up oil
• Confirm the gear engages fully and cleanly in both ahead and astern and returns properly to neutral before the boat is used

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23370813 → Supersedes 22775477 → Supersedes 40005672

OEM / Related Numbers

• 22775477 earlier number superseded by this part
• 23370769 sealing kit
• 23370770 clutch-disc service kit
• 23370750 clutch disc
• 23587200 related reference
• 23587201 related reference
• 23587202 related reference
• 23587203 related reference

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
