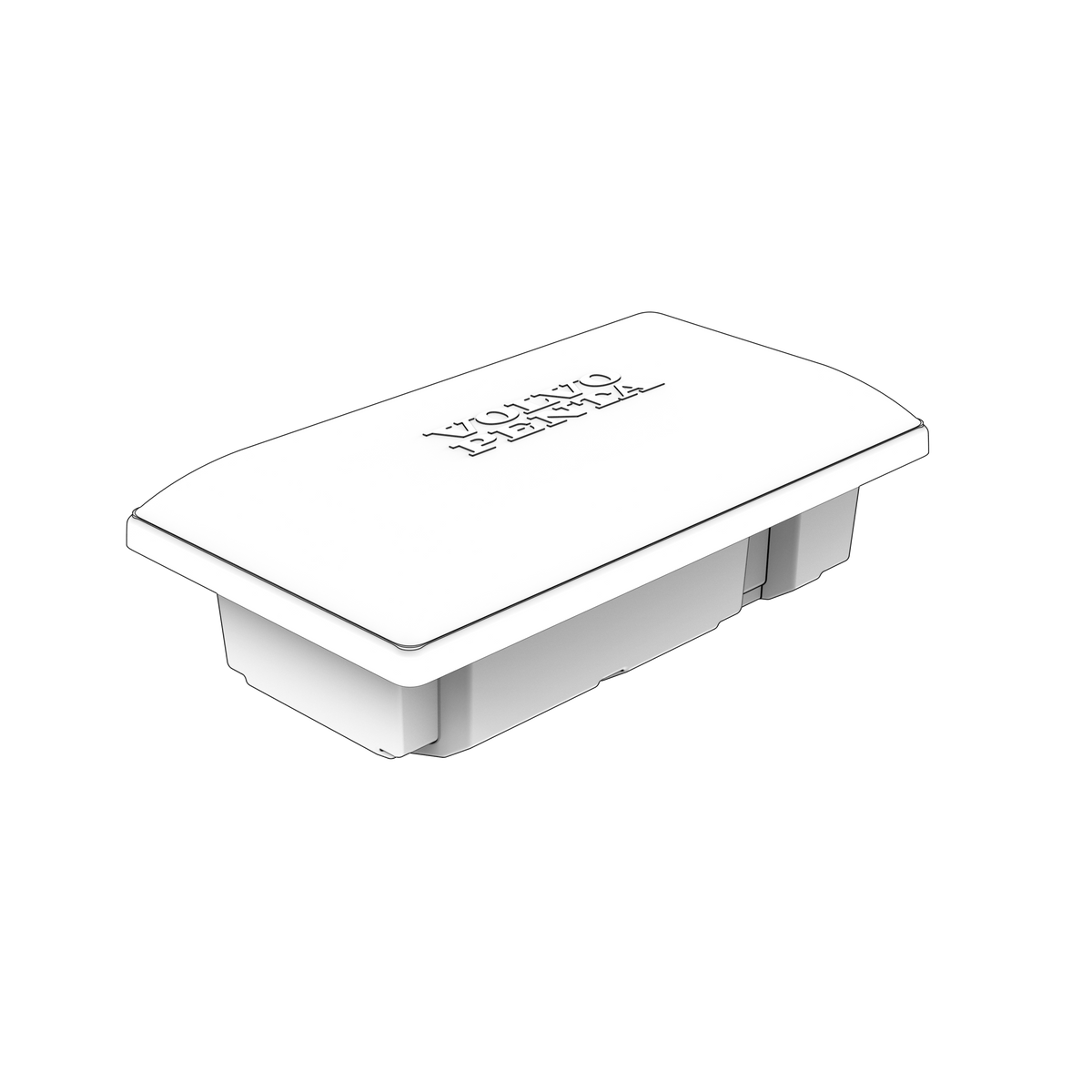

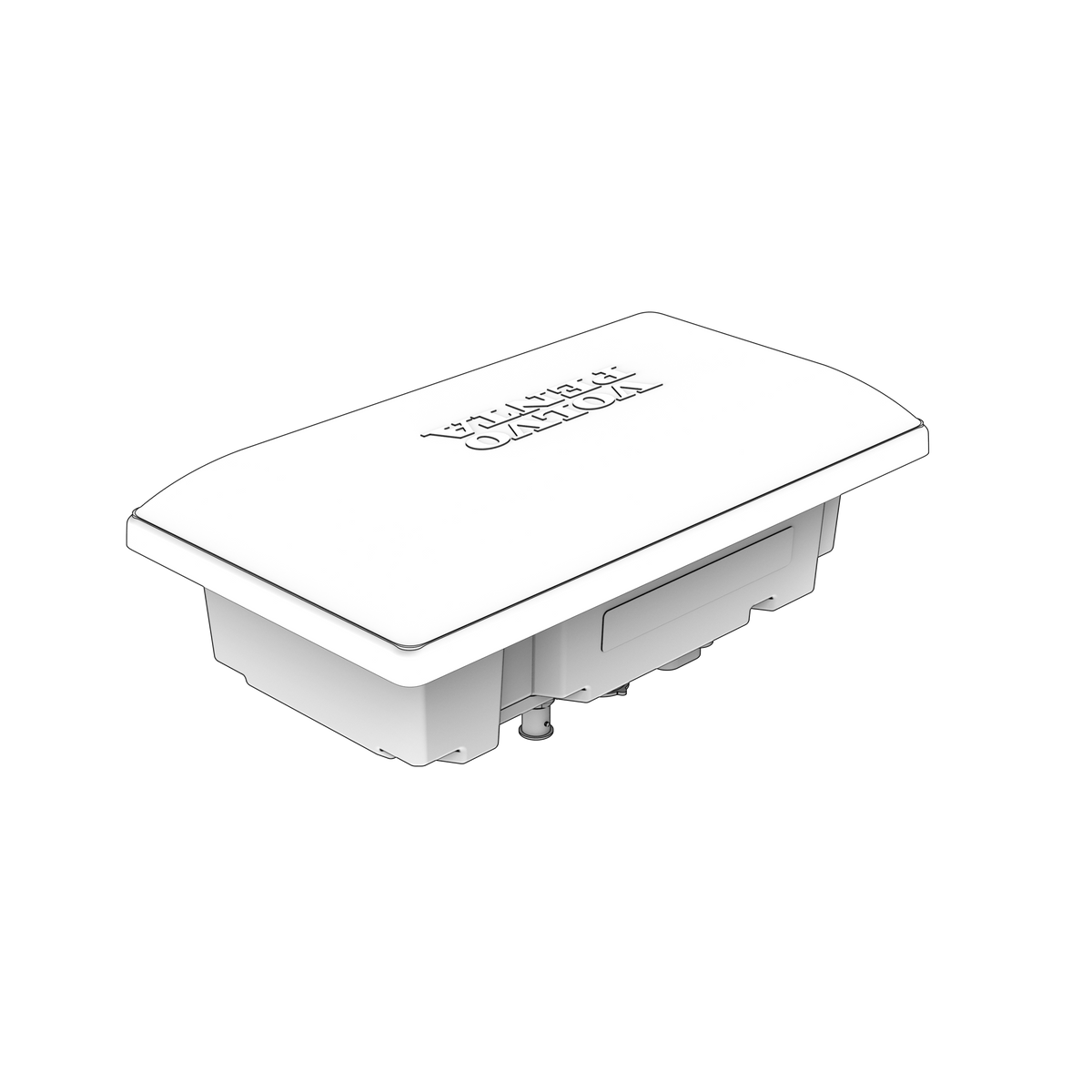

23412336 Display | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta display from the Instruments group, weighing 1.2 kg and listed for 46 D series engine applications. It cannot be combined with a 2.5 inch or 4 inch display, so check what is already installed. It supersedes 22722419.

🚤 Compatibility

• Engine Family: D
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• 7 inch display
• 1.2 kg
• Listed for 46 D series engine applications
• Cannot be combined with a 2.5 inch or 4 inch display, so check what is already installed
• Supersedes 22722419

🔌 Function

Presents the engine and system information to the operator at the helm, showing readings, alarms and settings from the control system on one screen.

⚠️ Common Signs of Failure

• Screen dim, blank, flickering or showing bands and dead areas
• Backlight failed so the screen is only readable in bright light
• Display resetting or dropping its network connection while running
• Water ingress, misting behind the glass or corrosion at the rear connector
• Buttons or touch response unreliable or dead in one area

🛠️ Service Notes

• Check what is already fitted before ordering - this display must not be combined with a 2.5 inch or 4 inch unit in the same installation
• Check the supply voltage and the network connector before condemning the display; a poor connection gives the same resetting complaint
• Seal the bezel properly on refitting - water behind the glass is what kills helm displays

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23412336 → Supersedes 22722419 → Supersedes 22499420 → Supersedes 22324141

OEM / Related Numbers

• 22722419 earlier number superseded by this part
• 22499420 earlier number superseded by this part
• 22324141 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP
• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A1-A MP, D8A2-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D9A2L MH, D9A2M MP
• Volvo Penta D16C-D MH
