23427066 Propeller Kit | Genuine Volvo Penta Part

🔧 Product Description

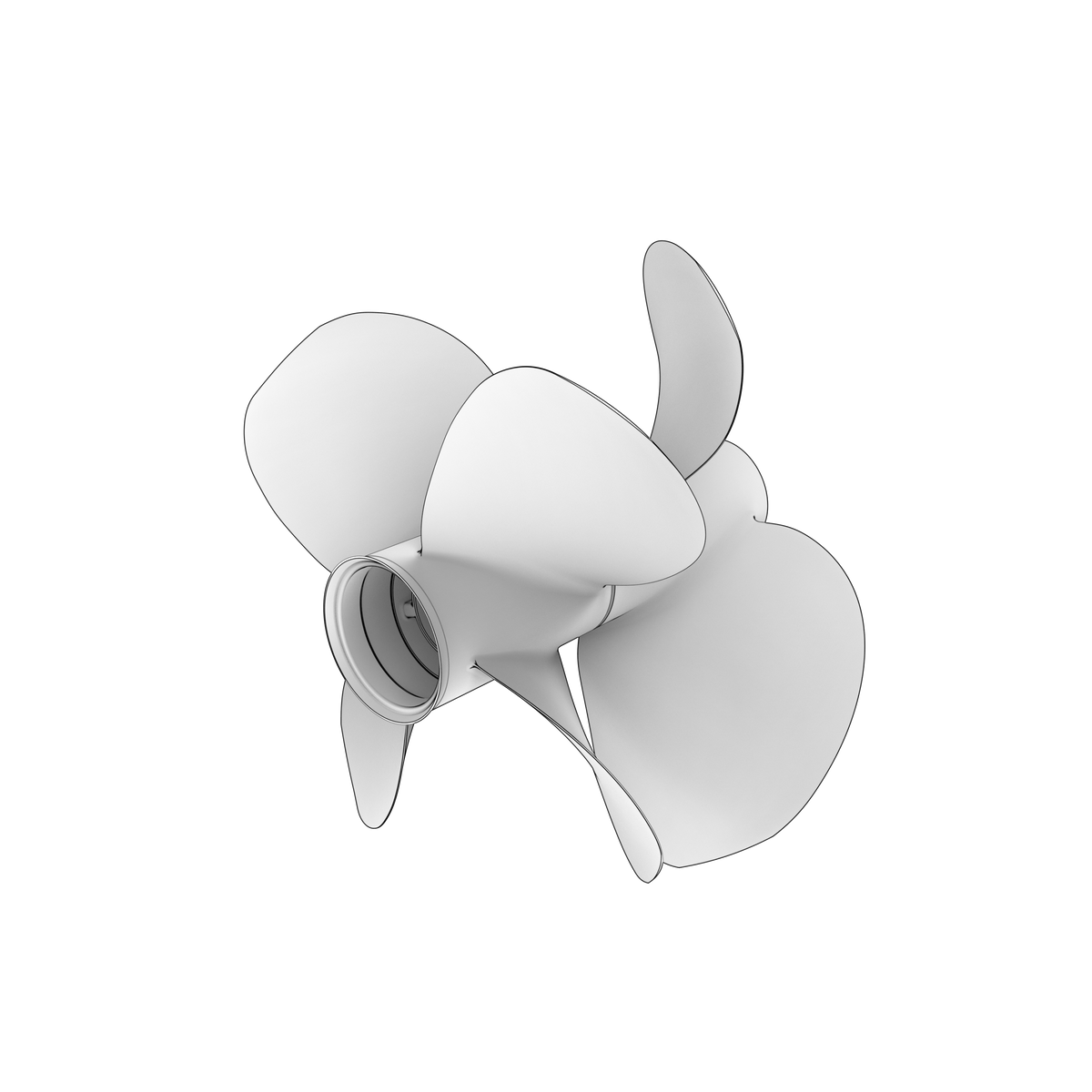

Genuine Volvo Penta type P6 nibral propeller set for Volvo Penta IPS 2, IPS 20, specifically developed for IPS with D11 engines to give outstanding efficiency, onboard comfort and manoeuvrability. The set supplies the matched three-blade front propeller and four-blade rear propeller together. Volvo Penta IPS turns the propellers round to a forward-facing position, so the twin counter-rotating propellers pull the boat through the water rather than push it, and optimal interaction between the front and rear propeller holds performance and fuel efficiency across the whole speed range.

🚤 Compatibility

Typically suits:

• Volvo Penta D11C2-A MP
• Volvo Penta D11C4-A MP
• Volvo Penta IPS20-E

• Engine Family: D, IPS

⚙️ Key Features

• Type P6 propeller set, front and rear supplied together
• Three-blade front propeller and four-blade rear propeller in Nibral nickel-bronze-aluminium alloy
• 57.379 kg for the set
• Listed for three applications across D series engines and IPS pod drives
• Supersedes propeller kit 3843968
• Includes flow deflector to reduce shaft seal wear
• Extremely strong and specially developed nibral (nickel-bronze-aluminium) alloy.
• Minimum growth, excellent durability and corrosion resistance.
• Patented flow deflector minimizes pressure and wear on propeller shaft seals.
• Fully CNC machined for exact tolerances and perfect geometry.
• Precise balancing for minimal vibration, quiet running and less wear on the drivetrain.
• The type P/PS propeller is type approved by DNV for D11 IPS650 and IPS800.
• Supplied as a matched front and rear pair.
• Material: nibral
• Fits: Volvo Penta IPS 2, IPS 20 (D11 engines)
• Type: P6
• Set contains: front 23427076, rear 23427086

📋 Kit Contents

• 1 x three-blade front propeller - Volvo Penta 23427076
• 1 x four-blade rear propeller - Volvo Penta 23427086

🔌 Function

Provides the matched counter-rotating pair that converts the pod drive's torque into thrust, the front and rear propellers working together so the rear recovers the swirl left by the front.

⚠️ Common Signs of Failure

• Vibration through the hull that rises with shaft speed
• Loss of top speed, or the engine unable to reach its rated maximum revolutions
• Blade edges nicked, bent or torn back from a strike
• Blades pitted, cratered or eaten away by cavitation and corrosion
• Marine growth or fouling built up on the blade faces

🛠️ Service Notes

• Front and rear must be fitted as the matched pair - mixing dimensions or fitting one new propeller against a damaged one loses the balance and the efficiency
• Check the engine reaches its rated maximum revolutions at wide open throttle after fitting; the dimension code is chosen to load the engine correctly
• Inspect the shaft seals, cones and the shafts themselves while the propellers are off
• The type P/PS series runs PS4, PS5, P1, P2, P3, P4, P5, P6, P7, P8 from moderate top speed to high top speed; P6 sits of 10 on that scale.
• Both propellers on a drive must carry the same type code - the front and rear are matched for torque distribution and mixing codes changes how the load is shared.
• Line cutter 21686494 is the one listed for Volvo Penta IPS 2, IPS 20.
• Volvo Penta water-resistant multi-purpose premium grease is recommended for propeller shafts and all other propeller components.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23427066 → Supersedes 3843968

OEM / Related Numbers

• 3843968 earlier number superseded by this part
• 23427076 related reference
• 23427086 related reference
• 21154200 propeller cone
• 963699 hexagon socket screw
• 21154206 front propeller nut
• 3593639 felt washer
• 21686494 line cutter
• 21154277 rear propeller nut
• 3843992 flow deflector
• 85145750 locking fluid

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
