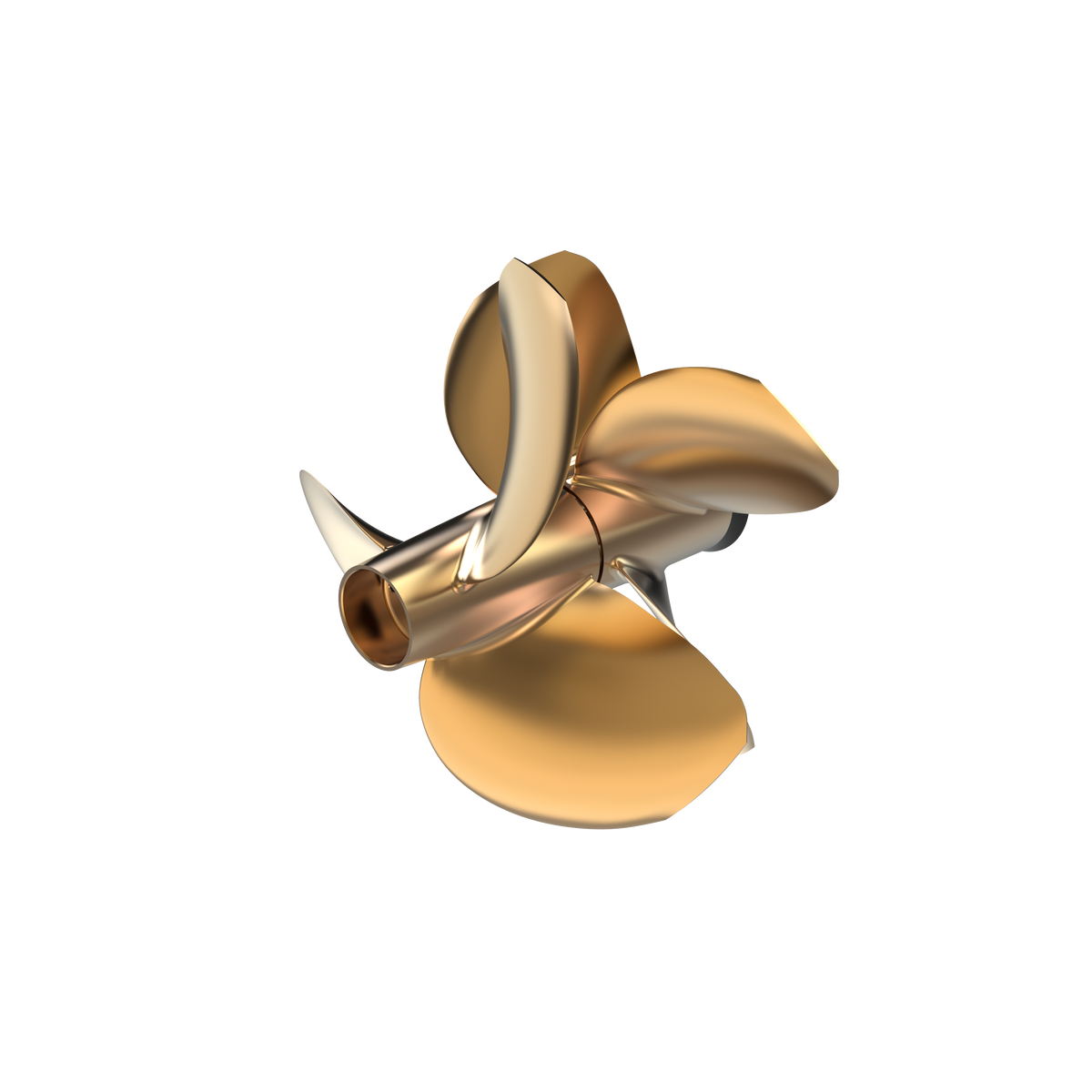

23442955 Propeller Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta type T5 nibral propeller set for Volvo Penta IPS 1, IPS 10, specifically developed for IPS with D4 and D6 engines to give outstanding efficiency, onboard comfort and manoeuvrability. The set supplies the matched three-blade front propeller and four-blade rear propeller together. Volvo Penta IPS turns the propellers round to a forward-facing position, so the twin counter-rotating propellers pull the boat through the water rather than push it, and optimal interaction between the front and rear propeller holds performance and fuel efficiency across the whole speed range.

⚙️ Key Features

• Type T5 matched front and rear set for IPS 1 and IPS 10
• Nibral nickel-bronze-aluminium alloy, the Type T/TS series for IPS with D4 and D6 engines
• 18.597 kg
• Front propeller 24044385 and rear propeller 24044435 supplied together
• Supersedes 3861101
• 3-blade front propeller with 4-blade rear, counter-rotating
• Includes flow deflector to reduce shaft seal wear
• Extremely strong and specially developed nibral (nickel-bronze-aluminium) alloy.
• Minimum growth, excellent durability and corrosion resistance.
• Patented flow deflector minimizes pressure and wear on propeller shaft seals.
• Three-blade front propeller and four-blade rear propeller.
• Fully CNC machined for exact tolerances and perfect geometry.
• Precise balancing for minimal vibration, quiet running and less wear on the drivetrain.
• Supplied as a matched front and rear pair.
• Material: nibral
• Fits: Volvo Penta IPS 1, IPS 10 (D4 and D6 engines)
• Type: T5
• Set contains: front 24044385, rear 24044435

📋 Kit Contents

• 1 x three-blade front propeller - Volvo Penta 24044385
• 1 x four-blade rear propeller - Volvo Penta 24044435

🔌 Function

Supplies both halves of the pod's counter-rotating pair, sized as one unit so the two propellers share the load the way the drive was designed for and let the engine reach its rated wide-open-throttle speed. Changing size changes how hard the engine has to work, which is what the T5 designation records.

⚠️ Common Signs of Failure

• Vibration through the deck that rises with revolutions
• Boat slow to plane or short of its usual speed
• Blade damage after a rope strike or grounding
• Cavitation pitting across the blade faces
• Fretted hub taper or damaged blade roots found on strip-down

🛠️ Service Notes

• Both propellers of a drive must carry the same designation - fitting a T5 propeller against any other size loads the engine wrongly, so renew the pair together and check the marking on each before fitting
• The published weight is identical to that of 23442956 (T6), so weight cannot separate the two - order by the designation
• Genuine Volvo Penta propellers carry a 12 month warranty, extended to 24 months including labour when supplied and fitted by an authorised Volvo Penta dealer
• The type T/TS series runs TS3, TS4, TS5, TS6, T2, T3, T4, T5, T6, T7, T8 from moderate top speed to high top speed; T5 sits of 11 on that scale.
• Both propellers on a drive must carry the same type code - the front and rear are matched for torque distribution and mixing codes changes how the load is shared.
• Line cutter 23062729 is the one listed for Volvo Penta IPS 1, IPS 10.
• Volvo Penta water-resistant multi-purpose premium grease is recommended for propeller shafts and all other propeller components.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23442955 → Supersedes 3861101

OEM / Related Numbers

• 3861101 earlier number superseded by this part
• 24044385 related reference
• 24044435 related reference
• 23779449 propeller cone kit
• 22072153 propeller cone
• 963699 hexagon socket screw
• 3861088 lock plate
• 21293480 front propeller nut
• 3861209 lock ring
• 3861087 rear lock nut
• 23062729 line cutter
• 3862454 flow deflector
• 23284156 locking fluid

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
