23473109 Engine Speed Sensor | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta engine speed sensor from the Marine Propulsion group, weighing 0.853 kg and listed for 13 D series engine applications. It supersedes 3849338; sensor 23473228 is less than half the weight and covers eight engines, so order by part number.

🚤 Compatibility

Typically suits:

• Volvo Penta D3-110I-H
• Volvo Penta D6-340I-G
• Volvo Penta D6-380I-G
• Volvo Penta D4-175I-G
• Volvo Penta D4-230I-G
• Volvo Penta D4-270I-G
• Volvo Penta D4-320I-G
• Volvo Penta D4-300I-G
• Volvo Penta D6-300I-G
• Volvo Penta D3-150I-H
• Volvo Penta D3-170I-H
• Volvo Penta D3-200I-H
• Volvo Penta D3-220I-H

• Engine Family: D
• HP Range: 110-380 HP

⚙️ Key Features

• Engine speed sensor from the Marine Propulsion group
• 0.853 kg
• Supersedes 3849338
• Listed for 13 D series engine applications
• Sensor 23473228 is 0.415 kg over eight engines - order by part number

🔌 Function

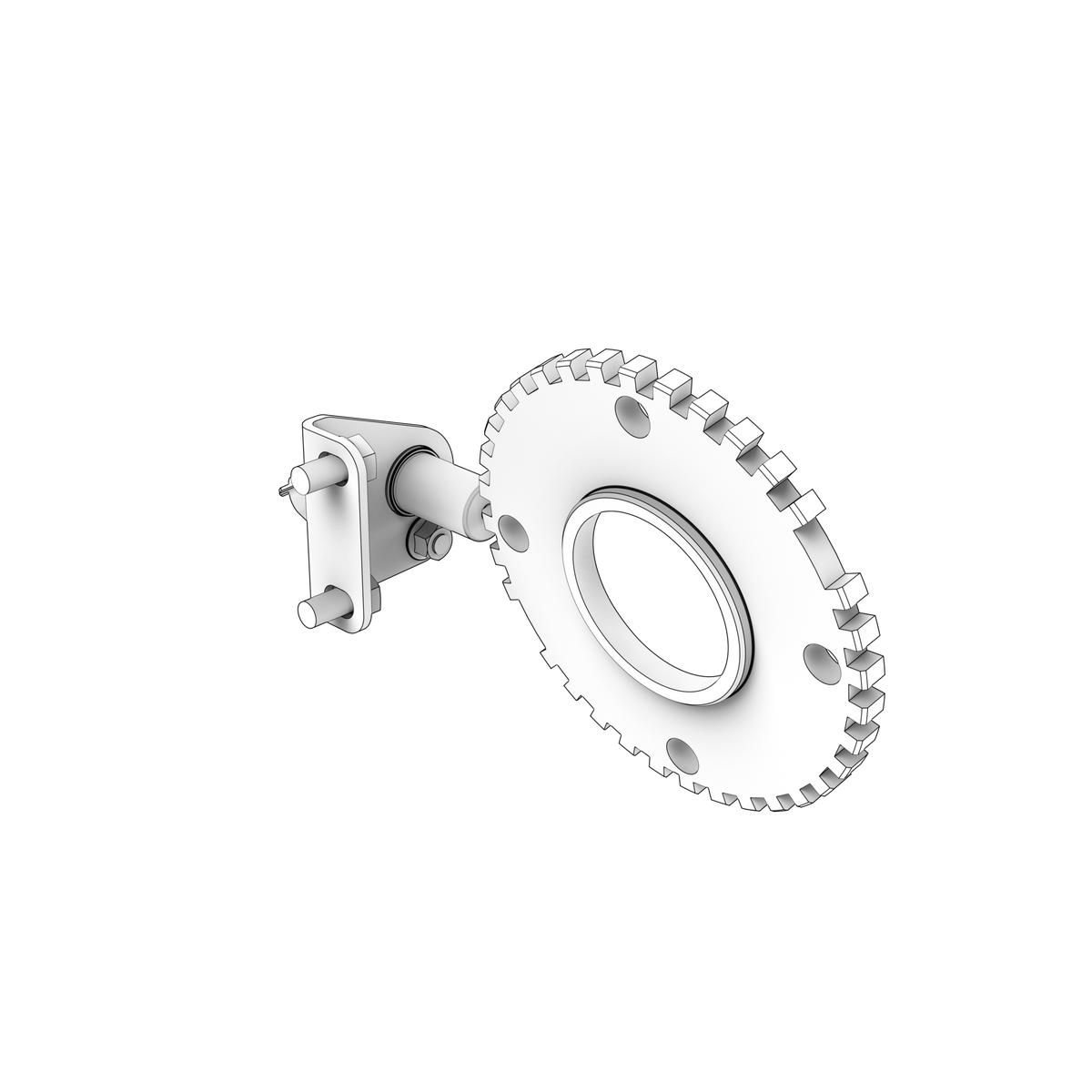

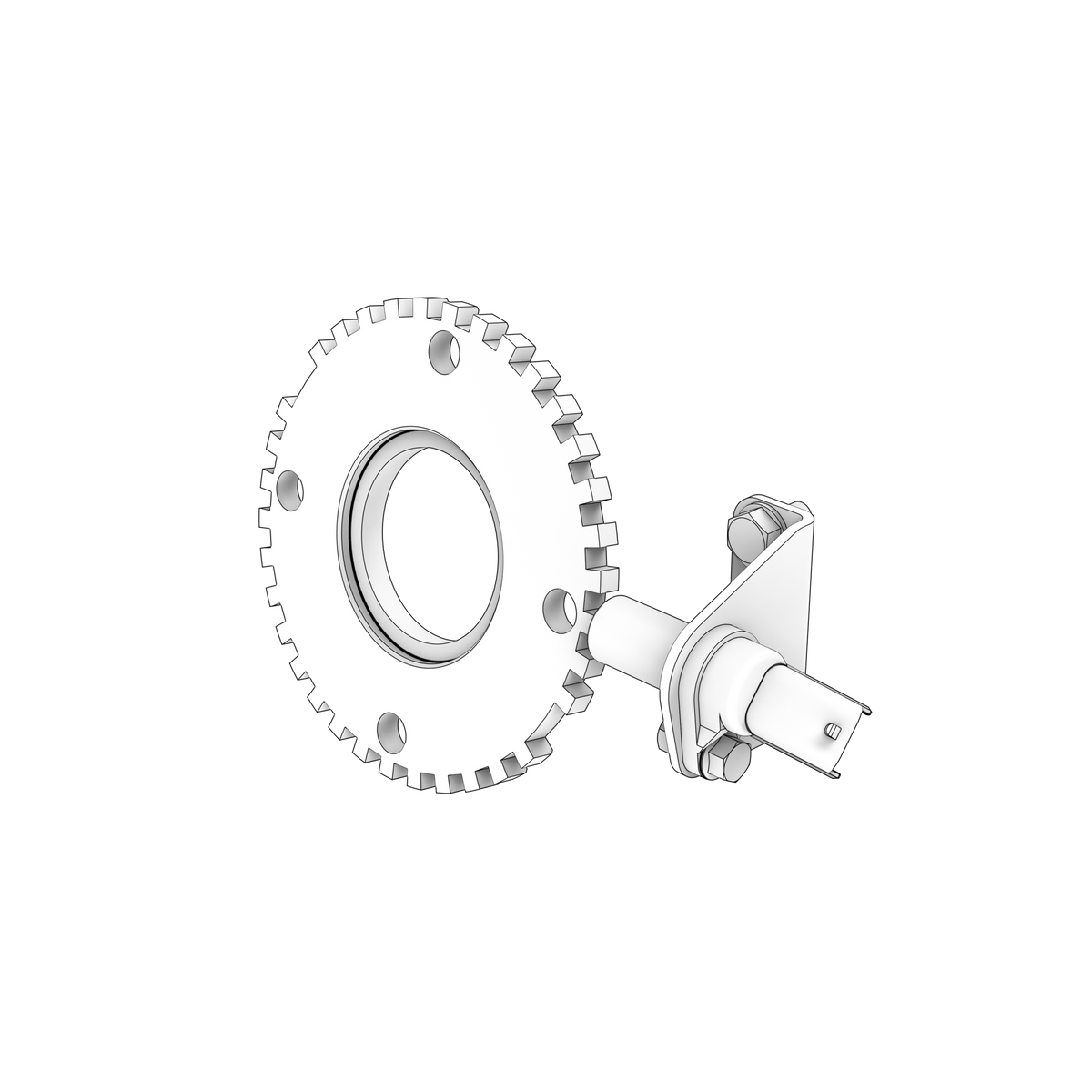

Reads the teeth of the sensor wheel as they pass and sends the control system a pulse for each one, which becomes the engine or shaft speed the system runs on.

⚠️ Common Signs of Failure

• Tachometer needle jumping, dropping out or reading zero
• Stored speed sensor fault and a warning lamp
• Hard starting or a stall as the signal disappears
• Engine held in a reduced power mode by the control system
• Sensor tip found chipped, oil-soaked or packed with metal debris on removal

🛠️ Service Notes

• Check the air gap to the sensor wheel and the condition of the wheel teeth before fitting a new sensor
• Inspect the connector and the harness tail for corrosion - the fault is often in the plug rather than the sensor
• Sensor 23473228 is the alternative part for a different engine set, so confirm the number against the engine

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23473109 → Supersedes 3849338

OEM / Related Numbers

• 3849338 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
