23473228 Engine Speed Sensor | Genuine Volvo Penta Part

🔧 Product Description

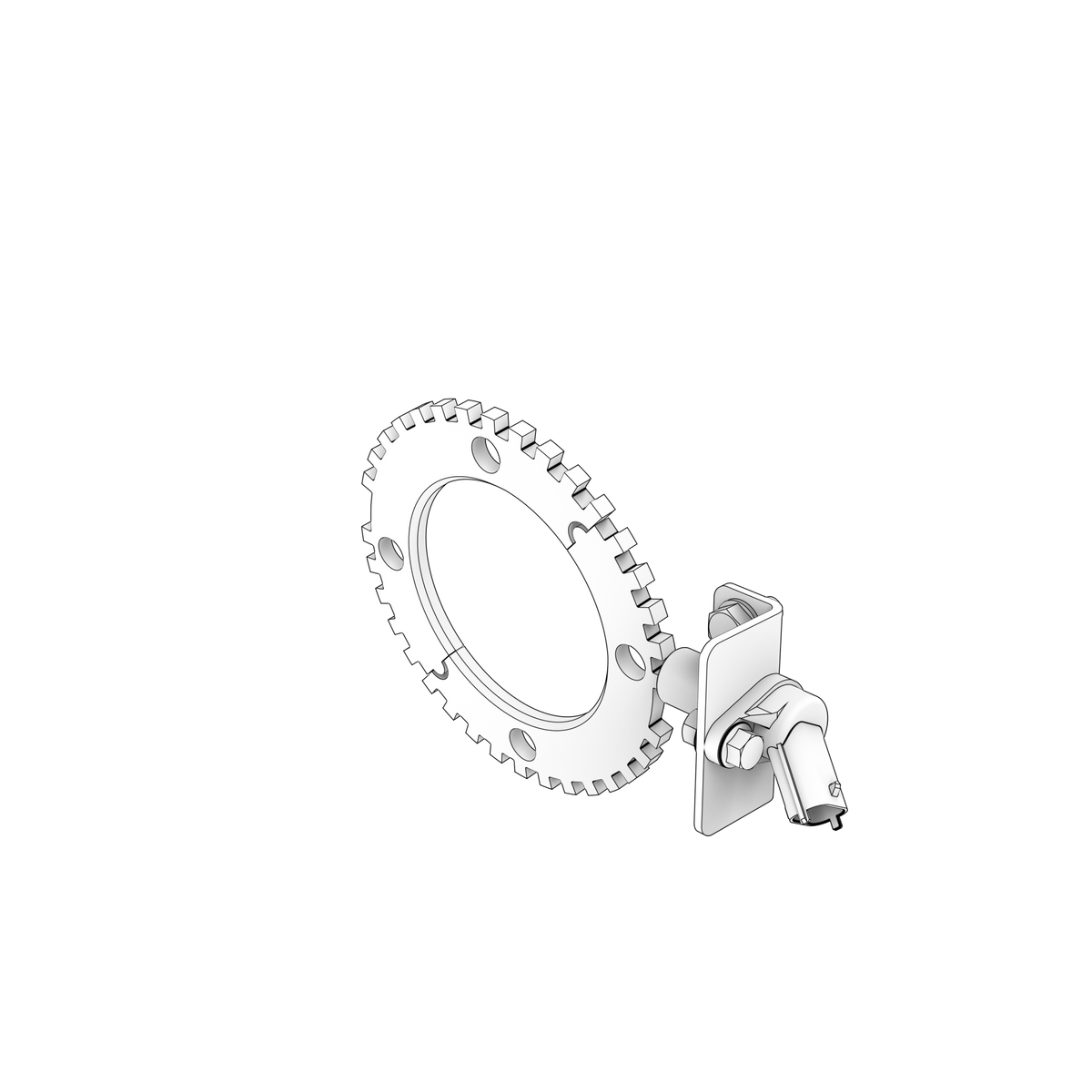

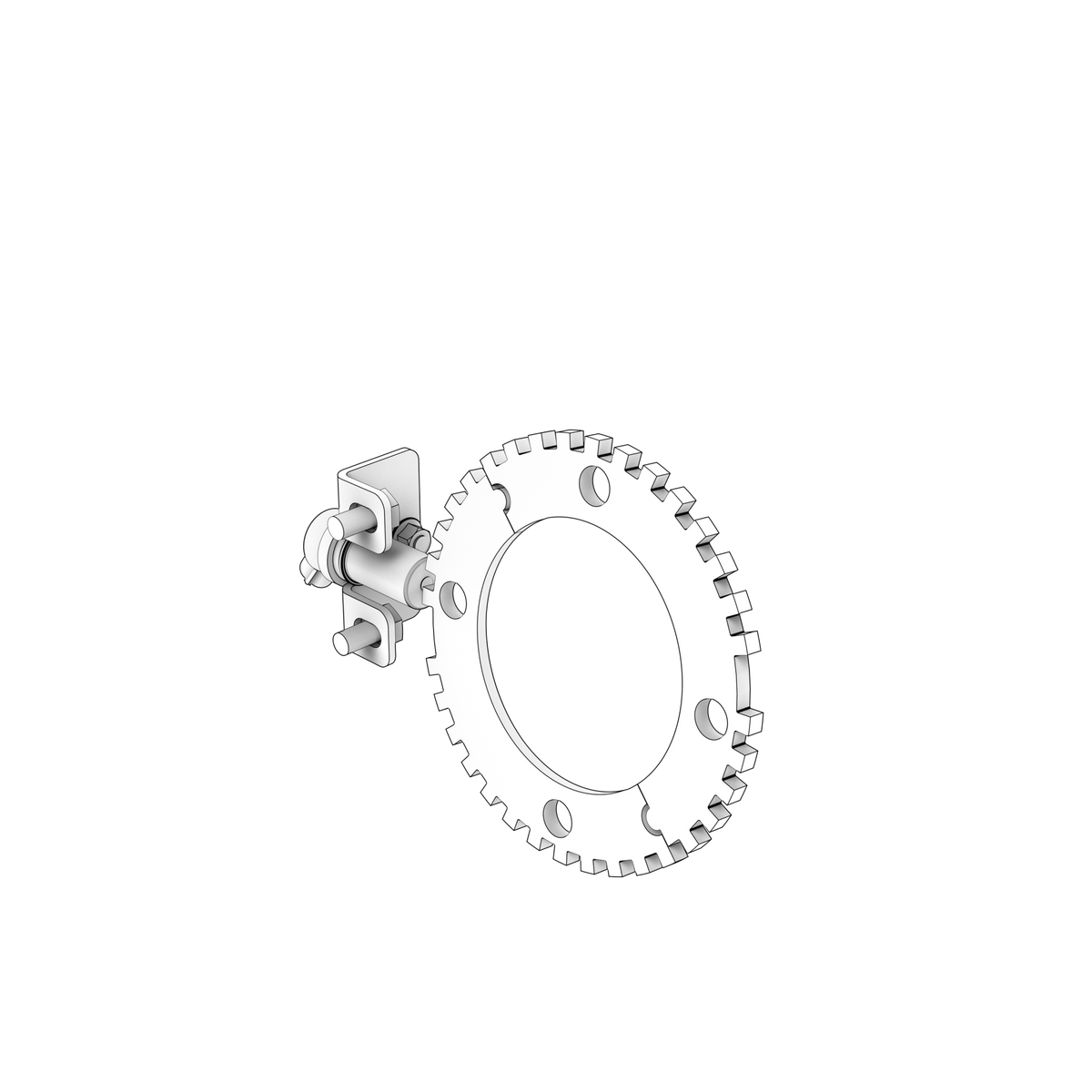

Genuine Volvo Penta engine speed sensor from the Marine Propulsion group, weighing 0.415 kg and listed for eight D series engine applications. It supersedes part number 3849337. Air gap to the sensor wheel governs signal quality. Fits Volvo Penta D4-145I/175I/230I/270I/300I/320I-G and D6-300I/340I/380I-G.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-340I-G
• Volvo Penta D6-380I-G
• Volvo Penta D4-175I-G
• Volvo Penta D4-230I-G
• Volvo Penta D4-270I-G
• Volvo Penta D4-320I-G
• Volvo Penta D4-300I-G
• Volvo Penta D6-300I-G

• Engine Family: D
• HP Range: 175-380 HP

⚙️ Key Features

• Engine speed sensor from the Marine Propulsion group
• 0.415 kg
• Supersedes 3849337
• Listed for eight D series engine applications
• Sensor 23473109 is 0.853 kg over 13 engines
• 2 inch diameter by 1 inch pitch

🔌 Function

Senses the passing teeth of the sensor wheel and converts them into the pulse train the control system reads as speed, so fuelling and protection strategies have something to work from.

⚠️ Common Signs of Failure

• Speed reading unstable or missing at the helm
• Fault code logged against the engine speed signal
• Engine cutting out or refusing to start hot
• Power reduced by the control system as a protective measure
• Sensor face found scored, corroded or coated in magnetic debris

🛠️ Service Notes

• Set and check the air gap to the sensor wheel - too large a gap gives exactly the same symptoms as a dead sensor
• Clean the sealing face and fit a new O-ring or seal if the sensor is a wet-mounted one
• Sensor 23473109 covers the larger fitment list, so order by number rather than by appearance

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23473228 → Supersedes 3849337

OEM / Related Numbers

• 3849337 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
