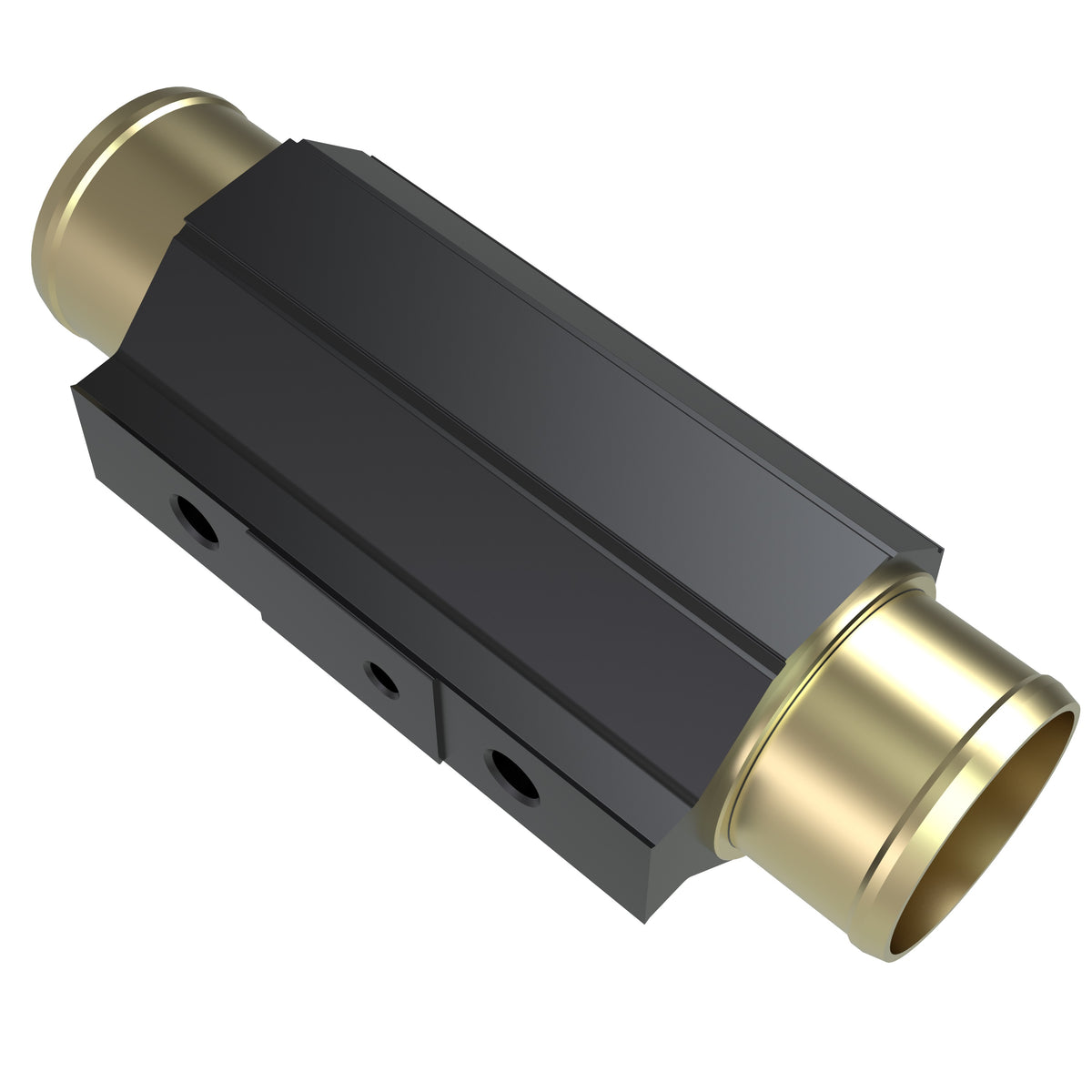

23485230 Fuel Cooler | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta fuel cooler from the Cooling System group, weighing 1.266 kg and listed for 63 D series engine applications. Its shell measures approximately 2 inches by 7 inches. It supersedes part number 40005787.

🚤 Compatibility

• Engine Family: D
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Fuel cooler from the Cooling System group
• Shell approximately 2 inches by 7 inches
• 1.266 kg
• Supersedes 40005787
• Listed for 63 D series engine applications

🔌 Function

Takes heat out of the fuel returning from the injection system before it goes back to the tank, keeping fuel temperature within the range the injection equipment needs.

⚠️ Common Signs of Failure

• Power falling away after a period at full load as fuel temperature rises
• High fuel temperature warning or a stored fault
• Diesel smell in the engine space, or a rainbow film on the bilge water
• Coolant loss or fuel found in the coolant, showing an internal leak
• Core externally corroded, weeping or blocked with debris on removal

🛠️ Service Notes

• Check the fuel and cooling flow through the unit before condemning it - a restricted circuit gives the same high-temperature symptoms
• Renew the seals and unions disturbed on removal and check for leaks under pressure before running

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23485230 → Supersedes 40005787 → Supersedes 3583818

OEM / Related Numbers

• 40005787 earlier number superseded by this part
• 3583818 earlier number superseded by this part

Aftermarket / Verified Equivalents

• MR COOL: MRC3583818
• Marine Energy / MEC: 40005787
• Swedish Lorry Parts: IC-230
• Mr Cool: 40005787
• Aftermarket Marine Italy: 40005787

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F
