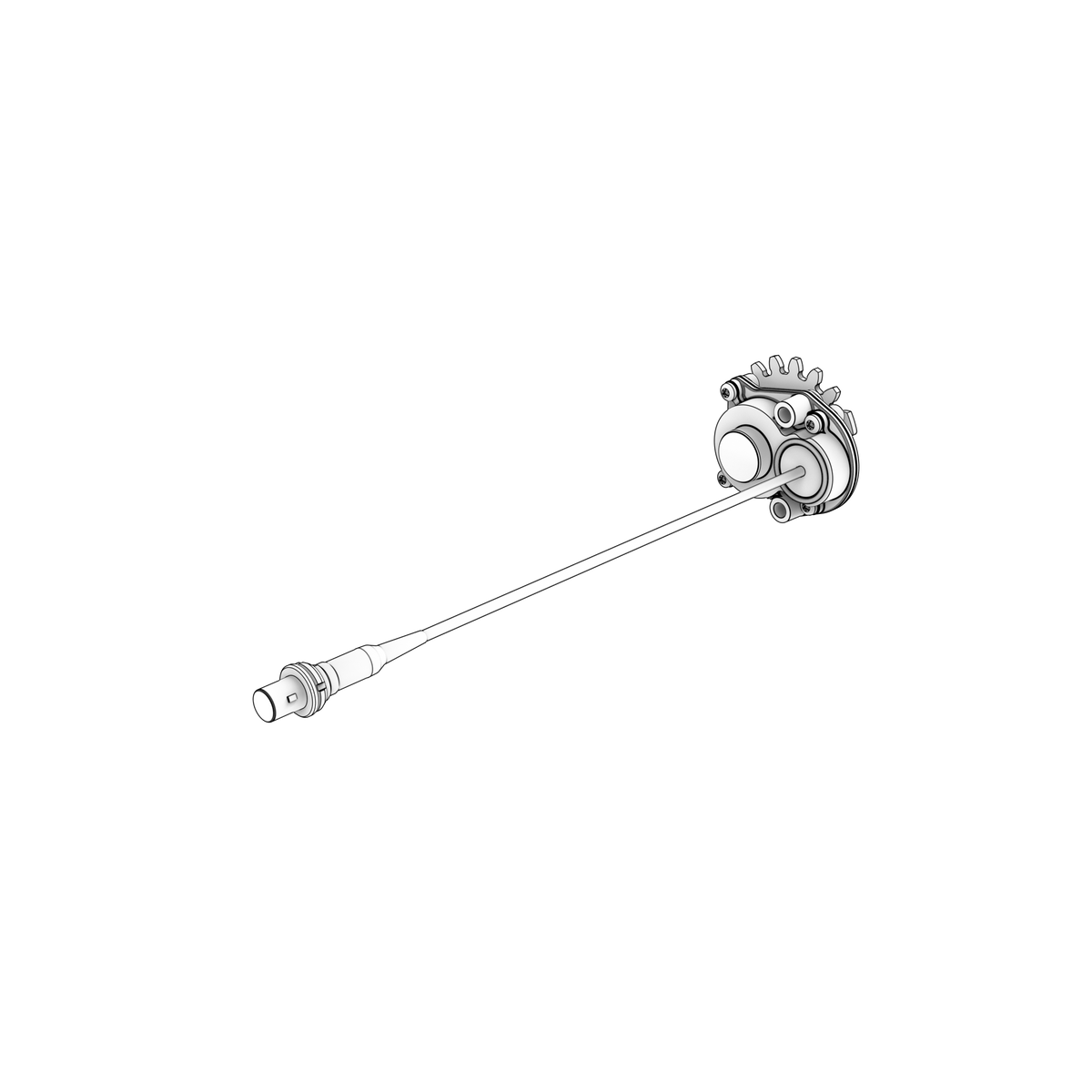

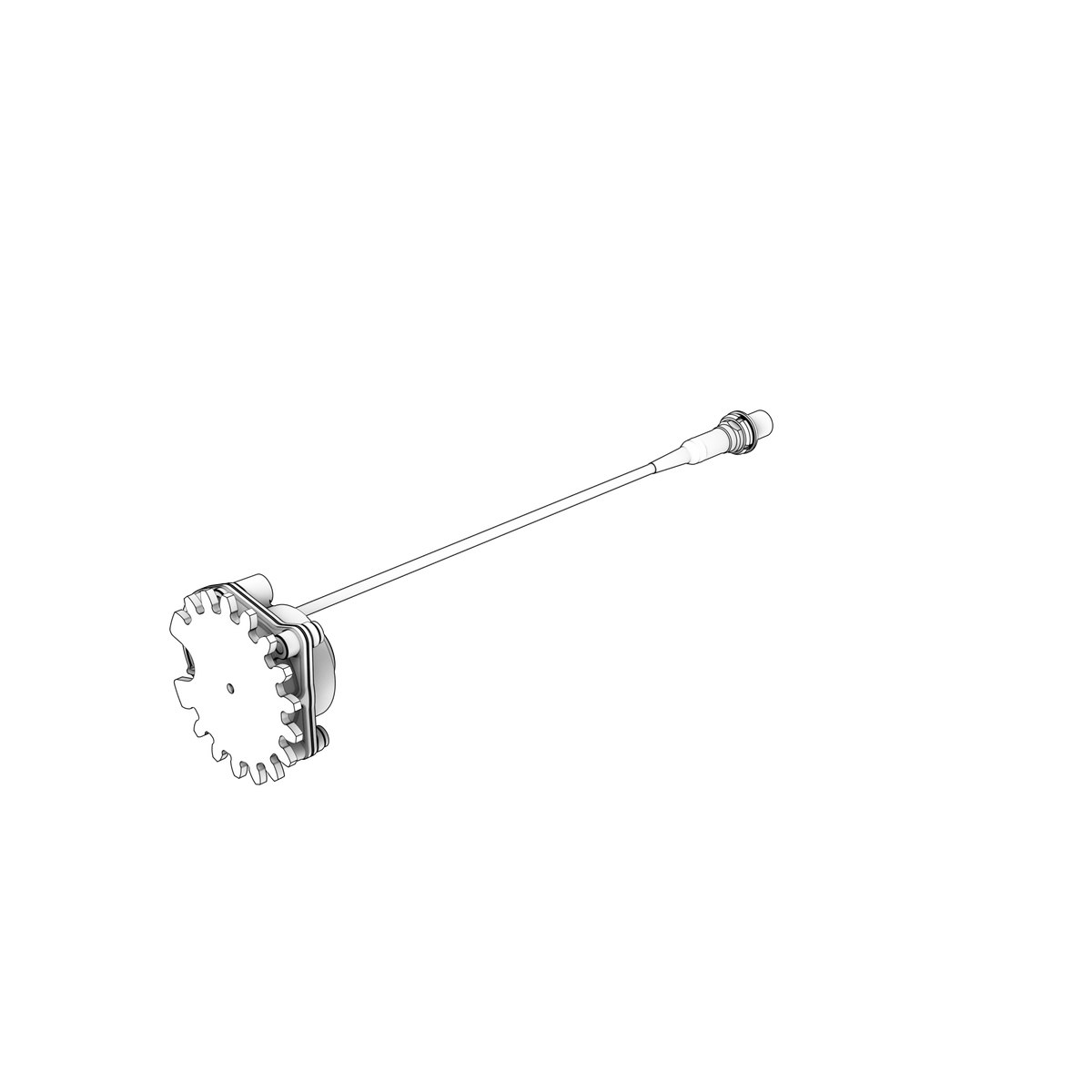

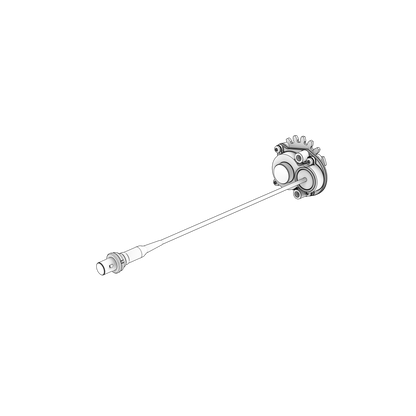

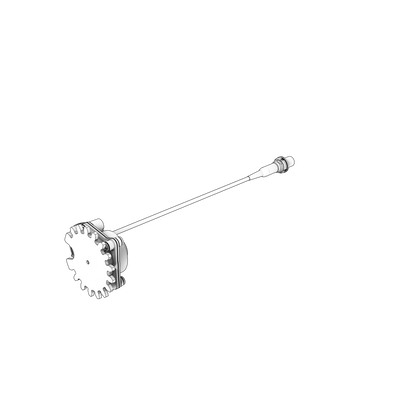

23514509 Sensor | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta resolver sensor with docking connector, weighing 0.304 kg and listed for 17 applications across D series engines and IPS pod drives. The docking connector variant is the selection detail. It supersedes 23131434. Volvo Penta sensor used in the Electrical Inboard Steering / Steering Gear EVC 2.0 system (electric power steering, EVC 2.0), listed in parts views for D4, D6, D8, D11 and D13 marine diesel engines.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-340I-G
• Volvo Penta D6-380I-G
• Volvo Penta D6-440I-G
• Volvo Penta D6-480I-G
• Volvo Penta D6-300D-G
• Volvo Penta D6-340D-G
• Volvo Penta D6-380D-G
• Volvo Penta D6-440D-G
• Volvo Penta D6-480D-G
• Volvo Penta IPS10-A
• Volvo Penta D4-175I-G
• Volvo Penta D4-230I-G
• Volvo Penta D4-270I-G
• Volvo Penta D4-320I-G
• Volvo Penta D4-300I-G
• Volvo Penta D6-300I-G
• Volvo Penta IPS10-B

• Engine Family: D, IPS
• HP Range: 175-480 HP

⚙️ Key Features

• Resolver with docking connector, from the Marine Propulsion group
• 0.304 kg
• Supersedes 23131434
• Listed for 17 applications across D series engines and IPS pod drives
• The docking connector variant is the selection detail

🔌 Function

Reports the angular position of the shaft it reads back to the control system, giving the steering and drive control the position feedback they work from.

⚠️ Common Signs of Failure

• Steering or drive position readings that wander, jump or stick
• Joystick or autopilot control behaving erratically or dropping out
• Position or resolver fault codes logged
• Water or corrosion found in the docking connector
• Sensor body or its cable found damaged where it passes the drive

🛠️ Service Notes

• Check the docking connector and its seal before condemning the resolver - water in the connector gives the same symptoms
• Confirm the connector type on the boat before ordering, as the docking connector version is what separates this part
• Position feedback normally has to be set up again after the sensor is changed, so allow for that at fitting

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23514509 → Supersedes 23131434

OEM / Related Numbers

• 23131434 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
